REQUIRED TOOLS:
11/16" COMBINATION
OR SOCKET WRENCH
15/16" COMBINATION
OR SOCKET WRENCH
3/4" OR 20MM COMBI -
NATION OR SOCKET
WRENCH
CRESCENT WRENCH
(ADJUSTABLE UP TO 1")
P
K
LARGE
V
N
K
M
J
L
E
C2
A
D
C1
T
U
BikeWing-T4
Part No. B01458

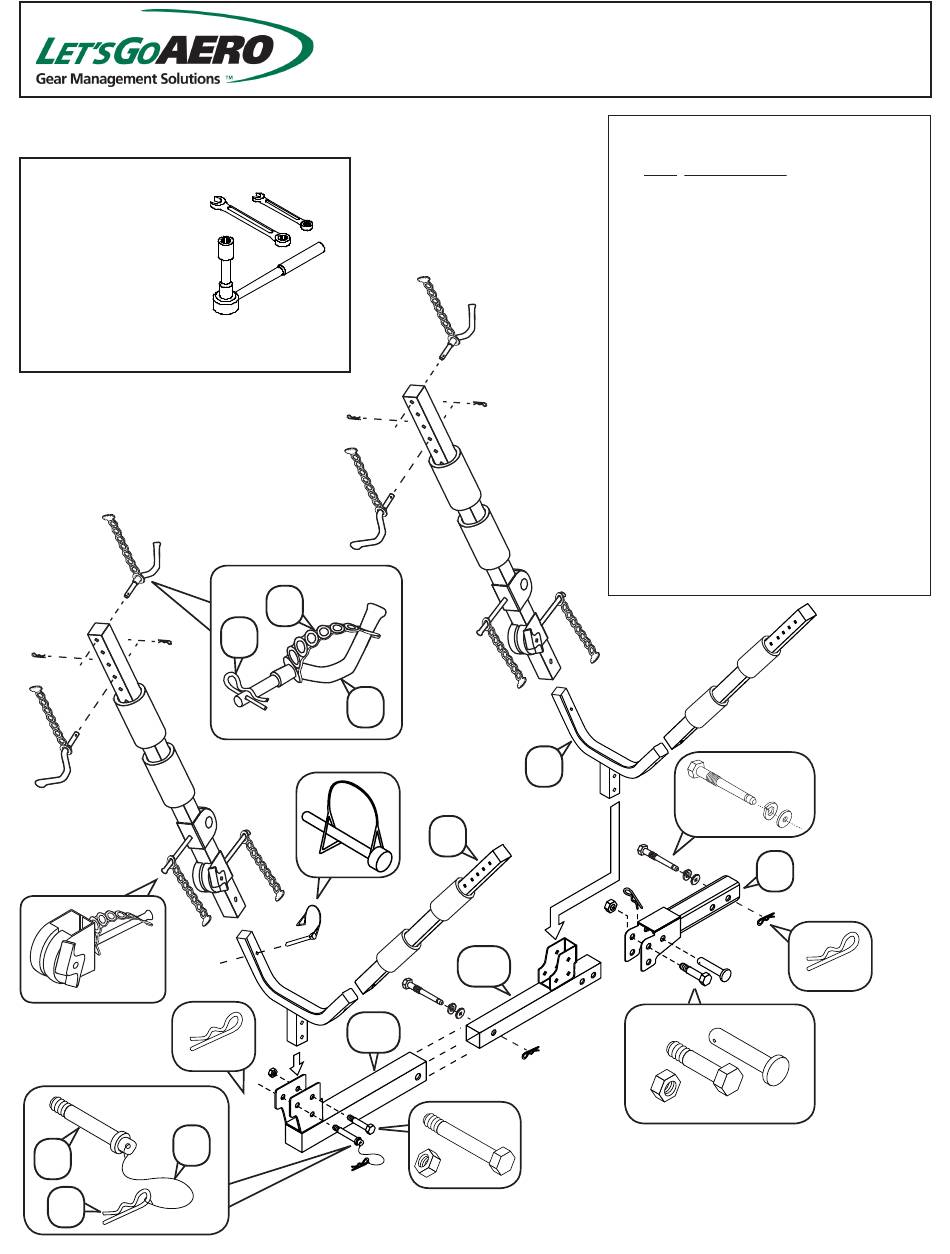

4-Bike Carrier For 2" Hitches
PARTS LIST
QTY. DESCRIPTION
A 2
TILTING V-BASE
B 1
SHANK
C1 1
REAR MAST
C2 1
FORWARD MAST
D 4
WING WITH PADS
E 4
WIRE LOCK PIN
F 2
SILENT HITCH PIN
G 2
SPRING WASHER
H 2
FLAT WASHER
J 8
SMALL RETAINER CLIP
K 5
LARGE RETAINER CLIP
L 8
UPPER WHEEL CRADLE
M 16 RUBBER STRAPS
N 2
TILT POSITION PIN WITH RING
P 8
LOWER WHEEL CRADLE
Q 1
TILT-POSITION PIN
R 1
LARGE SHANK BOLT
S 1
LARGE LOCKING SHANK NUT
T 2
SMALL V-BASE BOLT
U 2
SMALL NUT
V 2
LANYARD
W 2
SPRING NUT
G H
F
B
K
R
S
Q
BWT4MANUAL 052517
LARGE
PAGE 1 OF 6
