What's in the box?
1 - Made in USA HA543
1 - 15V power supply PN PS27s
1 - This owners manual
1 - Love for great audio
Salt Lake City, UT
11/18

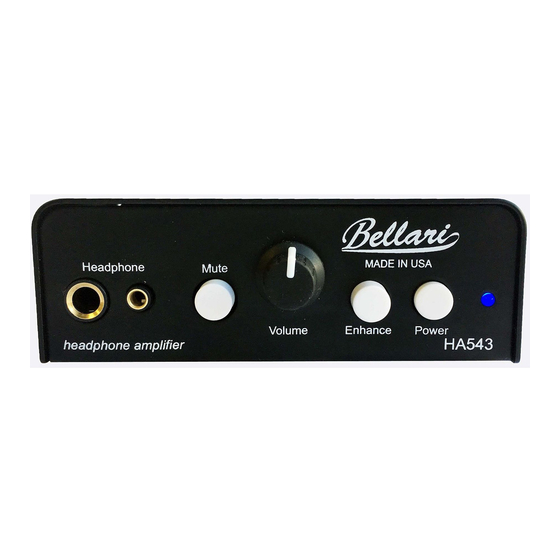

HA543 Headphone Amplifier
SPECIFICATIONS
Input Impedance:
Max Input Level:
Input Connectors:
Outputs:
Max Gain:
Output Power:
Frequency Response:
S/N Ratio:
THD:
IMD:
Phase Shift (In to Out):
Slew Rate:
Crosstalk:
Power
Weight:
Size:
Headphone impedance:
10K Ohms unbalanced - 20K Balanced
+14 dBV
RCA, XLR balanced
1: 1/4" TRS Stereo jacks
1: 1/8" (3.5 mm) TRS Stereo jacks
20 dB
326 mW/side, 652 mW/Channel (62 Ohms)
3 Hz - 59 kHz +/- 3 db
92 dB
<.008%
<.008%
less than 10 deg.
2 V per microsecond
- 75 dB
VDC (Power Supply Included)
1 lb
4.5" x 1.5" x 3"
8 Ohms to 600 Ohms

Connection guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the HA543 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellari HA543

  • Page 1: Connection Guide

    What's in the box? HA543 Headphone Amplifier 1 - Made in USA HA543 SPECIFICATIONS 1 - 15V power supply PN PS27s Input Impedance: 10K Ohms unbalanced - 20K Balanced 1 - This owners manual Max Input Level: +14 dBV 1 - Love for great audio...
  • Page 2 The Enhance takes low quaility headphones that are not very fun to listen to, and makes them much more entertaing to the listener. Switch in is active (it will be obvious) when out the HA543 is 100% completely flat. Adjusts the...
