ROLLS CORPORATION
SALT LAKE CITY, UTAH
5/14

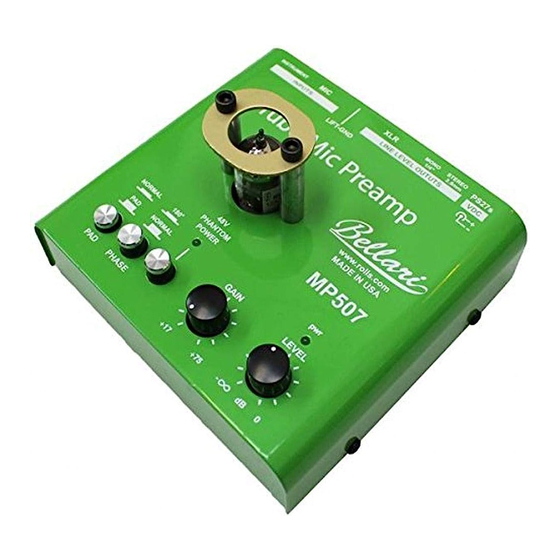

MP507
Tube Mic Preamp
SPECIFICATIONS
Input Impedance:
XLR: 600 Ω (Transformer balanced)
1/4": 1m Ω
Output Impedance:
1/4":100 Ω
THD:
.15%
S/N Ratio:
>110 dB
Maximum Input Level:
-30 dB mic +4 line XLR, -10 dB 1/4"
Maximum Output Level:
+16 dB XLR, +10 dB 1/4"
Pad:
- 37 dB
Frequency Response:
20 - 25kHz +/-3 dB
Dimensions:
3" X 5.5" X 6"
Weight:
1.6 lbs.
Power:
15 VDC
AC Power Req:
100-240VAC
XLR: 100 Ω
Quick Start Guide
Advertisement
Related Manuals for Bellari MP507
Summary of Contents for Bellari MP507
- Page 1 MP507 Tube Mic Preamp SPECIFICATIONS Input Impedance: XLR: 600 Ω (Transformer balanced) 1/4”: 1m Ω Output Impedance: XLR: 100 Ω 1/4”:100 Ω THD: .15% S/N Ratio: >110 dB Maximum Input Level: -30 dB mic +4 line XLR, -10 dB 1/4”...
- Page 2 LEVEL CONTROL: Adjusts the amount of output volume. signal processor. - If you connect the MP507 XLR Output jack to an XLR input on a mixer ---Start out with the GAIN and LEVEL controls set at the middle position. (THAT IS MIC LEVEL), you may be using the mixer channel’s mic pre- This will be the most optimal way to begin the set up process--- amps.
