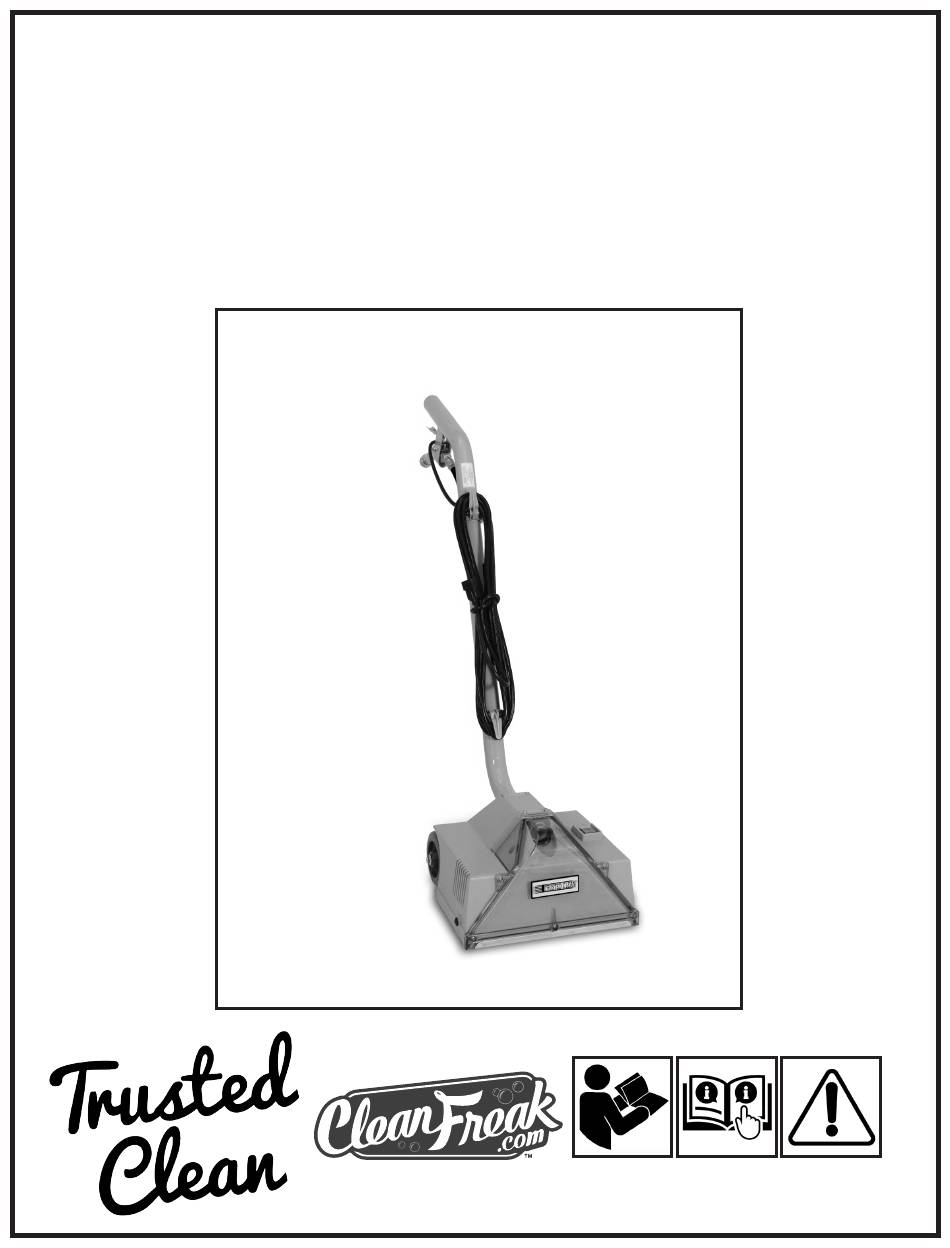

- Page 1 TPL-PH12 PROFESSIONAL POWER WAND FOR CARPET CLEANING OWNER’S/OPERATOR’S MANUAL WWW.CLEANFREAK.COM FOR COMMERCIAL USE ONLY REVISION 10-12-18...
- Page 2 FAILURE TO COMPLY WITH THE FOL- When your package is delivered, check the carton care- LOWING WARNINGS AND INSTRUC- fully for signs of rough handling. If the TPL-PH12 is TIONS WILL VOID THE WARRANTY. damaged, notify the carrier immediately and request an inspection.
-
Page 3: Grounding Instructions
GROUNDING INSTRUCTIONS: DAILY MAINTENANCE: This piece of equipment must be grounded. Should an The TPL-PH12 is engineered and built to require mini- electrical malfunction occur, grounding provides a path mum maintenance. But like any machine, it does require of least resistance for electrical current- reducing the risk some care to keep it in optimum working condition. -
Page 4: Cleaning Tips
3. Connect the male brass fitting on your solution hose in place and all seams are sewn ( or glued) tight. This to the female brass fitting on the TPL-PH12. is your protection against shrinkage. 4. Plug the power cord to an approved wall plug recep- •... - Page 5 TPL-PH12 BREAKDOWN FOR UNITS MANUFACTURED PRIOR TO JUNE 15, 2016. FOR UNITS MANUFACTURED AFTER JUNE 15, 2016 SEE HANDLE RETROFIT ON PAGE 7.
- Page 6 ITEM PART NUMBER QTY. ITEM PART NUMBER QTY. UNAVAILABLE D00356-4 WEIGHT BLOCK UNAVAILABLE. SEE #5 A00091-2 SPRAY TIP UNAVAILABLE 00185-6A WIRING ASSY. H00564-2 WARNING LABEL B00190 4" ZIP TIE G11603-1 PRESSURE VALVE E03428 MOTOR SEAL GASKET UNAVAILABLE G00539 BRUSH MOTOR J00651 HOSE CLAMP A00102 Q.D.
- Page 7 02382A Retrooit kit 1. A00102 Female Q.D. 1/4F to 1/4FP 2.A00168-18 Brass Bushing 1/4M x 1/8F 3. 11527A-PW 1/8 High Pressure Hose Assy 4. G13658 Valve With Bracket 5. A00114B Hex Nipple 1/4MP X1/8MP 6. A12964 1/4 brass coupler 7. D02382 7.
