User Manual

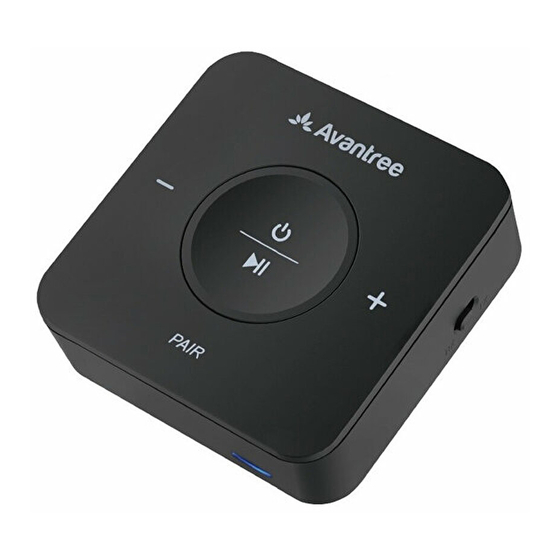

Wireless Audio Adapter
BTTC-417
Overview ···································································································································································· 1
Basic Operation & LED Indication ······················································································································ 1
Works as Bluetooth Transmitter (TX Mode) ··································································································· 2
Pair and connect to Bluetooth headphone/receiver ············································································ 2
Check your TV/Audio Source output options ························································································· 3
Connect the TC417 to your TV/audio source ··························································································· 3
TV with optical audio out ·························································································································· 3
TV with AUX 3.5mm audio out ················································································································ 4
Receiver with 6.35mm Phone Jack at Front ······················································································· 5
Works as Bluetooth Receiver (RX Mode) ········································································································· 6
Tips ··············································································································································································· 7
Troubleshooting ······················································································································································ 8
Advertisement
Table of Contents
Related Manuals for Avantree BTTC-417
Summary of Contents for Avantree BTTC-417
-
Page 1: Table Of Contents
User Manual Wireless Audio Adapter BTTC-417 Overview ···································································································································································· 1 Basic Operation & LED Indication ······················································································································ 1 Works as Bluetooth Transmitter (TX Mode) ··································································································· 2 Pair and connect to Bluetooth headphone/receiver ············································································ 2 Check your TV/Audio Source output options ························································································· 3 Connect the TC417 to your TV/audio source ···························································································... -
Page 2: Overview

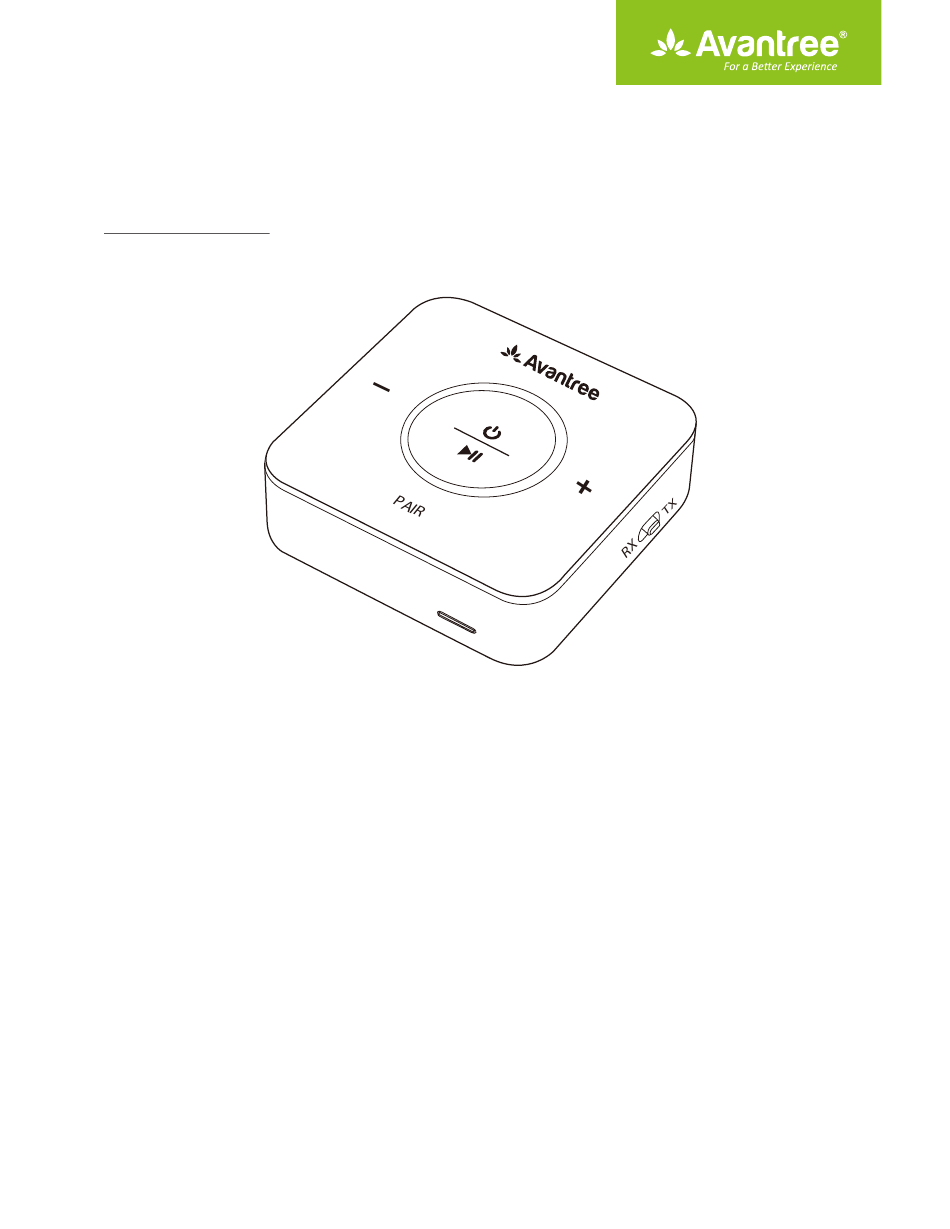

Overview (Multi-function button): Power on / o , play / pause TX/RX mode PAIR SPDIF LED indicator AUX/SPDIF(Optical) switch Charging port SPDIF IN SPDIF OUT DC SV Optical/SPDIF audio out Optical/SPDIF audio in AUX 3.5mm port Basic Operation & LED Indication LED indication Status Operation... -
Page 3: Works As Bluetooth Transmitter (Tx Mode)
Works as Bluetooth Transmitter (TX Mode) Pair and connect to Bluetooth headphone/receiver GREEN 1. Turn on the TC417: Press and hold MFB button for 3 seconds until you see light. 2. Set the TC417 to TX mode: Slide TX/RX switch to “TX” position. 3. -
Page 4: Check Your Tv/Audio Source Output Options
Check your TV/Audio Source output options RCA jacks Other RCA Optical Big Phone AUX/3.5mm labeled jacks (usually Jack "AUDIO OUT" audio IN) Jack Options Natively Supported? Please refer 3.3.1 3.3.2 3.3.3 3.3.4 to Point: Connect the TC417 to your TV/audio source TV with OPTICAL audio out SPDIF IN OPTICAL... -
Page 5: Tv With Aux 3.5Mm Audio Out
Speakers Settings Internal speakers Dolby Digital External speakers Audio Format Headset DTS Neo 2:5 TV with AUX 3.5mm audio out SPDIF IN SPDIF OUT DC SV AUX/3.5 mm audio cable After connecting your audio cable you should be able to hear sound from your headphones; if not: 1) Ensure the AUX/SPDIF (Optical) switch on the TC417 is set to the “AUX”... -
Page 6: Tv With Rca Audio Out (Red/White Ports Labeled "Audio Out")
TV with RCA Audio Out (Red/White ports labeled “AUDIO OUT”) AUDIO OUT SPDIF IN SPDIF OUT DC SV AUDIO OUT 3.5mm to RCA audio cable After connecting the cable you should be able to hear sound from your headphones; if not: 1) Ensure the AUX/SPDIF (Optical) switch on the TC417 is set to the “AUX”... -
Page 7: Works As Bluetooth Receiver (Rx Mode)
4. Connect the TC417 to Bluetooth audio source: Activate Bluetooth on your Bluetooth audio source and search for “Avantree TC417” - tap to connect. Once connected, LED on the TC417 will turn SOLID BLUE. 5. Plug the TC417 to wired speaker or sound bar: Optical audio input, refer to Option A. -
Page 8: Tips
AUX 3.5mm input, refer to Option B. If no sound, ensure AUX / SPDIF (Optical) Switch on TC417 is set to “AUX” position. RCA audio input, refer to Option C. If no sound, ensure AUX / SPDIF (Optical) Switch on TC417 is set to “AUX”... -
Page 9: Troubleshooting
Audio delay All Bluetooth devices will work with this Avantree Bluetooth transmitter. aptX Low Latency compli ant headphones/speakers (e.g. Avantree Audition Pro), will achieve a negligible 40ms delay (laten cy), ideal for watching TV/movies. aptX Low Latency certi ed products: https://www.aptx.com/aptx-low-latency...
