Chapter 2: Mechanical Installation
For exact dimensions of a given module series, please see table "Modules Dimensions" below. Use in conjunction with Figure 8 to determine permitted clamping
locations for a given module series for clamping with clamps.
7. Chapter 2 m ounting method c lamp positions are important – the clamp centerlines refer to mark "D" which must be between 50mm and 200mm from the
end of the module.
8. Figure 2 mounting method, the modules may be mounted using clamps designed for solar modules refer to F igure 8 the modules must be supported along
the length of the long edge and should overlap the array rail by 10mm – 14mm. The module may be clamped only in the permitted clamping area as on the
long edge of the frame. For exact locations on the frame refer to i nFigure 7 conjunction with table "Modules Dimensions" above
9

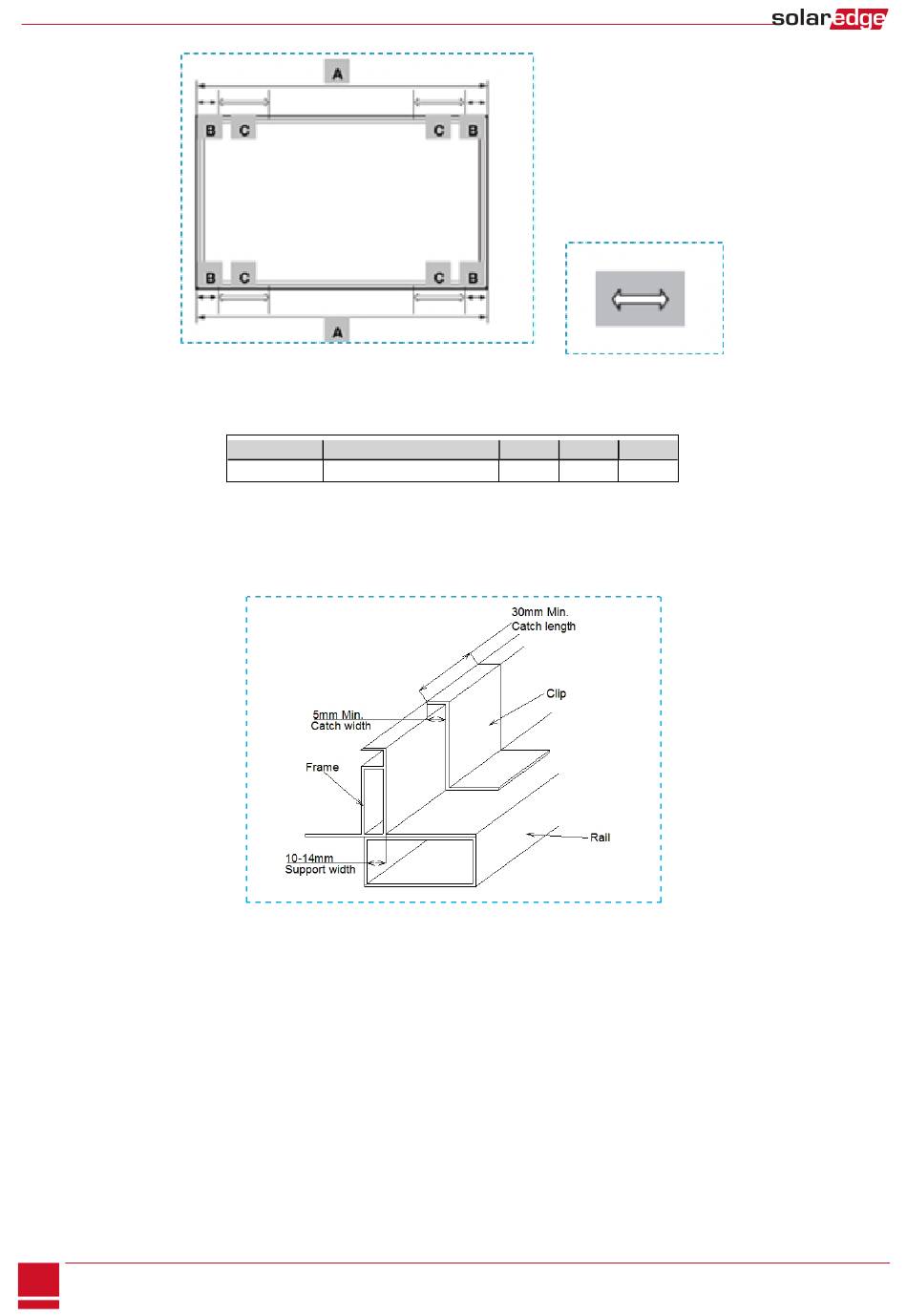

Figure 7: Variable clamping range
Table 1: Modules Dimensions
Module Series Dimension (mm)
PVxxx-60MMJ 1650*992*40
Figure 8: Clamps designed for solar modules
A (mm) B (mm) C (mm)
1650 200 210
