B2X300
ASSEMBLY MANUAL
DIY 3D PRINTER KIT

Advertisement

loading
Need help?

Need help?

Do you have a question about the B2X300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beeverycreative B2X300

Summary of Contents for Beeverycreative B2X300

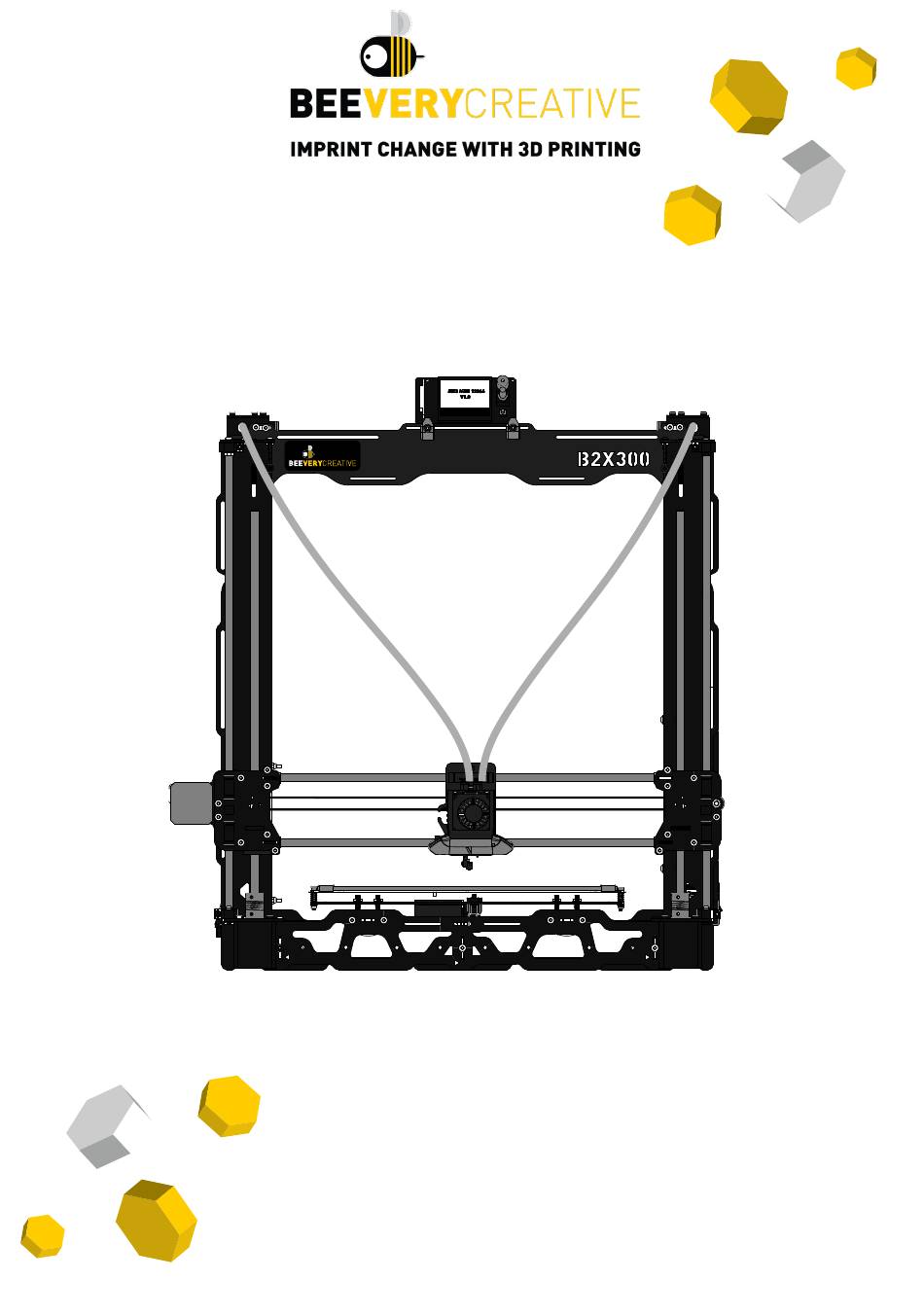

  • Page 1 B2X300 ASSEMBLY MANUAL DIY 3D PRINTER KIT...
  • Page 2 VERSIONS DATE DESCRIPTION PART NUMBERS VERSION Beta-tester version V1.20180503 May 2018 1212200001 to 1212200008 1212300001 to ------------ First release version V2.20181107 November 2018...

  • Page 3: Needed Tools

    NEEDED TOOLS Before you start to build your B2X300 3D printer, check if you have the necessary tools to do it. You will need the following: SET OF HEX KEYS SOFT FACE HAMMER MARKER You will need a set of hex key for...
  • Page 4 Module is in this box. BOX 6 and its cabling, and the Printed Parts too. BOX 6 In this box you have the Power Supply. BOX 0 Main Metal Frame of your B2X300, guides and Threaded Rods. BOX 0...

  • Page 5: How To Read This Manual

    F – Assembling the Electronics..................p.51 We aim to make it simple for you, so we have created areas in this manual to help you build your B2X300 3D printer as well and as easily as you can. This letter and number will help to guide your building process.

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS 50 - 300 microns LAYER RESOLUTION (user defined) 3D PRINTING TECHNOLOGY PLA, ABS, PETG, NYLON, Wood Composits, Metal Composits, HIPLA, PRINTING MATERIAL ABS-PC, HIPS, Carbon Composits 300 x 200 x 300 mm (11.81 x 7.87 x 11.81 in) MAX.

  • Page 7: Safety Information

    SAFETY INFORMATION Even though the B2X300 3D printer was designed to be as safe as possible, we would like to remind you it was conceived to be used by adults. Still, there are safety concerns you must keep in mind:...

  • Page 8: Warranty Information

    Its warranty is assured for the components that are included with the KIT. Six month warranty guaranties the replacement of defective manufactured parts. BEEVERYCREATIVE may request the return of this part in order to improve future de- velopments. Warranty will be voided if: - inappropriate handling during assembly takes place.
  • Page 9 ASSEMBLING THE STRUCTURE...
  • Page 10 ⚠ Remove the pieces from the structure with a regular pliers STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10 SERRATED LOCK WASHER DIN6798J M4 HEX. THIN NUT 1 DIN439 M4 TOOLS RULER...
  • Page 11 STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10 SERRATED LOCK WASHER DIN6798J M4 HEX. THIN NUT 1 DIN439 M4 TOOLS RULER...
  • Page 12 STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10 SERRATED LOCK WASHER DIN6798J M4 HEX. THIN NUT 1 DIN439 M4 TOOLS RULER...
  • Page 13 STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS TOOLS RULER...
  • Page 14 LEFT RIGHT BACK STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10 SERRATED LOCK WASHER DIN6798J M4 HEX. THIN NUT 1 DIN439 M4 TOOLS RULER...
  • Page 15 STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10 SERRATED LOCK WASHER DIN6798J M4 HEX. THIN NUT 1 DIN439 M4 TOOLS RULER...
  • Page 16 MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10 SERRATED LOCK WASHER DIN6798J M4 HEX. THIN NUT 1 DIN439 M4 RULER TOOLS...
  • Page 17 LEFT RIGHT FRONT STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10 SERRATED LOCK WASHER DIN6798J M4 HEX. THIN NUT 1 DIN439 M4 TOOLS RULER...
  • Page 18 Z-AXIS Use the marker to select Y-AXIS motor cable label. LEFT RIGHT FRONT BACK ⚠ Leave Y-AXIS and Z-AXIS motors screws slightly loose. STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS CYL. HEAD SCREW DIN912 M3X6 NEMA17 STEPPER MOTOR Y AXIS PLAIN WASHER DIN125 M3 NEMA17 STEPPER MOTORS Z AXIS TOOLS RULER...
  • Page 19 A.10 STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS FLEX COUPLING TOOLS RULER...
  • Page 20 A.11 0.5mm STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M5X20 SERRATED LOCK WASHER DIN6798J M5 HEX. THIN NUT 1 DIN439 M5 FLAT BELT PULLEY PULLEY GT2 20 TOOTH RULER RULER TOOLS...
  • Page 21 ASSEMBLING THE BUILD PLATE STRUCTURE...
  • Page 22 LEFT SIDE ⚠ Do not over tighten the U clamps. STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS HEX. THIN NUT 1 DIN439 M4 BED RAISER SERRATED LOCK WASHER DIN6798J M4 BELT HOLDER “U” CLAMP M4 ø LINEAR BEARING 8 x25MM BUTTON HEAD SCREW DIN7380 M4X10 TOOLS...
  • Page 23 MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS ✓ ✗ ✗ ø LINEAR GUIDE 8 x 360MM GUIDE SUPPORT RULER RULER TOOLS No tools needed...
  • Page 24 1º 2º STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS HEX. THIN NUT 1 DIN439 M5 SERRATED LOCK WASHER DIN6798J M5 BUTTON HEAD SCREW DIN7380 M5X20 RULER RULER TOOLS...
  • Page 25 1,20m 0,80m Cut rubber belt Push back Y-AXIS motor to stretch the rubber belt and finish tightening the screws. MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS GT2 RUBBER BELT -0,80m BELT HOLDER LOCK HEX. THIN NUT 1 DIN439 M4 BUTTON HEAD SCREW DIN7380 M4X20 RULER RULER TOOLS...
  • Page 26 ~1mm STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS CYL. HEAD SCREW DIN912 M3X20 CYL. HEAD SCREW DIN912 M3X6 PCB HEATED BED 314X214MM BUILD PLATAFORM CLIP BUILD PLATAFORM SPRING HEX. THIN NUT 1 DIN10511 M3 PLAIN WASHER DIN125 M3 TOOLS...

  • Page 27: Assembling The X-Axis

    ASSEMBLING THE X-AXIS...
  • Page 28 STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS X SUPPORT X SUPPORT WITH TRAPEZOIDAL NUT RULER RULER TOOLS No tools needed...
  • Page 29 ⚠ Leave all screws slightly loose. MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS HEX. THIN NUT 1 DIN439 M4 SERRATED LOCK WASHER DIN6798J M4 BUTTON HEAD SCREW DIN7380 M4X20 ø LINEAR BEARING 8 x25MM RULER RULER TOOLS...
  • Page 30 MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS HEX. THIN NUT 1 DIN439 M5 SERRATED LOCK WASHER DIN6798J M5 CYL. HEAD SCREW DIN912 M5X35 FLAT BELT PULLEY RULER RULER TOOLS...
  • Page 31 MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS X SUPPORT RULER TOOLS No tools needed...
  • Page 32 ⚠ Leave all screws slightly loose. MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS HEX. THIN NUT 1 DIN439 M4 X SUPPORT WITH TRAPEZOIDAL NUT SERRATED LOCK WASHER DIN6798J M4 BUTTON HEAD SCREW DIN7380 M4X20 8MM LINEAR BEARING TOOLS RULER...
  • Page 33 Use the marker to label the cable label with X-AXIS selected MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS X AXIS NEMA17 STEPPER MOTOR PLAIN WASHER DIN125 M3 CYL. HEAD SCREW DIN912 M3X6 PULLEY GT2 20 TOOTH RULER RULER TOOLS...
  • Page 34 ⚠ Linear guides should be pushed to the end to fit well enough. MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS ✗ ✓ ✗ ø LINEAR GUIDE 8 x 410MM ø LINEAR BEARING 8 x 45MM RULER RULER TOOLS...
  • Page 35 ASSEMBLING THE X-AXIS TO THE STRUCTURE...
  • Page 36 STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS ✗ ø LINEAR GUIDE 8 x 485MM RULER RULER TOOLS...
  • Page 37 SCREW FACING FRONT AND INWARD BOTTOM SCREW FACING FRONT AND OUTWARD...
  • Page 38 ⚠ Leave TOP guide supports slightly loose. MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS HEX. THIN NUT 1 DIN439 M5 SERRATED LOCK WASHER DIN6798J M5 BUTTON HEAD SCREW DIN7380 M5X20 RULER RULER TOOLS...
  • Page 39 Match TOP with BOTTOM distance between linear guides Adjust it within slot holes Check if X-AXIS flows freely in the linear guides MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS RULER RULER TOOLS...
  • Page 40 Finish tightening the screws MECHANICS STRUCTURE ELECTRONICS PRINTED PARTS RULER RULER TOOLS...
  • Page 41 Screw in the threaded rods into the flex couplings (clock wise rotation) Leave gap between rod and motor shaft Threaded rod must be parallel to the guide, adjust it within motors slot holes. STRUCTURE MECHANICS ELECTRONICS PRINTED PARTS THREADED ROD 400MM RULER TOOLS...
  • Page 42 ASSEMBLING THE EXTRUDER...
  • Page 43 RIGHT ⚠ Do not over tighten the screw PRINTED PARTS CYL. HEAD SCREW DIN912 M3X25 HEX. THIN NUT 1 DIN10511 M3 LINEAR BEARING SUPPORT PLAIN WASHER DIN125 M3...
  • Page 44 PRINTED PARTS CYL. HEAD SCREW DIN912 M3X25 AUTO-CALIBRATION MODULE HEX. THIN NUT 1 DIN10511 M3 PLAIN WASHER DIN125 M3...
  • Page 45 PRINTED PARTS CYL. HEAD SCREW DIN912 M3X20 BOWDEN EXTRUDER...
  • Page 46 Fasten the belt holder slightly, then push the rubber belt with a pliers and finish tightening the screw. Push back X-AXIS MOTOR to stretch the rubber belt and finish tightening the screws. PRINTED PARTS BELT HOLDER LOCK GT2 RUBBER BELT HEX.
  • Page 47 MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS RULER TOOLS...
  • Page 48 PRINTED PARTS CYL. HEAD SCREW DIN912 M3X25 EXTRUDER DRIVER 1 PTFE COUPLER DRIVER BLOCK...
  • Page 49 ⚠ Leave all screws slightly loose. PRINTED PARTS FILAMENT DETECTION MODULE DRIVER SENSOR SPACER CYL. HEAD SCREW DIN912 M3X30 HEX. THIN NUT 1 DIN10511 M3 PLAIN WASHER DIN125 M3...
  • Page 50 Use the marker to label the cable label with E0 selected PRINTED PARTS CYL. HEAD SCREW DIN912 M3X25 EXTRUDER DRIVER 0 PTFE COUPLER DRIVER BLOCK...
  • Page 51 ⚠ Leave all screws slightly loose. PRINTED PARTS FILAMENT DETECTION MODULE CYL. HEAD SCREW DIN912 M3X30 HEX. THIN NUT 1 DIN10511 M3 PLAIN WASHER DIN125 M3...
  • Page 52 E.10 ELECTRONICS PRINTED PARTS BUTTON HEAD SCREW DIN7380 M4X10...
  • Page 53 ASSEMBLING THE ELECTRONICS...
  • Page 54 Use the marker to label both labels of each cables with E0 and E1. ELECTRONICS PRINTED PARTS FILAMENT SENSOR CABLE...
  • Page 55 1º 2º 3º Red line must be on the right side MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS CYL. HEAD SCREW DIN912 M3X20 DISPLAY_SUPPORT HEX. THIN NUT 1 DIN10511 M3 DISPLAY MK3 MINI 12864 CONTROL PANEL CABLE RULER TOOLS...
  • Page 56 ⚠ Check your country’s voltage MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS SERRATED LOCK WASHER DIN6798J M4 BUTTON HEAD SCREW DIN7380 M4X6 POWER SUPPLY 24V 15A 360W...
  • Page 57 MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS PTFE TUBE RULER TOOLS...
  • Page 58 ELECTRONICS MECHANICS STRUCTURE PRINTED PARTS PLAIN WASHER DIN125 M3 PCB SPACER CYL. HEAD SCREW D912 M3X25 MOTHER BOARD MKS GEN HEX. THIN NUT 1 DIN10511 M3...
  • Page 59 MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS GLASS PCB HEATED BED CABLE...
  • Page 60 p.54 p.57 +H-BED- +FAN- +HE0- +HE1- -12/24V+ +FAN- +H-BED- Attention to the labels in the motherboard p.45 p.56 p.31 p.33 p.45 p.16 p.16 p.33 p.52 p.48 p.41 p.57 Z-/J9 p.46 EXP2 EXP1 DUCT p.53 EXP2 EXP1 MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS MOTHERBOARD MKS GEN V1.4...
  • Page 61 +FAN- +HE0- +HE1- +H-BED- -12/24V+ These cables are pre-assembled and go behind the motherboard Z-/J9 EXP2 EXP1 AIR DUCT MECHANICS ELECTRONICS STRUCTURE PRINTED PARTS TRINAMIC DRIVERS FLAT CABLES...
  • Page 62 CONGRATULATIONS! Your B2X300 3D printer is now assembled Final step > Download the User Manual here: www.beeverycreative.com/manuals-tutorials You may now connect your printer to a power socket, with B2X300 power cable, and turn it on. You may use the USB cable provided with the kit to communicate with the computer.
  • Page 63 © 2018 BEEVERYCREATIVE www.beeverycreative.com All rights reserved.
