Instruction
Manual
· 2-1/16" / 52mm outer diameter mounting
· 62 AEMnet channels supported
· Supported devices: Infinity ECU, Series 2 ECU, EMS-
4, 4 Channel UEGO, X-Series UEGO, VDM
· Auto-hides channels from devices that aren't present
· Ability to hide/show channels from devices that are
present
· Peak recall for each channel
· US or Metric / SI display modes
· Black bezel / faceplate supplied; Silver/white available
as optional purchase
· Locking connectors
· Auto-dimming
· Supports vehicle / system voltages up to 16V
P/N 30-0312
X-SERIES GAUGE
AEMnet CAN
STOP! - READ THIS BEFORE INSTALL OR USE!
WARNING:
THIS INSTALLATION MAY REQUIRE WELDING OR INTEGRATION INTO A VEHICLE'S ELECTRICAL SYSTEM. DAMAGE
TO SENSITIVE ELECTRONICS, FIRE, OR EXPLOSION MAY OCCUR IF PROPER PRECAUTION IS NOT TAKEN. IF THERE
IS ANY DOUBT, DO NOT ATTEMPT THE INSTALLATION AND CONSULT A PROFESSIONAL.
NOTE: IT IS THE RESPONSIBILITY OF THE ENGINE TUNER TO ULTIMATELY CONFIRM THE CALIBRATION USE FOR
ANY PARTICULAR ENGINE IS SAFE FOR ITS INTENDED USE. AEM HOLDS NO RESPONSIBILITY FOR ANY ENGINE
DAMAGE THAT RESULTS FROM THE MISUSE OF THIS PRODUCT.
Features
PN
10-0312
INST, X-SERIES AEMNET CAN GAUGE
35-0312
GAUGE ASSY, X-SERIES AEMNET CAN GAUGE
35-8618
35-8614
35-8617
RUBBER BAND, X-SERIES GAUGE
35-3437
CABLE, X-SERIES GAUGE PWR/IO CAN
*OPTIONAL* ACCESSORIES
PN
30-0312-
ACC
FACEPLATE, X-SERIES AEMNET, WHITE

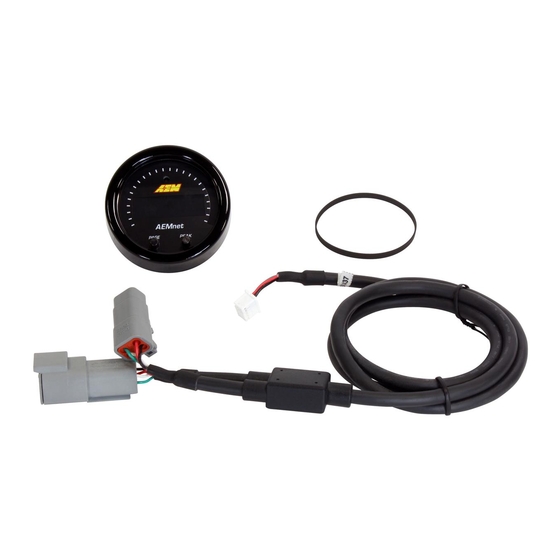

KIT CONTENTS
Description
NUT, KNURLED, M4x0.7 (2)
BRACKET, X-SERIES GAUGE
Description
BEZEL, X-SERIES SILVER
Advertisement
Table of Contents
Related Manuals for AEM X-SERIES
Summary of Contents for AEM X-SERIES
- Page 1 NOTE: IT IS THE RESPONSIBILITY OF THE ENGINE TUNER TO ULTIMATELY CONFIRM THE CALIBRATION USE FOR ANY PARTICULAR ENGINE IS SAFE FOR ITS INTENDED USE. AEM HOLDS NO RESPONSIBILITY FOR ANY ENGINE DAMAGE THAT RESULTS FROM THE MISUSE OF THIS PRODUCT.
- Page 2 30-0312 - AEMnet CAN Wiring Installation Diagram Connector A - Power / IO Color Description WHITE AEMnet- / CANL GREEN AEMnet+ / CANH Switched 12V Power BLACK Power Ground 5 - 10...
-
Page 3: Operation
Operation The PAGE button may be depressed to scroll through the available AEMnet channels; an abbreviation of each channel name will be briefly displayed after each button press. The inner numeric LEDs and outer ring LED display the currently selected channel reading. - Page 4 The gauge kit is supplied assembled with a black faceplate and black bezel. An accessory kit is available (for purchase through AEM dealers) which includes an optional silver bezel and white faceplate. Please reference the Optional Accessories section earlier in the document for the appropriate part numbers.
- Page 5 Gauge Disassembly STEP 1 - Remove the three assembly screws (8) using a #1 Phillips head screwdriver. Separate the bezel (2) and cup (7) from the rest of the STEP 2 - Separate the PCB (11) from the remaining components assembly.
-
Page 6: Gauge Assembly
Gauge Assembly STEP 1 - Place the light guide (5) on a flat surface (black side up) and STEP 2 - Stack the diffuser (4), faceplate (3), and lens (1) in order, over slide the buttons (6) into the slots the buttons, and on to the light guide STEP 3 - Reassemble the PCB and display stack with the bezel, making STEP 4 - Reassemble and tighten screws to 2 in-lb (previously... -
Page 7: Gauge Installation
Installation w ithout bracket, using rubber band A 2-1/6" (52mm) hole is required to mount the X-Series gauge. A bracket and thumbscrews are provided to facilitate installation into a panel or gauge pod. In some cases, the gauge cup may be pushed into a mounting hole causing an interference fit strong enough to retain the gauge;... -
Page 8: Faq & Troubleshooting
EMS Series 2 / EMS-4 / Infinity InJ.d Primary Inj Duty % Infinity EMS LoAd Load EMS Series 2 / EMS-4 o2-1 Lambda 1 X-Series UEGO devices o2-2 Lambda 2 X-Series UEGO devices o2-3 Lambda 3 X-Series UEGO devices o2-4 Lambda 4... -
Page 9: Specifications
Specifications Dimensions diameter (bezel) 2.40 diameter (cup) 2-1/16 depth (incl. bezel) 0.825 depth (cup only) 0.200 Supply Voltage Supply Current (13.8V) nominal 50.0 Operating Temperature -4 / -20 degF / degC max (16V Supply) 185 / 85 degF / degC Learn more about custom gauges on our website.
