Instruction
Manual
· 2-1/16" / 52mm outer diameter mounting
· Only model year 2008 and newer vehicles (CAN bus
based OBD) supported
· 41 OBD-II parameters (PIDs) supported
· Read and clear Diagnostic Trouble Codes (DTCs)
· US or Metric / SI display modes
· Black bezel / faceplate supplied; Silver/white available
as optional purchase
· Locking connectors
· Auto-dimming
· Supports vehicle/system voltages up to 16V
P/N 30-0311

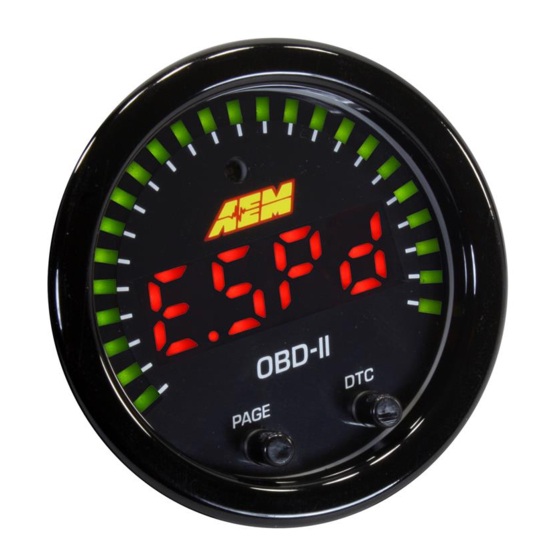

X-SERIES GAUGE
STOP! - READ THIS BEFORE INSTALL OR USE!
WARNING:
THIS INSTALLATION MAY REQUIRE WELDING OR INTEGRATION INTO A VEHICLE'S ELECTRICAL SYSTEM. DAMAGE
TO SENSITIVE ELECTRONICS, FIRE, OR EXPLOSION MAY OCCUR IF PROPER PRECAUTION IS NOT TAKEN. IF THERE
IS ANY DOUBT, DO NOT ATTEMPT THE INSTALLATION AND CONSULT A PROFESSIONAL.
NOTE: IT IS THE RESPONSIBILITY OF THE ENGINE TUNER TO ULTIMATELY CONFIRM THE CALIBRATION USE FOR
ANY PARTICULAR ENGINE IS SAFE FOR ITS INTENDED USE. AEM HOLDS NO RESPONSIBILITY FOR ANY ENGINE
DAMAGE THAT RESULTS FROM THE MISUSE OF THIS PRODUCT.
Features
OBD-II
PN
10-0311
35-0311
35-8618
35-8614
35-8617
35-3458
CABLE, X-SERIES GAUGE PWR/IO OBD2 V2
PN
30-0311-
ACC
KIT CONTENTS
Description
INST, X-SERIES OBD2 GAUGE
GAUGE ASSY, X-SERIES OBD2 GAUGE
NUT, KNURLED, M4x0.7 (2)
BRACKET, X-SERIES GAUGE
RUBBER BAND, X-SERIES GAUGE
*OPTIONAL* ACCESSORIES
Description
BEZEL, X-SERIES SILVER
FACEPLATE, X-SERIES OBD2, WHITE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AEM X-SERIES

Summary of Contents for AEM X-SERIES

  • Page 1 NOTE: IT IS THE RESPONSIBILITY OF THE ENGINE TUNER TO ULTIMATELY CONFIRM THE CALIBRATION USE FOR ANY PARTICULAR ENGINE IS SAFE FOR ITS INTENDED USE. AEM HOLDS NO RESPONSIBILITY FOR ANY ENGINE DAMAGE THAT RESULTS FROM THE MISUSE OF THIS PRODUCT.
  • Page 2 The 12V power available at your vehicle's OBD2 port is a permanent "always on" 12V -- no key switched power is available at this port. The AEM X-Series OBD2 Gauge uses a specific algorithm to detect when the key is on and the engine is started to wake up or go to sleep down, conserving power.

  • Page 3: Operation

    30-0311 - OBD-II Operation View Parameter IDs (PIDs) Depress the PAGE button to scroll through the available OBD-II PIDs/parameters; an abbreviation of each parameter name will be briefly displayed after each button press. The inner numeric LEDs and outer ring LED display the currently selected parameter reading.
  • Page 4 The gauge kit is supplied assembled with a black faceplate and black bezel. An accessory kit is available (for purchase through AEM dealers) which includes an optional silver bezel and white faceplate. Please reference the Optional Accessories section earlier in the document for the appropriate part numbers.
  • Page 5 30-0311 - OBD-II Gauge Disassembly STEP 1 - Remove the three assembly screws (8) using a #1 Phillips head screwdriver. Separate the bezel (2) and cup (7) from the rest of the STEP 2 - Separate the PCB (11) from the remaining components assembly.

  • Page 6: Gauge Assembly

    30-0311 - OBD-II Gauge Assembly STEP 1 - Place the light guide (5) on a flat surface (black side up) and STEP 2 - Stack the diffuser (4), faceplate (3), and lens (1) in order, over slide the buttons (6) into the slots the buttons, and on to the light guide STEP 3 - Reassemble the PCB and display stack with the bezel, making STEP 4 - Reassemble and tighten screws to 2 in-lb (previously...

  • Page 7: Gauge Installation

    Installation w ithout bracket, using rubber band A 2-1/6" (52mm) hole is required to mount the X-Series gauge. A bracket and thumbscrews are provided to facilitate installation into a panel or gauge pod. In some cases, the gauge cup may be pushed into a mounting hole causing an interference fit strong enough to retain the gauge;...

  • Page 8: Faq & Troubleshooting

    Your vehicle may not support every PID that is supported by the AEM OBD-II gauge. Upon power-up, the gauge will query the vehicle for a list of the available PIDs and display the ones which are supported by the gauge. If the PID is not listed when scrolling through the list using the PAGE button, then the PID is not supported by your vehicle.

  • Page 9: Specifications

    The 12V power available at your vehicle's OBD2 port is a permanent "always on" 12V, no key switched power is available at this port. The AEM X-Series OBD2 Gauge uses a specific algorithm to detect when the key is on and the engine is started to boot up or shut down, conserving power.
