Operating instructions

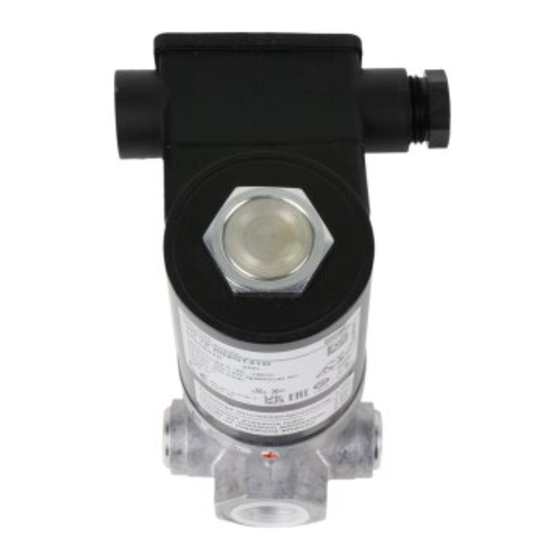

Solenoid valve for gas
VG 0/5 - VG 65
Contents
Contents
Solenoid valve for gas VG 0/5 - VG 65 . . . .
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the usage . . . . . . . . . . . . . . . . . . . . .
Type code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part designations . . . . . . . . . . . . . . . . . . . . . . . . 2
Type label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tightness test . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting the flow rate . . . . . . . . . . . . . . . . . . . . . . 4
Setting the start gas rate . . . . . . . . . . . . . . . . . . 4
Replacing the solenoid actuator . . . . . . . . . . 5
Replacing a defective damping unit. . . . . . . . 5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Assistance in the event of malfunction . . . . . 6
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 7
Designed lifetime . . . . . . . . . . . . . . . . . . . . . . . . 7
Logistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Declaration of conformity . . . . . . . . . . . . . . . . . . 8
Approval for Australia . . . . . . . . . . . . . . . . . . . . . 8
Eurasian Customs Union . . . . . . . . . . . . . . . . . . 8
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
E
DK
S
N
P
GR
www.docuthek.com
Safety
Safety
Please read and keep in a safe place
Please read through these instructions
carefully before installing or operating. Following the
installation, pass the instructions on to the opera-
tor. This unit must be installed and commissioned
in accordance with the regulations and standards
in force. These instructions can also be found at
www.docuthek.com.
Explanation of symbols
• , , , ... = Action
▷
= Instruction
Liability
We will not be held liable for damage resulting from
non-observance of the instructions and non-com-
pliant use.
Safety instructions
Information that is relevant for safety is indicated in
the instructions as follows:
DANGER
Indicates potentially fatal situations.
WARNING
Indicates possible danger to life and limb.
CAUTION
Indicates possible material damage.
All interventions may only be carried out by qualified
gas technicians. Electrical interventions may only be
carried out by qualified electricians.
Conversion, spare parts
All technical changes are prohibited. Only use OEM
spare parts.
Changes to edition 09.
The following chapters have been changed:
-
Separate operating instructions for VG 6 - 15/10,
see www.docuthek.com → Kromschröder →
Products → 03 Valves and butterfly valves →
Solenoid valves for gas VG → VG 6 - VG 15/10
GB-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kromschroder VG 10/15
Summary of Contents for Kromschroder VG 10/15
-
Page 1: Table Of Contents
Safety Safety 4440 Please read and keep in a safe place www.docuthek.com Please read through these instructions Operating instructions carefully before installing or operating. Following the Solenoid valve for gas installation, pass the instructions on to the opera- VG 0/5 – VG 65 tor. -
Page 2: Checking The Usage
▷ Use approved sealing material only. ▷ Use a suitable spanner. ▷ Ensure that there is sufficient space for installa- tion and adjustment. ▷ On VG 10/15 – 40/32, the inlet pressure p be measured at the pressure test point Housing ... - Page 3 ▷ On VG 40 – 65, the inlet pressure p and the Wiring outlet pressure p can be measured at the re- spective pressure test point. WARNING Attention! Please observe the following to ensure that no damage occurs: – Electric shocks can be fatal! Before working on possible live components, ensure the unit is disconnected from the power supply.
-
Page 4: Tightness Test
VG with socket 9 After 60 seconds, increase the text pressure to 1 = N (–), 2 = LV1 ≤ 1.5 x p u max. ≤ 1,5 x p u max ▷ Tightness OK: open the pipeline. ▷ Unit leaking: remove the VG and return it to the manufacturer. -
Page 5: Replacing The Solenoid Actuator
Replacing the solenoid actuator ▷ We recommend replacing the entire actuator set when replacing the solenoid actuator. ▷ The actuator set is available separately as a spare part. Disconnect the system from the electrical power supply. Shut off the gas supply. VG..N ... -
Page 6: Maintenance
Follow the reverse procedure when reassembling. Maintenance Checking tightness and function ▷ When the solenoid actuator is removed, the CAUTION gas-filled space in the VG is opened. Therefore, In order to ensure smooth operation: check the check for tightness once the actuator has been tightness and function of the VG every year, or every reinstalled. -
Page 7: Technical Data
Electrical connection of VG 40 – 65: Designed lifetime plug with socket to EN 175301-803, Time Switching Type cable gland: PG 13.5, cycles [years] connection terminal: 2.5 mm VG 10/15 – 25 200,000 Enclosure: IP 54. VG 40/32 100,000 VG 40 – 80 100,000 VG 100 50,000 GB-7... -
Page 8: Logistics
You can find further explanations in the applicable The relevant product corresponds to the type tested rules and regulations and on the afecor website by the notified body 0063. (www.afecor.org). The production is subject to the surveillance proce- This procedure applies to heating systems. For dure pursuant to Directive 2009/142/EC according thermoprocessing equipment, observe local regu- to annex II, paragraph 3.
