ULTRASUITE ARRAY
INSTALLATION INSTRUCTIONS

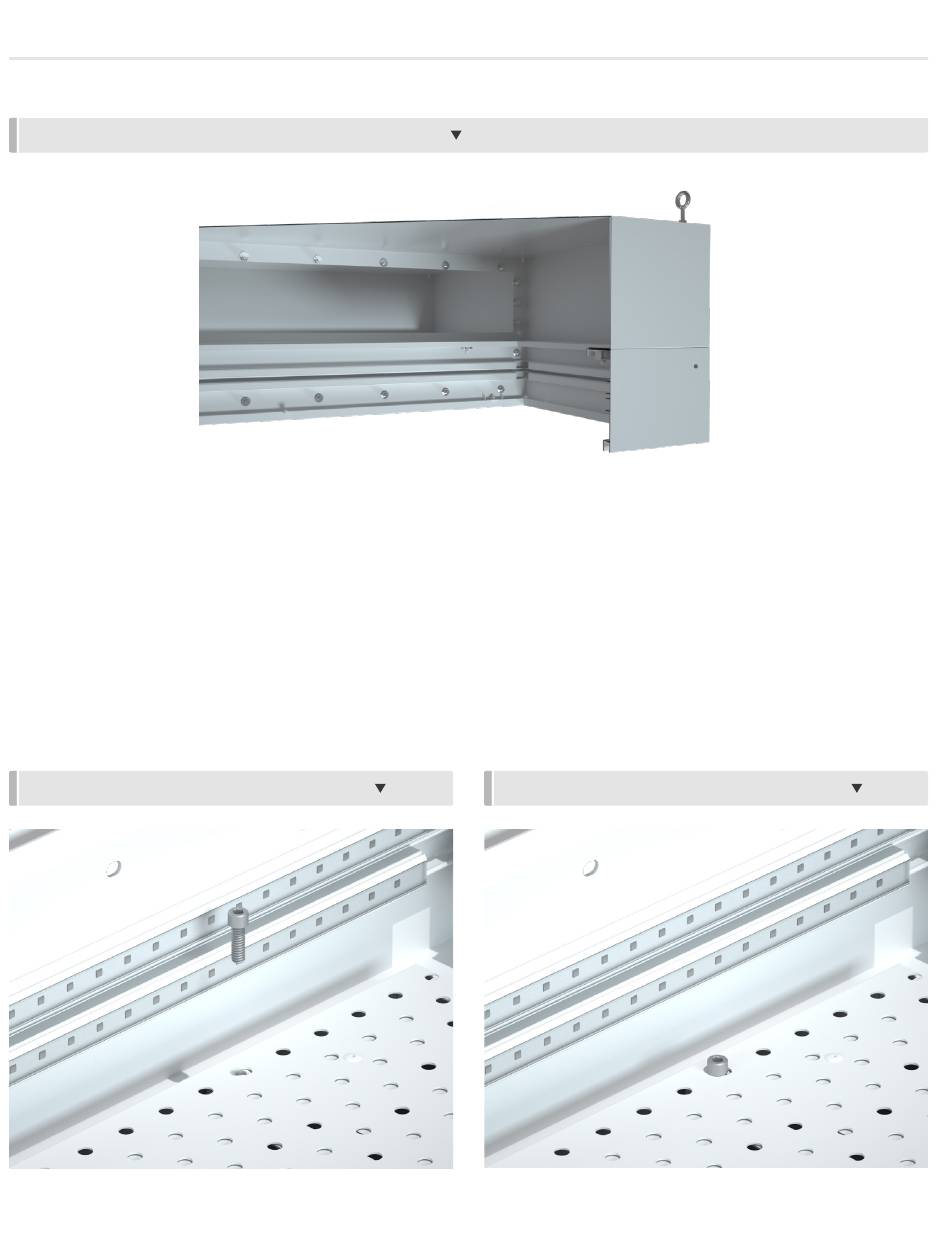

FIGURE 14: SECTION VIEW OF MODULES BOLTED TOGETHER
Step 10: Repeat step 9 until all sections are installed.
Step 11: Pull down the perimeter modules to tension the wires, and adjust the wire to minimize settling and moving of the plenum
assembly once the damper and face are installed. Ensure that modules are tight to the adjacent ceiling system or drywall (if
installed/applicable), and/or at the correct height and that there is no slack in the hanger wires.
NOTE:
Perimeter drywall must be installed slightly above the height of the rest of the ceiling, as it needs to rest on the backside of
the full perimeter tee.
Step 12: Tighten hanger wire by twisting and securing per ASTM C636 and/or applicable local codes.
Step 13: Re-install damper assembly and tighten the damper mounting screws.
FIGURE 15: REPLACE DAMPER APERTURE PLATE
FIGURE 16: TIGHTEN DAMPER MOUNTING SCREW
priceindustries.com | ULTRASUITE ARRAY - Manual
7
