ULTRASUITE ARRAY
INSTALLATION INSTRUCTIONS
Luminaire Mounting and Installation
Step 1: Snap chalk line on the floor to outline locations and sizes of module assembly sections.
Step 2: Unpack module assembly sections and lay them out on the floor as per the job specific submittal package and determine
remote driver cabinet mounting location. Ensure adequate wire length is available to wire to the remote cabinet. Refer to page 9
for remote driver cabinet mounting and installation and page 10 for electrical connections.
NOTE:
Ensure floor surface is clean and free of debris that could damage the product finish.
NOTE:
Ensure that adjacent module assembly sections have mated inlets in the correct locations (fig. 4).

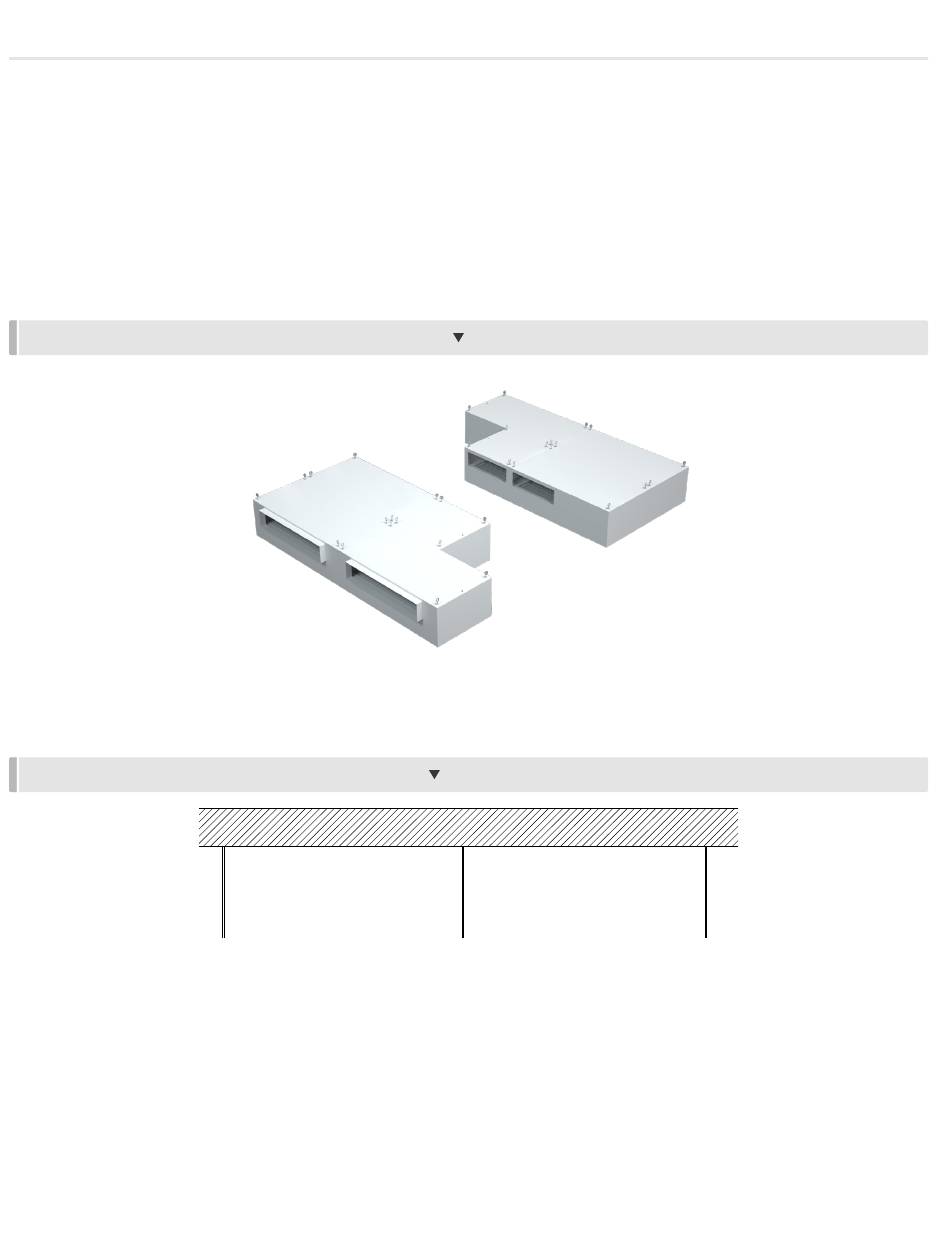

FIGURE 4: ENSURE MATED INLETS ARE ALIGNED CORRECTLY
Step 3: Attach lengths of pre-stressed 12 gauge suspension wire to the slab or structural steel (fig. 5) above the ceiling according
to ASTM C636, and any applicable local codes, ensuring that a minimum of four (4) suspensions points are used per module.
FIGURE 5: SUSPENSION WIRE ATTACHED TO STRUCTURE
NOTE:
Ensure that the perimeter drywall (if installed) and other equipment are installed at the correct heights using a laser level.
Step 4: Extend hanger wires 6 in. below the top of the plenum (refer to job specific submittal for plenum height) and snip to length
as required.
priceindustries.com | ULTRASUITE ARRAY - Manual
3
