Net Toner and Probe Kit
User Manual
Model 515566
intellinetnetwork.com
INT-515566_UM-1018_REV-5.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 515566 and is the answer not in the manual?

Questions and answers

Related Manuals for Intellinet 515566

Summary of Contents for Intellinet 515566

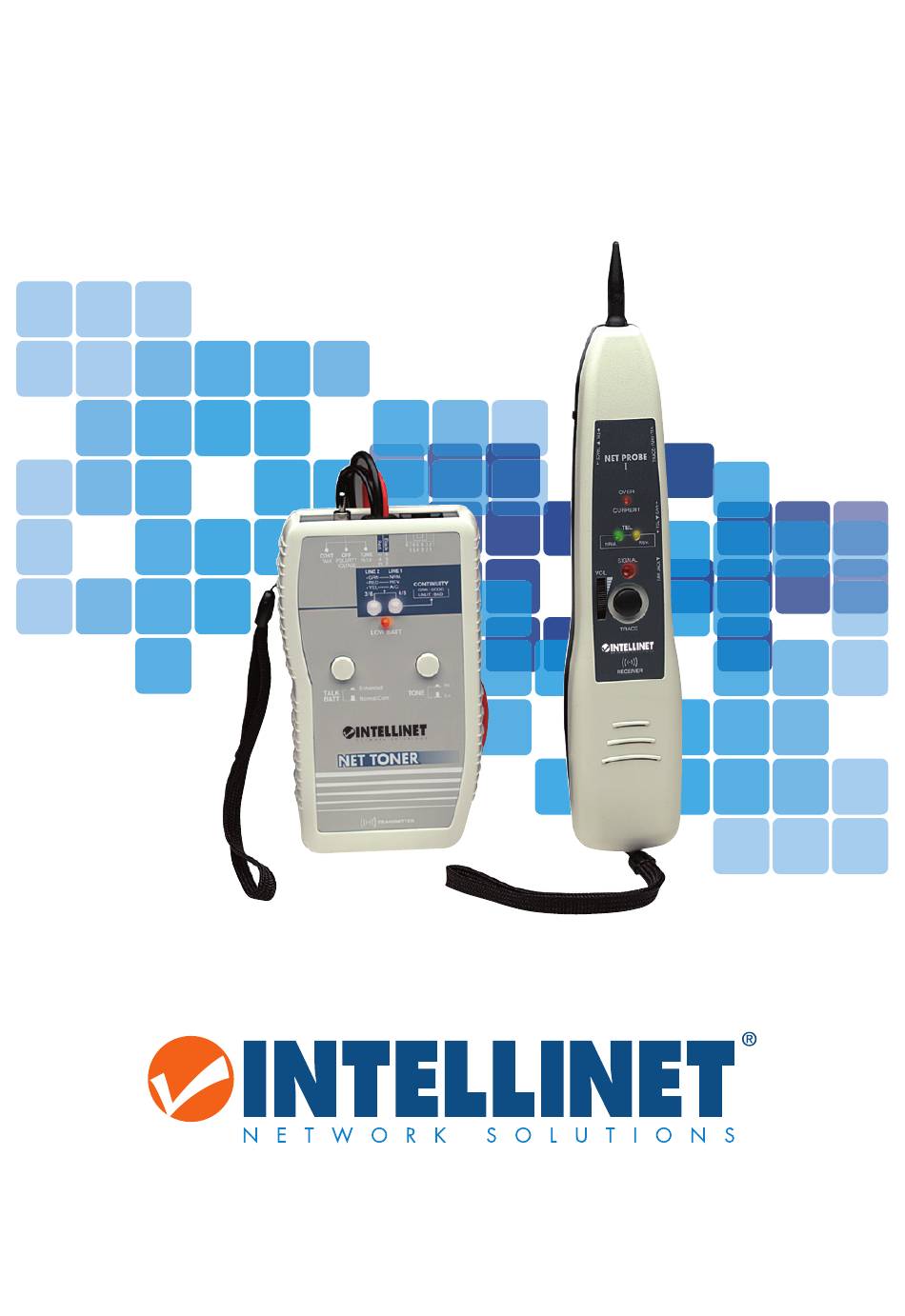

  • Page 1 Net Toner and Probe Kit User Manual Model 515566 intellinetnetwork.com INT-515566_UM-1018_REV-5.03...

  • Page 2: Table Of Contents

    User Manual Net Toner and Probe Kit TABLE OF CONTENTS Operation Sending/Tracing a Tone Supplying Talk Power Testing Cable Continuity Testing Terminated Coax Cables Testing Unterminated Coax Cables Testing Polarity: Identifying the Tip and Ring Verifying the Line Net Probe — Tone Tracing Line Testing Other Functions/Components Replacing the Tip...

  • Page 3: Operation

    Net Toner and Probe Kit User Manual or at 80 mA or 24 V AC or higher. Do not connect to live AC circuits: doing so causes an extreme shock hazard and damages the tester. When connecting the tester to a previously untested circuit, the tester should always be in OFF/VOLT mode (the middle switch on the top switched to the middle position).

  • Page 4: Testing Terminated Coax Cables

    User Manual Net Toner and Probe Kit 3. The Continuity LED will light green: • Bright green indicates a low-resistance path. • Faint green indicates a high-resistance path. • Unlit indicates an open circuit. When installed cables are too long to test using alligator clips: 1.

  • Page 5: Line Testing

    Net Toner and Probe Kit User Manual from the tone generator. Trace over the entire path of the test cable or until the cable end is located. Locating termination verification/general area of termination: Adjust the gain (volume) control to the maximum level. Begin tracing in the general area of the cable termination. Slowly maneuver the tone tracer in a zig-zagging fashion carefully and methodically over the entire area until the generated tone is found.

  • Page 6: Replacing The Battery

    User Manual Net Toner and Probe Kit 3. Replace the old tip with a compatible new tip (included) and reverse Steps 1 and 2. NOTE: Do not overtighten the tip. Replacing the Battery Net Toner: When battery power runs low, the LOW BATT LED on the Net Toner will light. Net Probe: When the battery needs to be replaced, the LED indicators will dim and the speaker sound will weaken or fail.

  • Page 7: Notes

    Net Toner and Probe Kit User Manual NOTES...

  • Page 8: Additional Information

    EN MÉXICO: intellinetsolutions.mx. Póliza de Garantía Intellinet Network Solutions — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P.
  • Page 9 cambio físico. 3. La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor. Para hacer efectiva esta garantía bastará con presentar el producto al distribuidor en el domicilio donde fue adquirido o en el domicilio de IC Intracom México, S.A.P.I.
  • Page 10 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
