Network Modular Cable Tester User Manual Model 780100 intellinetnetwork.com INT-780100_UM-1216_Rev-5.01...
Page 2
GENERAL SETUP This tester consists of a Main unit and a Remote unit. The main unit can test a single cable through its two RJ45 jacks. The Remote unit connects to patch panels and wall plates where the two plug-in points may be in separate locations.
Page 3

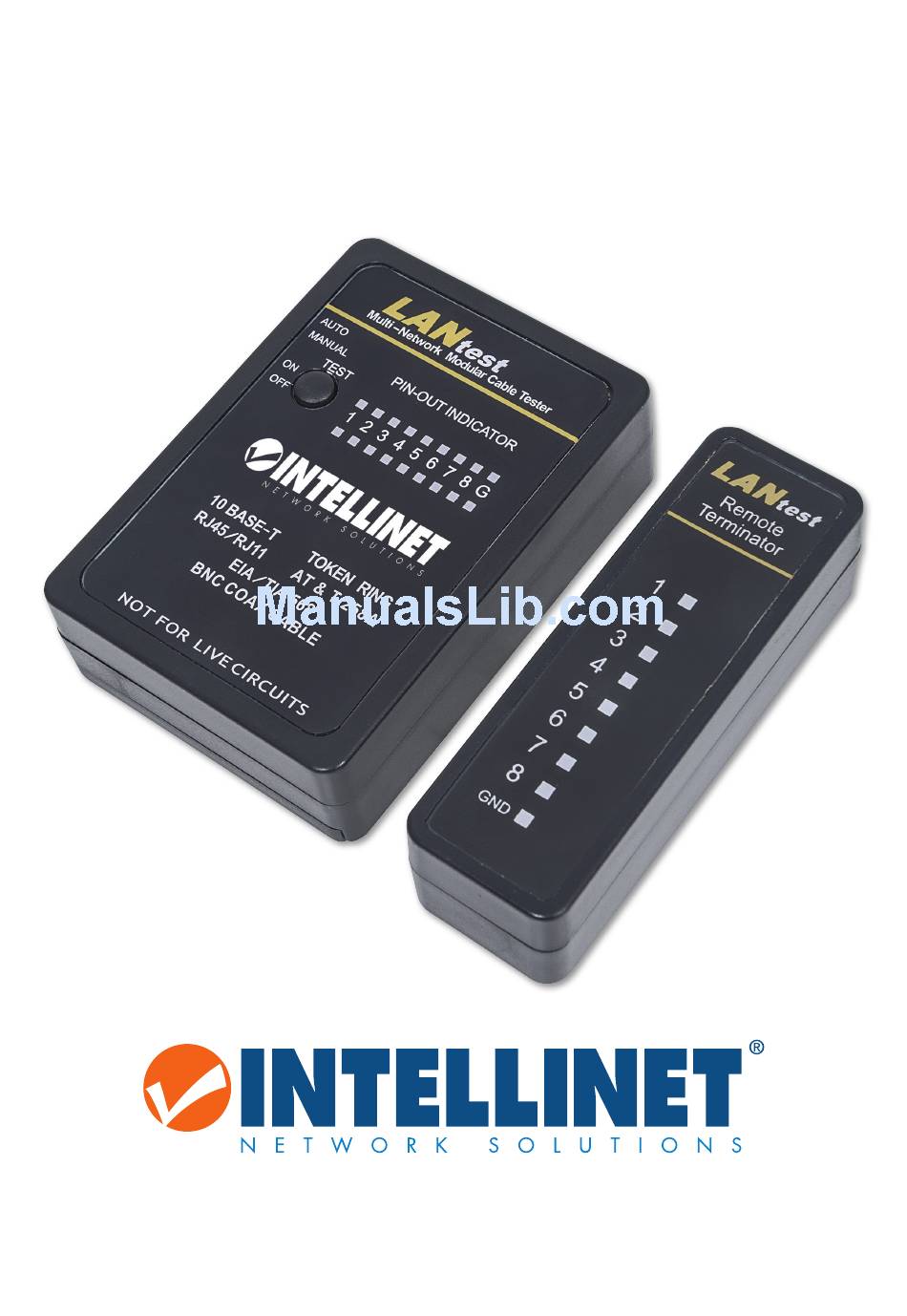

PRODUCT PROFILE Main Tester RJ45 jack Main Tester RJ45 jack Remote Tester RJ45 jack Auto/Maunual Test switch Power switch Test switch for Manual scan LED Display for Sourcing End (Jack A) LED Display for Receiving End (Jack B) LED Display for Receiving End (same as Jack B) Battery compartment...
Page 4
Note: The center pin on the BNC connector should be read on LED #1 and the shielding pin should be read on LED #2. Intellinet recommends reading the LED scan through Manual mode by pressing the Test button, F.
Page 5
VISUAL BASIC OPERATING INSTRUCTIONS PIN-OUT INDICATOR Table A shows the sections of LED display that will light based on the type of cable that is being tested. Table B shows examples of what the resulting lit and unlit LEDs mean for wiring status (in this example, for RJ45 cables).
