Standalone Mode

First complete Tasks 1 - 3 on the front of this Quick
continue to Task 4, below, to set up a UCS C240 M4SX system
in Standalone Mode using Cisco Integrated Management Controller
(CIMC). Refer to this document, available from the Support Portal:
OmniStack™ Integrated Solution with Cisco UCS C240 M4SX
Hardware Installation and Maintenance Guide
Task 4: Connect the Network Cables
Use the two 10GbE mLOM network interfaces (1) and the two
1GbE network interfaces (2). See Network Cabling Examples to
the right.
A separate 1GbE network interface (see Task 5) enables remote
management.
Note: For switched network configurations, connect both 10GbE
network interfaces to redundant switches. Use VLANs to
separate the networks.
Task 5: Configure CIMC
Connect a Cat5 Ethernet cable between the CIMC port and a
switch in your server administration network.
1. Plug in the KVM adapter and connect a KVM.
2. Power on the system.
3. Press F8 to start the CIMC Configuration Utility.
4. Configure the following options:
- Enable Dedicated NIC mode.
- Disable NIC redundancy (check None).
- Enter a static IP address for the CIMC IP.
- Enter a Subnetmask.
- Enter an IP address for the gateway.
5. Press F10 then Esc to save and exit.
The boot process continues automatically.
OmniStack Quick Start–UCS C240 M4SX Hardware Installation

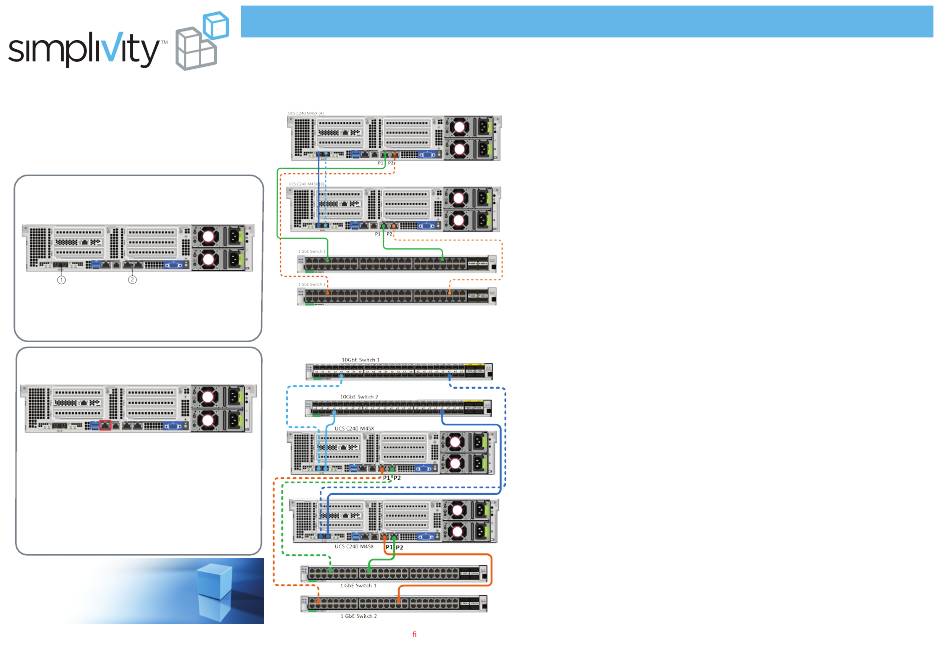

Network Cabling Examples
Direct-Connected Configuration
Use redundant, 10GbE direct connections between two
systems for the Storage and Federation networks, and
redundant 1GbE connections to switches for the
Management network.
Start, then
Switch-Connected Configuration
Use redundant connections to 10GbE switches for the
Storage and Federation networks, and redundant
connections to 1GbE switches for the Management
network.
Continue to the Software Con guration Quick Start.
