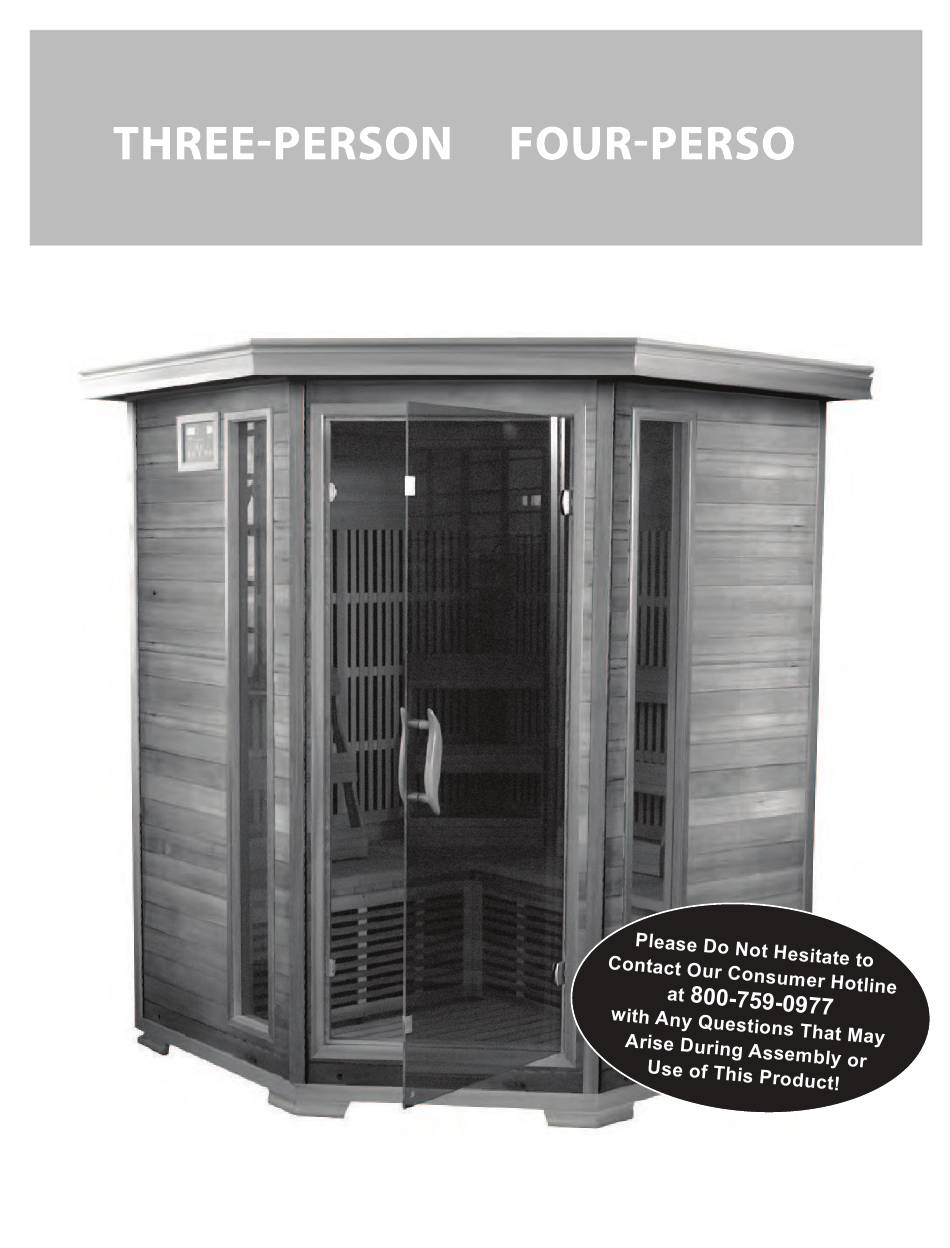

  • Page 1 Rev. 5/16, Ver. 5 OWNER’S MANUAL & CORNER SAUNAS SA1312/SA1320/SA2412DX/SA2420DX...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ASSEMBLY TIPS & WARNINGS PARTS IDENTIFIER ASSEMBLY INSTRUCTIONS 5-10 OPERATION INSTRUCTIONS ENJOYING YOUR SAUNA HEALTH & SAFETY WARNINGS CLEANING & MAINTANENCE 14-15 TROUBLESHOOTING GUIDE REPLACEMENT PARTS 16-23 WARRANTY INFORMATION The information contained in this manual is subject to change without notice.

  • Page 3: Assembly Tips & Warnings

    ASSEMBLY TIPS & WARNINGS Before you begin, read all assembly instructions and safety warnings carefully. This sauna requires at least 3 adults to complete assembly. Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts Note: Some parts may be pre-installed or pre-assembled.

  • Page 4: Parts Identifier

    PARTS IDENTIFIER (NOT TO SCALE) This manual is used for the assembly of several sauna models; therefore, some images or drawings may not look exactly like your product.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS...
  • Page 6 ASSEMBLY INSTRUCTIONS (CONT.)
  • Page 7 ASSEMBLY INSTRUCTIONS (CONT.) Note: It may be necessary to unbuckle the RIGHT PANEL from the RIGHT BACK PANEL in order to slide the LONG BENCH HEATER PANEL into place. Note: Make sure the FLOOR HEATER cable is placed through the groove in the bottom of the SHORT BENCH HEATER PANEL.
  • Page 8 ASSEMBLY INSTRUCTIONS (CONT.) 10. Attach SHORT BENCH SEAT with 2” SCREWS. 11. Lift the ROOF above the sauna, feeding the control panel and heater cables through the corresponding holes. Feed the cables for the AM/FM CD PLAYER through the hole in the bot - tom of the ROOF.
  • Page 9 ASSEMBLY INSTRUCTIONS (CONT.) 13. Attach the DOOR HANDLE to the GLASS DOOR. 14. Gently pull the cables for the AM/FM CD PLAYER through the opening in the front of the STEREO SHELF. Attach the STEREO SHELF with 3/4” SCREWS. 15. Plug the controller and antenna into the back of the AM/FM CD PLAYER. Slide and lock the AM/FM CD PLAYER into the STEREO SHELF.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS (CONT.) Note: A sticker indicates the optimal position for this accessory, but attaching it is optional. Consider the position carefully before driving any screws into the sauna interior. Note: A sticker indicates the optimal position for this accessory, but attaching it is optional. Consider the position carefully before driv- ing any screws into the sauna interior.

  • Page 11: Operation Instructions

    OPERATION INSTRUCTIONS SAUNA CONTROL PANEL Note: The sauna controls are the same for both the interior and exterior Control Panels. COLOR THERAPY CONTROL PANEL OXYGEN IONIZER...

  • Page 12: Enjoying Your Sauna

    ENJOYING YOUR SAUNA 1. Prior to initial use, wipe down all interior surfaces of the sauna with a damp cloth. 3. Always drink plenty of water before, during and after your sauna session to stay properly hydrated. 4. A normal sauna session should last 30 minutes or less. 5.

  • Page 13: Health & Safety Warnings

    HEALTH & SAFETY WARNINGS...

  • Page 14: Cleaning & Maintanence

    CLEANING & MAINTENANCE TROUBLESHOOTING GUIDE WARNING! Problem THERE IS NO POWER TO THE SAUNA Solution Problem ONE HEATER DOES NOT WORK Solution Problem NONE OF THE HEATERS WORK Solution...

  • Page 15: Replacement Parts

    TROUBLESHOOTING GUIDE (CONT.) Problem THE CONTROL PANEL DOES NOT WORK 1. Check that all the connections are tight. 2. If the numbers are scrambled or the buttons are unresponsive, replace the Control Panel. Solution 3. If the temperature indicator does not work or reads “--” or “EP”, replace the Control Panel. Problem THE LIGHTS ARE NOT WORKING 1.
  • Page 16 REPLACEMENT PARTS Rev. 5/16 SA1312 THREE-PERSON CEDAR CORNER SAUNA REF. # DESCRIPTION PART NUMBER QTY. FRONT PANEL with GLASS DOOR SAP30204 RIGHT PANEL SAP30234 LEFT PANEL SAP30214 LEFT BACK PANEL SAP30224 RIGHT BACK PANEL SAP30244 CONTROL PANEL SAP2406 ROOF SAP30255...
  • Page 17 SA1312...
  • Page 18 REPLACEMENT PARTS Rev. 6/16 SA1320 FOUR-PERSON CEDAR CORNER SAUNA REF. # DESCRIPTION PART NUMBER QTY. FRONT PANEL with GLASS DOOR SAP30434 RIGHT PANEL SAP30464 LEFT PANEL SAP30444 LEFT BACK PANEL SAP30454 RIGHT BACK PANEL SAP30474 CONTROL PANEL SAP2406 ROOF SAP30485 ROOF COVER SAP3049 FLOOR...
  • Page 19 SA1320...
  • Page 20 REPLACEMENT PARTS Rev. 5/16 SA2412DX THREE-PERSON HEMLOCK CORNER SAUNA REF. # DESCRIPTION PART NUMBER QTY. FRONT PANEL with GLASS DOOR SAP31134 RIGHT PANEL SAP31164 LEFT PANEL SAP31144 LEFT BACK PANEL SAP31154 RIGHT BACK PANEL SAP31174 CONTROL PANEL SAP2406 ROOF SAP31185 ROOF COVER SAP3026 FLOOR...
  • Page 21 SA2412DX...
  • Page 22 REPLACEMENT PARTS Rev. 5/16 SA2420DX FOUR-PERSON HEMLOCK CORNER SAUNA REF. # DESCRIPTION PART NUMBER QTY. FRONT PANEL with GLASS DOOR SAP31004 RIGHT PANEL SAP31034 LEFT PANEL SAP31014 LEFT BACK PANEL SAP31024 RIGHT BACK PANEL SAP31044 CONTROL PANEL SAP2406 ROOF SAP31055 ROOF COVER SAP3049 FLOOR...
  • Page 23 SA2420DX...

  • Page 24: Warranty Information

    SAUNA WARRANTY REGISTRATION CARD 1. This sauna has a 7-Year Limited Warranty against defects in materials and workmanship from date of purchase. To receive the warranty, the card below must be lled out completely and returned within thirty (30) days from date of purchase. This 7-Year Limited Warranty covers the wood structure*.

This manual is also suitable for:

Sa2412dxSa1320Sa2420dx
