  • Page 1 PILOT’S GUIDE...
  • Page 2 Copyright Information Stratus 3 Pilot’s Guide, © 2018 Appareo Systems, LLC. All Rights Reserved. All content within is copyrighted by Appareo Systems, LLC and may not be reprinted without permission. The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by the manufacturer.

  • Page 3: Table Of Contents

    Product Registration ���������������������������������������������������������������������������������������������� 6 Compatible Accessories ���������������������������������������������������������������������������������������� 6 Compatible Flight Apps������������������������������������������������������������������������������������������ 6 Charging the Battery���������������������������������������������������������������������������������������������� 7 Using Stratus 3 at High Temperatures ������������������������������������������������������������������� 8 Extending iPad Battery Life ����������������������������������������������������������������������������������� 8 Battery Care ���������������������������������������������������������������������������������������������������������� 9 Mounting Stratus 3 ���������������������������������������������������������������������������������������������� 10 Placing Stratus 3 in Aircraft ��������������������������������������������������������������������������������� 11 Installing Remote Antennas ���������������������������������������������������������������������������������...

  • Page 4: Warnings

    Warnings Data • Stratus portable receivers are ADS-B In only products and do not satisfy the FAA’s 2020 ADS-B Out requirement� • Use of personal electronic devices while in flight may be hazardous. Use of Stratus portable receivers in an operating aircraft is subject to approval by the Pilot in Command�...

  • Page 5: Quick Start Instructions

    Horizon Pro, enable Open ADS-B mode in Stratus Horizon Pro. 7� Open a compatible flight app and confirm connection to receiver. NOTE: Because ADS-B signals are broadcast by ground stations, Stratus 3 will not receive weather and traffic information while it is on the ground � Shipping Contents •...

  • Page 6: About Stratus 3

    About Stratus 3 Stratus 3 is a battery-operated portable receiver that works with Stratus Horizon Pro, ForeFlight Mobile, and other compatible flight apps. It provides pilots with subscription-free in-flight weather and traffic and is a source of accurate WAAS (Wide Area Augmentation System) GPS position�...

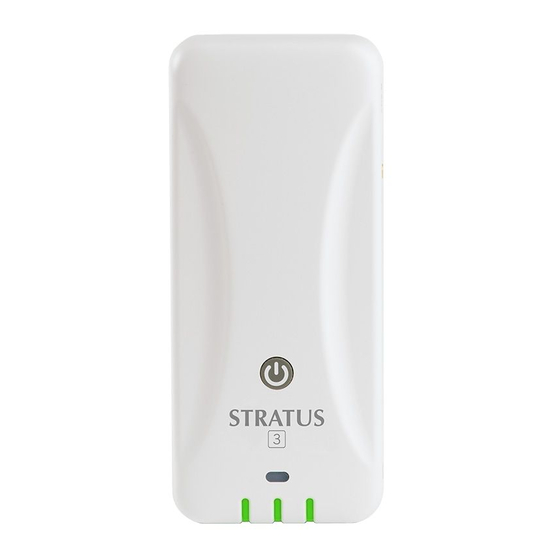

  • Page 7: Stratus 3 Interface

    Stratus 3 Interface POWER BUTTON AMBIENT LIGHT SENSOR ADS-B ANTENNA PORT GPS ANTENNA PORT MODEL LED INDICATORS CHARGING PORT...

  • Page 8: Product Registration

    Compatible Flight Apps Stratus 3 is optimized for Stratus Horizon Pro and Foreflight Mobile, but also offers a GDL 90 interface for third-party apps when Open ADS-B mode is enabled in the settings page of Stratus Horizon Pro.

  • Page 9: Charging The Battery

    Charging the Battery WARNING: Using other battery chargers voids the warranty and may result in decreased battery performance, permanent damage to the USB port, or inoperability of the receiver. The receiver comes with a Type-A to Type-C USB charging cable� Type-A Type-C Fully charge the receiver’s battery prior to first use.

  • Page 10: Using Stratus 3 At High Temperatures

    Using Stratus 3 at High Temperatures Stratus 3 does not operate optimally if the temperature is higher than 95°F (35°C)� The functionality of the receiver changes when the temperature exceeds 113°F (45°C), as shown in the table below. Temperature When unplugged When plugged in above 113°F (45°C )

  • Page 11: Battery Care

    It is normal for a lithium battery to lose capacity after many charge and discharge cycles or if it is subjected to high temperatures� A battery replacement kit for Stratus 3 can be purchased from Appareo or Sporty’s�...

  • Page 12: Mounting Stratus 3

    Mounting Stratus 3 You can mount Stratus 3 with a dash mount, window mount, or connect it to an external antenna� Dash mounted Window mounted* Connected to a remote ADS-B antenna* *Available from your Stratus retailer...

  • Page 13: Placing Stratus 3 In Aircraft

    Placing Stratus 3 in Aircraft Do not turn on Stratus 3 until it has been mounted so that it can calibrate correctly. Using the dash mount 1� Place the dash mount on the aircraft dash� 2� Place Stratus 3 in the dash mount so that the arrow on SSID the bottom of the receiver points in the direction of flight.
  • Page 14 Inserting receiver into window mount Using a remote antenna Place Stratus 3 in a location where the arrow on the bottom of the receiver points in the direction of flight. When used with an optional remote antenna, the receiver can be placed in any part of the aircraft that allows the antenna cables to reach the receiver�...

  • Page 15: Installing Remote Antennas

    Installing Remote Antennas Stratus 3 has internal ADS-B and GPS antennas; however, remote ADS-B and GPS antennas are also available from your Stratus retailer� These antennas may improve the receiver’s reception quality and provide more receiver mounting options� Installing a remote GPS antenna...

  • Page 16: Connecting Remote Antennas To Stratus 3

    GPS receivers� The cable’s minimum bend radius is 1 inch� Remote antenna ports The ports labeled GPS and ADS-B on the side of Stratus 3 are for remote antennas� Insert the remote antenna cable connector into its respective receiver port�...

  • Page 17: Turning Receiver On Or Off

    Stratus Horizon Pro or ForeFlight Mobile. Using Auto Power-On and Power-Off By default, Stratus 3 will power on only when the power button is pushed. It will automatically power off if no GPS lock has been achieved in 30 minutes or the aircraft is moving less than 5 knots for 30 minutes�...

  • Page 18: Reading Led Indicators

    Reading LED Indicators Label LED Color LED Status Meaning Green Solid 3-D GPS lock achieved Solid 2-D GPS lock achieved Yellow Flashing No GPS lock, searching for signal Receiver is powered off Flashing 100% battery; plugged in Green Solid 20% to 99% battery; not charging Flashing Battery is charging Yellow...
  • Page 19 Label LED Color LED Status Meaning ADS-B FIS-B signal has been received from Green Solid multiple towers in the past three seconds ADS-B FIS-B signal has been received from ADS-B Yellow Solid one tower in the past three seconds ADS-B FIS-B signal has not been received in the past three seconds Briefly red Solid...

  • Page 20: Connecting To Stratus 3

    Connecting to Stratus 3 Your tablet or phone must be connected to the Stratus Wi-Fi network (not Bluetooth) for the receiver to communicate with the app� Multiple devices in the cockpit may be connected to the receiver at the same time�...

  • Page 21: Adjusting Receiver Settings

    Calibrating Stratus 3 Stratus 3 is automatically calibrated to its mounting position a few seconds after being powered on� Do not power on Stratus 3 until it has been mounted� If Stratus 3 is moved after being powered on, it can be re-calibrated to straight and level in Stratus Horizon Pro or ForeFlight Mobile.

  • Page 22: Using Ahrs

    Using AHRS Stratus 3 can be used for backup AHRS (attitude, heading, and reference system) in Stratus Horizon Pro or ForeFlight Mobile to enhance situational awareness� For the most accurate AHRS information, ensure that the receiver is mounted parallel with the centerline of the aircraft running front to back, and the arrow on the bottom of the receiver points in the direction of flight.

  • Page 23: Using Stratus 3 With Foreflight Mobile

    Using Stratus 3 with ForeFlight Mobile Using Stratus 3 with ForeFlight Mobile allows maximum functionality and features� Some ForeFlight Mobile and Stratus 3 features are listed below� Weather Stratus 3 receives ADS-B weather data and relays this information to ForeFlight Mobile�...

  • Page 24: Viewing Ads-B Traffic

    Mobile relative to your aircraft� Air-to-Air Traffic Stratus 3 will only receive air-to-air broadcasts from other aircraft if they are ADS-B Out equipped and within range of the receiver. Air traffic that is not equipped with a UAT ADS-B Out or Mode S Extended Squitter transmitter will not be detected by the receiver air-to-air�...
  • Page 25 “see- and-avoid” procedures� Stratus 3 is not an active traffic interrogation system or ADS-B Out device� NOTE: Stratus 3 is not likely to receive weather or rebroadcast traffic information on the ground because ADS-B information is broadcast by ground stations�...

  • Page 26: Updating Firmware

    When the factory reset is complete, all of the LED indicators change from green to yellow to green� The factory reset auto-calibrates Stratus 3 and reconfigures it to its default settings. If you’re flying with an app other than ForeFlight Mobile or Stratus Horizon...
  • Page 27 FCC Declaration This device complies with Part 15 of the FCC limits for Class B digital devices. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Furthermore, there is no guarantee that interference will not occur in a particular installation�...
  • Page 28 Notes...
  • Page 29 Notes...
  • Page 30 Notes 600890-000063 Rev 1�0...
  • Page 31 Servicing A battery replacement kit for Stratus 3 can be purchased from Appareo. Other issues are not field-serviceable. If you believe your receiver requires repair or maintenance, contact the retailer you purchased your receiver from for further instruction. Repairs made outside of a Stratus-approved repair center could void the warranty and may result in further damage to the device.
  • Page 32 Support For product support, contact your dealer or original retailer: Sporty’s 513-735-9000 stratus@sportys.com www.sportys.com/stratus Appareo support@appareo.com www.appareo.com/stratus For questions about ForeFlight: ForeFlight team@foreflight.com www.foreflight.com/stratus FAQs & Troubleshooting Answers to your frequently asked questions and troubleshooting are found at www.appareo.com/stratus-FAQ.
