- Page 1 Stratus 2i Installation Guide Revision 2.0...
- Page 2 Stratus 2i Installation Guide ©2016-17 Appareo Systems, LLC. All Rights Reserved. Stratus 2i Installation Guide. All content within is copyrighted by Appareo Systems, LLC, and may not be reprinted without permission. The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Appareo Systems, LLC.

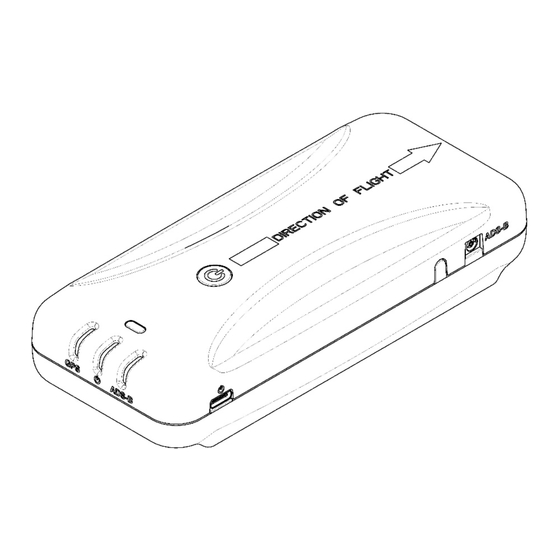

- Page 3 Wi-Fi communication. It is important for Stratus 2i to be installed in the orientation indicated by the “Direction of Flight” arrow on the receiver. Stratus 2i can be placed upside down or sideways, as long as the “Direction of Flight”...
- Page 4 2. Press FUNC or the arrow keys to navigate to the “ADS-B Capability” screen and press ENT. 3. Use the arrow keys to set the capability to UAT and 1090 ES (the frequencies Stratus 2i is capable of). 4. Press ENT.
- Page 5 RS232-TX AUX RS232-TX GPS 1PPS ALTITUDE COMMON (GND) ALTITUDE COMMON (GND) XPNDR XPNDR ANTENNA (BNC) ANTENNA GPS ANTENNA IN (STRATUS ESG ONLY) (TNC) ADS-B AUX ADS-B AUX (BNC) Guide: Black outline = applicable to Stratus 2i installation Page 5 of 7...
- Page 6 RS232-TX GPS 1PPS AUX GROUND ALTITUDE COMMON (GND) ALTITUDE COMMON (GND) XPNDR XPNDR ANTENNA (BNC) ANTENNA GPS ANTENNA GPS ANTENNA IN (TNC) ADS-B AUX ADS-B AUX (BNC) Guide: Black outline = applicable to Stratus 2i installation Page 6 of 7...
- Page 7 Off for five seconds, then Power button is depressed. After 30 seconds, flashing green factory reset process will begin. Green to yellow to green Factory reset process is complete. © 2016-17 Appareo Systems, LLC. All Rights Reserved. Page 7 of 7...
