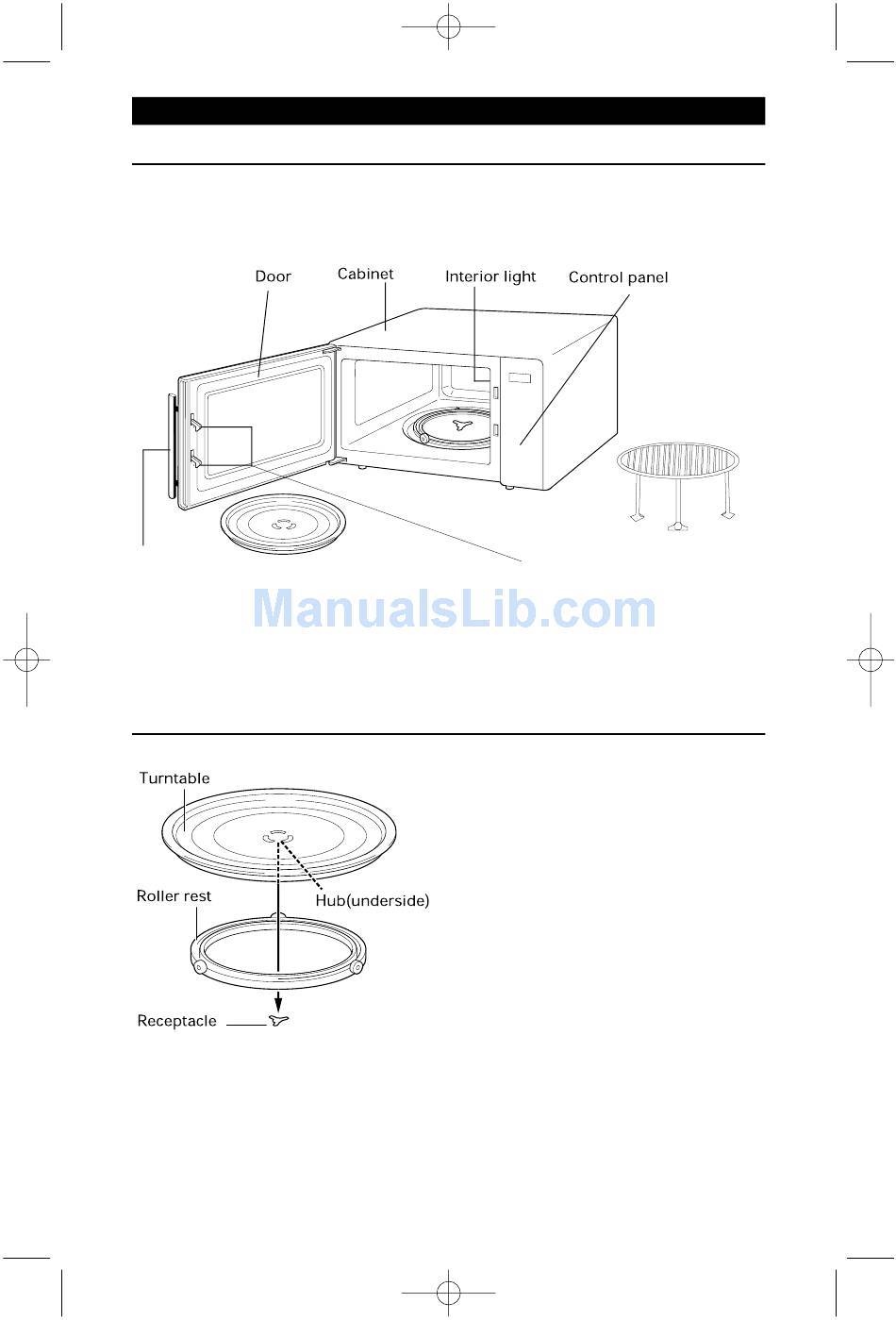

NAMES OF OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
1 Turntable
1 Turntable roller rest
Door Handle
• Pull handle gently to open door.
• When you open the door during
cooking process, the cooking
stops but the program will not
be canceled. Touch START to
resume cooking.

TURNTABLE INSTALLATION

1. Place the roller rest on the
cavity bottom.
2. Place the turntable on top of the
roller rest as shown in the
diagram. Make sure the
turntable hub is securely
locked in the receptacle.
7/7/05 8:32 AM Page 8
SET UP
1 Instruction Manual
1 Grill Rack
Door Safety Locks
Shuts off oven
power if door
is opened during
operation.
• Never place the turntable upside
down. The turntable should
never be restricted.
• Both turntable and roller rest
must always be used during
cooking.
• All food and containers of food
are always placed on the
turntable for cooking.
• If turntable or roller rest cracks
or breaks, contact your nearest
authorized service center for
more information regarding
replacement.
8
Grill Rack
Use Grill Rack
while using
GRILL only.
