Striem OS-15 Instructions Manual

Sheet Descriptions
Sheet #1 - Series overview and Warranty information
Sheet #2 - OS General installation guidelines and Operation/Maintenance guidelines
Sheet #3 - Below Grade installation guidelines
Sheet #4 - Below and Above Grade installation guidelines
Sheet #5 - Multiple unit systems. Setting the oil draw off
Sheet #6 - OCT General installation guidelines and Operation/Maintenance guidelines
Sheet #7 - TeleGlide Riser installation guidelines (SR24, LR24)
Sheet #8 - TeleGlide Riser installation guidelines (SR16)

Leak/Seal Testing

DO NOT AIR TEST UNIT OR TELEGLIDE RISER SYSTEM! Doing so may result in property damage, personal injury or death.
Base Unit: To perform a leak/seal test on the base unit, cap/plug all plumbing connections, remove the cover, and fill the unit with water just above the
highest connection. Inspect unit and connections for leaks. Check water level at specific time intervals per local code.
TeleGlide Riser System: If required by local code, the riser system may be leak/seal tested similar to the base unit. CAUTION: the riser(s) must be supported
before filling with water to keep from tipping over. Once riser system is in place and properly supported, cap/plug all plumbing connections on the main unit,
remove the cover from the top of the riser assembly and fill the unit and riser system with water to finished grade level. Carefully, as the riser(s) will be very
heavy from the weight of the water, inspect all gasket(s) and clamps (if applicable) for any leaks. Check water level at specific time intervals per local code.

Lifetime Warranty

Effective March 2, 2015 Striem represents and warrants that HDPE and PP products will be free from any
and all defects in material and workmanship, including corrosion, during the lifetime of the plumbing system in which the Products were originally
installed and will, at its option, agree to repair, replace, or supply credit to the original purchaser.
This warranty does not cover damage caused by the Products' normal usage, or wear and tear, nor does it cover damage from naturally occurring
phenomenon, including, but not limited to UV, freeze-related damage, or natural disasters. This warranty does not cover the purchaser's cost of routine
Maintenance including replacement of parts required in routine maintenance.
This warranty does not cover fabricated steel products, or any monitoring equipment. This warranty shall be effective if, and only if, the Products:
* Were installed in accordance with Striem's notes, specifications and instructions, for installation, operation, and maintenance;
* Were installed in conformance with all applicable building and plumbing codes, and passed all applicable testing methods immediately following installation;
* Have not been subjected to misuse or abuse, whether negligent or intentional;
* Were never modified, repaired, or altered by any individual(s) not authorized by Striem.
This warranty is the purchaser's sole and exclusive remedy, and acceptance of this exclusive remedy is a condition of the contract for thepurchase of these
Products. In no event shall Striem be liable for any incidental, special, consequential or punitive damages, or for any costs, attorney fees, expenses, losses or
delays claimed to be as a consequence of any damage to, failure of, or defect in any products including, but not limited to, any claims for loss of profi ts,
transportation, removal and installation charges. This warranty is exclusive and in lieu of all other warranties or conditions, written or oral, expressed or implied.
NOTES:
Striem oil separators are rated and manufactured with an internal flow control system already in
place. They do not require an external flow control system or air intake vent.
Striem oil separators are not to be installed in any other manner except as shown. Consult local
codes for separate trapping requirements, cleanout locations and additional installation instructions.

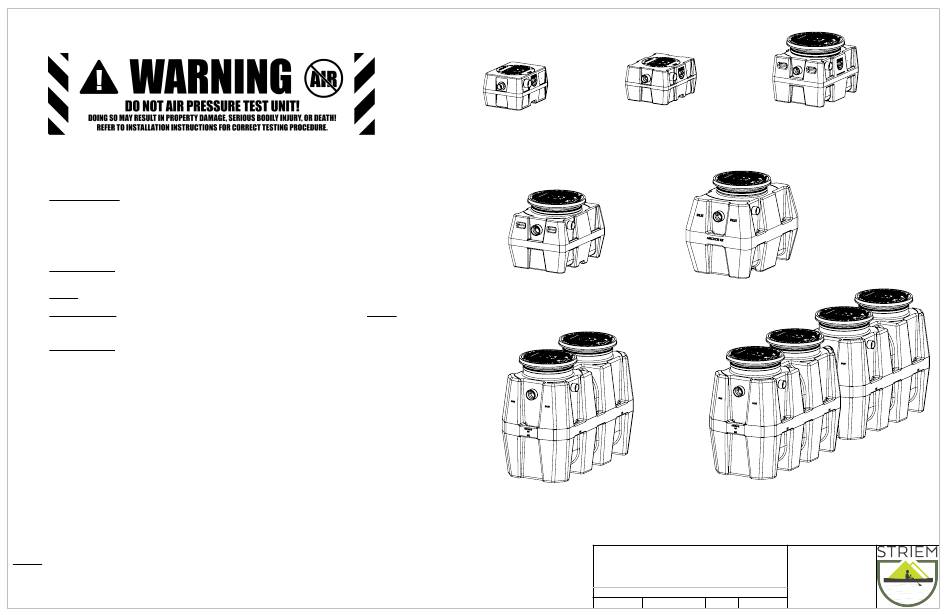

OIL RESERVE OIL SEPARATORS
(Models OS-15, OS-25, OS-35, OS-50, OS-75, OS-100, and OS-500)
OS-15
15 gpm, 15 gallons
10 gallon oil capacity
1 gallon sand capacity
50 gpm, 57 gallons
40 gallon oil capacity
7 gallon sand capacity
100 gpm, 250 gallons
144 gallon oil capacity
95 gallon sand capacity
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF STRIEM, LLC.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF STRIEM, LLC. IS
PROHIBITED.
OS-25
25 gpm, 21 gallons
15 gallon oil capacity
6 gallon sand capacity
OS-50
75 gpm, 110 gallons
93 gallon oil capacity
11 gallon sand capacity
OS-100
DESCRIPTION:
OS & OCT SERIES INSTALLATION,
Operation AND MAINTENANCE GUIDE
SHEET NUMBER: 1 of 7
DWG BY: MJ DATE: 8/15/18 REV:
OS-35
35 gpm, 38 gallons
28 gallon oil capacity
6 gallon sand capacity
OS-75
OS-500
100 gpm, 500 gallons
288 gallon oil capacity
95 gallon sand capacity
Striem
​ 3 100 Brinkerhoff
Kansas City, KS 66115
Tel: 913-222-1500
Fax: 913-291-0457
www.striemco.com
Made in the U.S.A
ECO:
