Page 2: Specifications

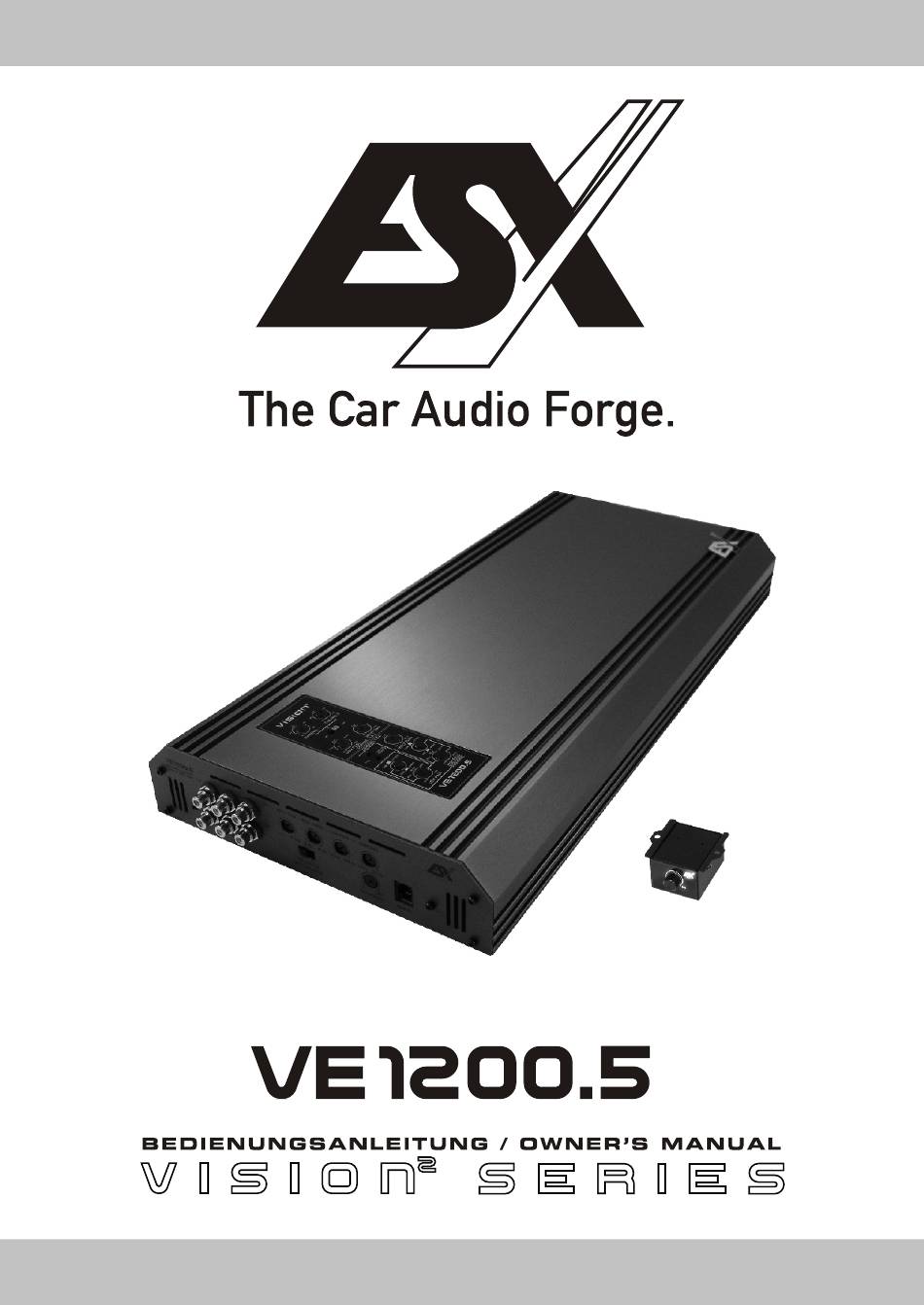

OWNER'S MANUAL Content Page Installation of the Amplifier, Electrical Connection 5-CHANNEL AMPLIFIER VE1200.5 Functions & Controls 5-Channel-Mode: 4 Speakers / Stereo with 1 Subwoofer / Mono 3-Channel-Mode: 2 Speakers / Stereo bridged with 1 Subwoofer / Mono SPECIFICATIONS VE 1200.5 Channels Watt RMS @ 4 Ohm 4 x 80 + 1 x 275... -
Page 3: General Installation Notes
+ power supply wire. Please use a sufficient gauge for the installed amplifiers (min 16-25 mm). This connection must be completed using spade plug with insulating sleeve. The ESX VE Vison amplifiers are optimized for a operating voltage of 12-16 Volts. - Page 4 FUNCTIONS & CONTROLS FRONT-PANEL / REAR-PANEL 5-Channel Amplifer VE1200.5 LINE OUTPUT Provides a full range line level (RCA) output that allows you to trigger additional amplifiers. INPUT GAIN (5CH / Digital Amplifier Section) Controls the Input Sensitivity of Channel 5 between 0,15 Volts and 6 Volts. BASS BOOST (5CH / Digital Amplifier Section) Allows you to adjust the BASS BOOST of Channel 5 from 0 up to 18 dB.
- Page 5 FUNCTIONS & CONTROLS TOP-PANEL 5-Channel Amplifier VE1200.5 NOTE: If the amplifier's top-panel is white illuminated, the amplifier is in power mode. If the display is red illuminated, the protection mode of the amplifier is activated caused by a malfunction (See page 19) CAUSES: Overheating, short circuit on the speakers, overload (caused by low-impedance or low-power) or damage .
- Page 6 FUNCTIONS & CONTROLS TOP-PANEL 5-Channel Amplifier VE1200.5 ACOUSTIC PHASE SHIFT LEFT Adjust the phase modulation (acoustical center) of the Channel 1 between 0 - 180 degrees. ACOUSTIC PHASE SHIFT RIGHT Adjust the phase modulation (acoustical center) of the Channel 2 between 0 - 180 degrees. ON - In this position the phase modulation is activated and can be separatly adjusted with T1 and T2 (See page 32).
- Page 7 LOUDSPEAKER WIRING & CONNECTION 5-Channel Amplifier VE1200.5 5-CHANNEL-MODE: 4 Speakers Stereo with one Subwoofer 4 OHM 4 OHM 4 OHM 4 OHM LEVEL BASS REMOTE MIN - MAX Level Controller White LED = Operation Mode Red LED = Protection Mode (see page 19) Head Unit 4 OHM Connections...
- Page 8 LOUDSPEAKER WIRING & CONNECTION 5-Channel Amplifier VE1200.5 3-CHANNEL-MODE: 2 Speakers / Stereo & 1 Subwoofer / Mono bridged LEVEL BASS REMOTE MIN - MAX Level Controller 2 OHM 2 OHM 4 OHM SUBWOOFER 2 CH White LED = Operation Mode Red LED = Protection Mode (see page 19) Head Unit Interconnect Cable Checklist...
- Page 9 SPECIAL FEATURES VE1200.5 Acoustic Phase Shift The ESX-VISION VE Series Amplifiers have an integrated channel separated Phaseshift Control. By controlling the phase, perfect soundstaging is realisable. Conventionally Systems Acoustic Phase Shift (APS) Car Audio Systems with without Acoustic Phase Shift...
-
Page 10: Trouble Shooting
TROUBLE SHOOTING System does not turn on 1. Check all fuses. 2. Check all connections. 3. Measure the +12 volt and remote turn on voltages at the amplifier terminals. If these are non existent or too low, take voltage measurements at fuse holders, distribution blocks, the head unit’s +12 volt and remote leads to localize the problem.
