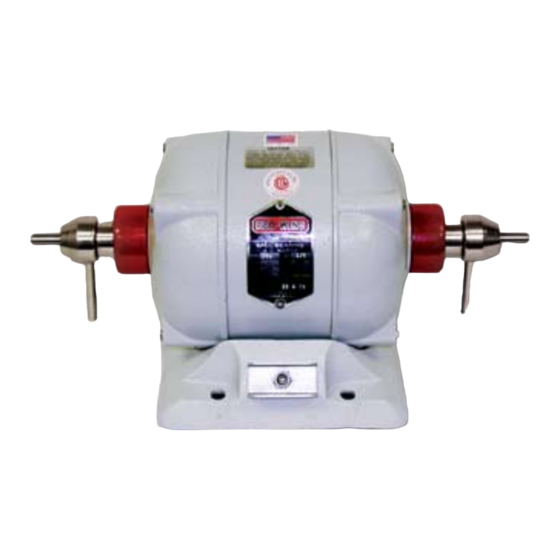

- Page 1 26A RED WING LATHE OPERATING MANUAL IMPORTANT INSTRUCTIONS WARNING! FOR YOUR SAFETY PLEASE READ INSTRUCTIONS BEFORE OPERATING TOOL & WEAR EYE PROTECTION FD.06/2009...
- Page 2 Should damage have occurred in transit, contact the freight forwarder immediately. Do not contact Handler as the receiver of a product must file a claim for damage within 14 days. Failure to file a claim in a timely manner could result in the loss of your rights of recovery.
-
Page 3: Safety Instructions
ALL ELECTRICAL ITEMS WITH A CORD SET: REPAIR OR REPLACE DAMAGED OR WORN CORD IMMEDIATELY. DO NOT ExPOSE TO RAIN OR USE IN DAMP LOCATIONS. ADVERTISSEMENT: NE PAS ExPOSER A LA PLUIE ET NE PAS UTILISER DANS LES EMPLACEMENTS HUMIDES. 26A Red Wing Lathe Instruction... - Page 4 NOTE: Many Red Wing polishing motors are shipped with 1/2” straight shafts. Chucks used on Red Wing Polishing motors equipped with a 1/2” straight shaft utilize a set screw to hold the chuck in position. Make certain to tighten this securely. 26A Red Wing Lathe Instruction...
-
Page 5: Care And Maintenance
ACCESSORIES Handler manufactures a full line of Chucks, Protective Hoods, Shields, and Dust Collectors for use with your Red Wing motor. Handler chucks are precision manufactured to fit onto your Red Wing motor. A few of these are described below. - Page 6 Note: Specify a No. 20 L or R chuck for a polishing motor with a straight 1/2” shaft. Handler has designed and built a full line of automatic chucks which will adapt to your Red Wing or other polishing motors. Handler’s automatic chucks are durable and built to save processing time and money.
-
Page 7: Parts List
No.20 Rubber Base Grommets (set, 4) No.8 Rotor - No.21 Screws for above (set, 4) specify whether 1 or 2 speed lathe No.22 Lubri-Plate - 1 3/4 oz tube No.9 Centrifugal Switch - specify whether 1 or 2 speed lathe 26A Red Wing Lathe Instruction... - Page 8 OSHA RECOMMENDED SHIELDS Handler has designed and built a full line of automatic chucks which will adapt to your Red Wing or other polishing motors. Handler’s automatic chucks are durable and built to save processing time and money. PROTECTIVE SHIELDS AND HOODS...
-
Page 9: Grounding Instructions
Do not wear loose clothing or jewelry which may get caught in moving parts. Tie back 14. Avoid Accidental Starting this and any other long hair or use a proper hair net. appliance. Be sure switch is OFF when plugging in. 26A Red Wing Lathe Instruction... -
Page 10: Important Notice
IMPORTANT NOTICE WHAT SHOULD YOU DO TO RETURN GOODS 1. Our terms of sale are F.O.B. our plant. Handler makes every effort to insure the proper delivery of goods, but we cannot guarantee the carrier’s performance. Each product is tested and inspected for proper performance prior to leaving our facility. - Page 11 NOTES 26A Red Wing Lathe Instruction...
-
Page 12: Warranty
WARRANTY This HANDLER product is warranted to be free from defects in material and workmanship, when used under the conditions recommended by the manufacturer, and/or the purpose for which the product was intended, for a period of 12 months from the date of shipment from factory to job site of original owner.
