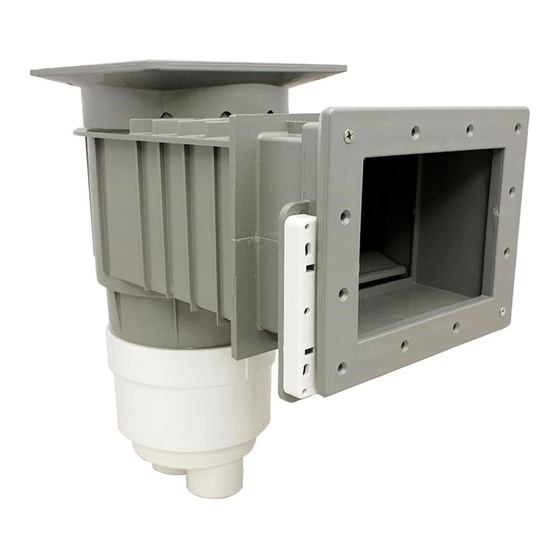

RENEGADE GUNITE SKIMMER OPERATING INSTRUCTIONS
Replacement Weir Door
550-9950
White
550-9951
Black
550-0057
Gray
550-9959-DKG Dark Gray
550-9959-BEI
Beige
(bagged individually)
Designed,
Engineered &
Manufactured
in the USA.
©2018 Waterway Plastics

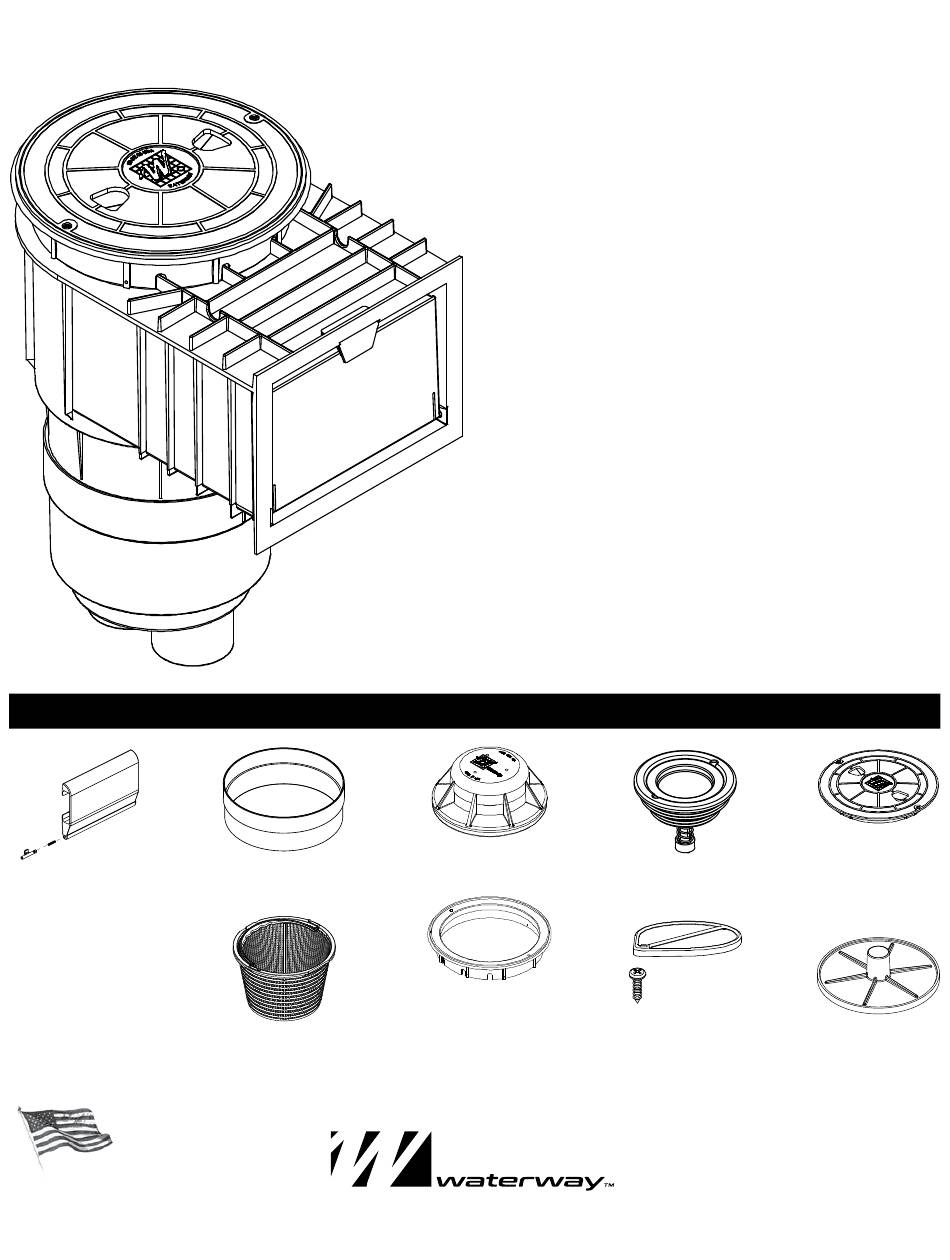

RENEGADE GUNITE SKIMMER REPLACEMENT PARTS

Extension Ring
519-6570 White
Skimmer Basket
542-3240 White
2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403
www.waterwayplastics.com • waterway@waterwayplastics.com

NORMAL OPERATION

Water passes over the weir door, down through the basket and float valve assembly to
the pump. The trimmer plate on the float valve assembly or the diverter plate are both
open.

ADJUSTING THE SKIMMER FLOW

If the skimmer flow is too fast due to excessive flow rate from the pump, either rotate
the float valve trimmer plate or the diverter plate over the port to the pump until
required flow is achieved.

VACUUM/BRUSHING THE POOL

To Vacuum the pool, first remove the float valve, then close the diverter plate over the
main drain. Install the vacuum plate above the basket and connect the vacuum hose
to the vacuum plate to proceed with the brushing operation.

MULTIPLE SKIMMERS

Rotate the diverter plate at the bottom of the skimmer over the pump port to restrict
the flow and balance the flow from each skimmer.

LOW WATER LEVELS

When the water level drops below the weir door, water will no longer flow from the
pool through the upper part of the skimmer. The pump will evacuate the remaining
water from the skimmer causing the float valve to close and water will flow from the
main drain only, or until the water level is increased. The same can occur when and if
the basket gets filled with leaves and debris.
Float Valve Assembly
542-6200
White
Mounting Ring
519-6420
White
519-6427
Gray
519-6429-BEI Beige
Equalizer Valve
540-6010
Diverter Plate & Screw
519-6470
819-4350
Lid Assembly
540-6460WW White
540-6467WW
Gray
540-6469WW-B Beige
Vacuum Plate
519-6480
810-0054.0618
