Parts Illustration - Andersen 3200 Installation Manual

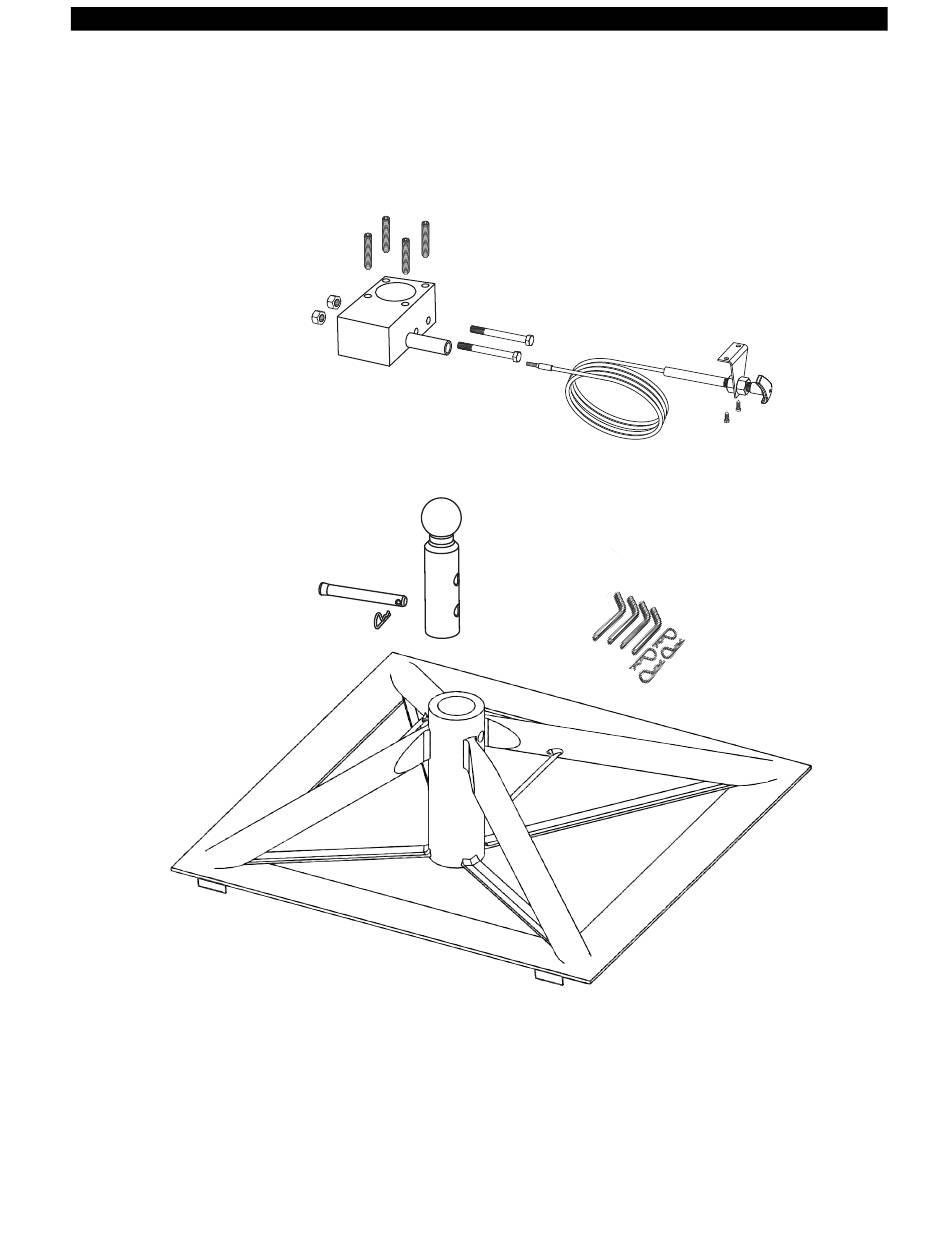

PARTS ILLUSTRATION #3200 ULTIMATE 5TH WHEEL CONNECTION –RAIL MOUNT
The complete 3200 assembly includes all items listed on this page
Base Assembly #3226
6. Ball pin with clip
7. Hardball (2-5/16") #3201
8. Rail pins with clips (4)
9. Base only (unassembled) #3209
TOOLS NEEDED FOR INSTALLATION
1/4" Allen wrench
5/16" socket for self-tapping screws
Measuring Tape
Torque Wrench capable of 50 ft­lbs of torque.
2
1
6
9
Kingpin Coupler Assembly #3231
1. Kingpin coupler block (greaseless) #3233
2. Kingpin coupler set screws (4) (40 ft-lb torque)
3. Kingpin coupler bolts with nuts, 5/8" x 5" (2)
4. Remote latch cable #3204
5. 5/16" Self-tapping screws for remote latch handle
3
7
8
4
5
