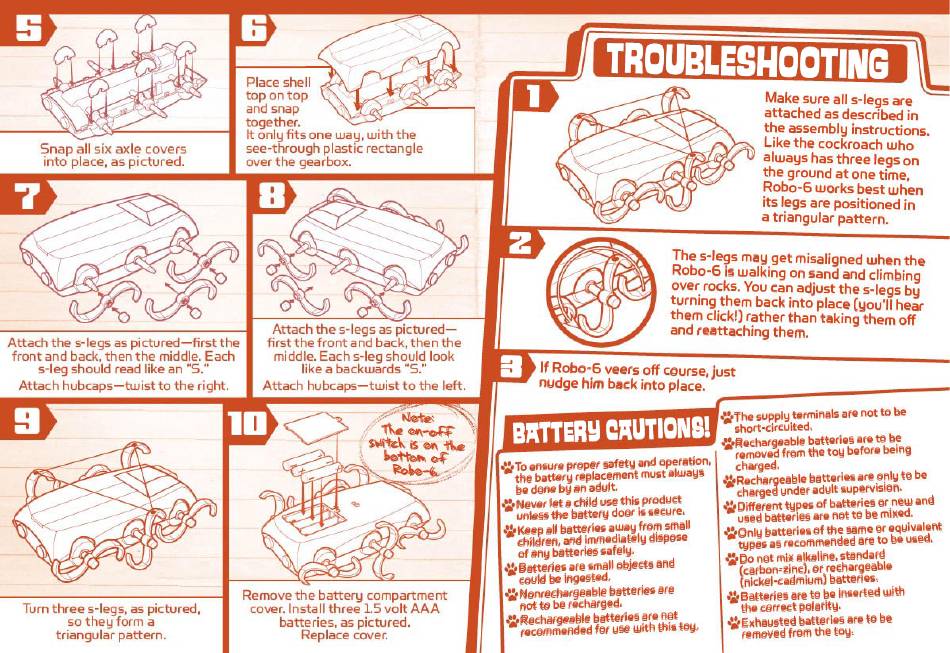

5
Snap all six axle covers
into place, as pictured.
7
Attach the s-legs as pictured—first the
front and back, then the middle. Each
s-leg should read like an "S."
Attach hubcaps—twist to the right.
9
Turn three s-legs, as pictured,
so they form a
triangular pattern.
6
Place shell
top on top
and snap
together.
It only fits one way, with the
see-through plastic rectangle
over the gearbox.
8
Attach the s-legs as pictured—
first the front and back, then the
middle. Each s-leg should look
like a backwards "S."
Attach hubcaps—twist to the left.
10
Remove the battery compartment
cover. Install three 1.5 volt AAA
batteries, as pictured.
Replace cover.
