SmartLab ROBO-BUG, AWAKEN! Quick Start Manual

®
SPECS:
Left Wing
Right Wing
Gears
Body
Bolt
Right
Rear Leg
Rear Leg
Connector
Right
Front Leg
ROBO-BUG, AWAKEN!

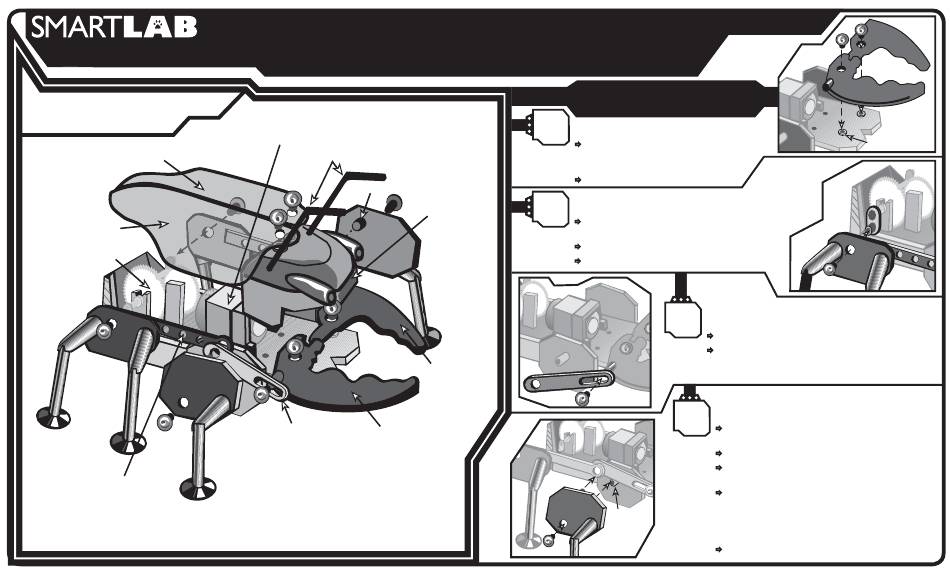

Match your pieces with the illustration below.
Motor
Antennae
Peg
Bolt
Right
Jaw Connector
Jaw Piece
TIP: For this and all other steps, the "right"
and "left" directions are as if Robo-Bug is
1
JAWS JAWS
Place the two jaw pieces onto the socket
holes. Make sure the large jaw—with the
side socket—is on the right side.
Press a bolt into each jaw piece.
2 RIGHT REAR LEG RIGHT REAR LEG
Head
Find the right rear leg. It has the number 1
engraved on it and has a connector attached.
Place the leg on the gear's right socket hole.
Press a bolt into the hole.
Left
Front Leg
Left
Jaw Piece
Socket
walking away from you.
3
CONNECTION CONNECTION
Find the jaw connector.
Slip its oblong hole over the socket that sticks
out of the large right jaw piece. Press a bolt into
the socket.
RIGHT FRONT LEG RIGHT FRONT LEG
4
Match up the round hole on the jaw connector
with the round hole on the rear leg connector
Hold the connectors in place with your thumb.
With your other hand, fi nd the right front leg. It
also has the number 1 engraved on it.
Fit the right front leg hole over the right front leg
socket while fi tting the connectors onto the peg
above the leg hole. It takes some balancing to
get everything at once, so it might take a couple
of tries.
Press a bolt into the front leg socket.
Socket
