2
1

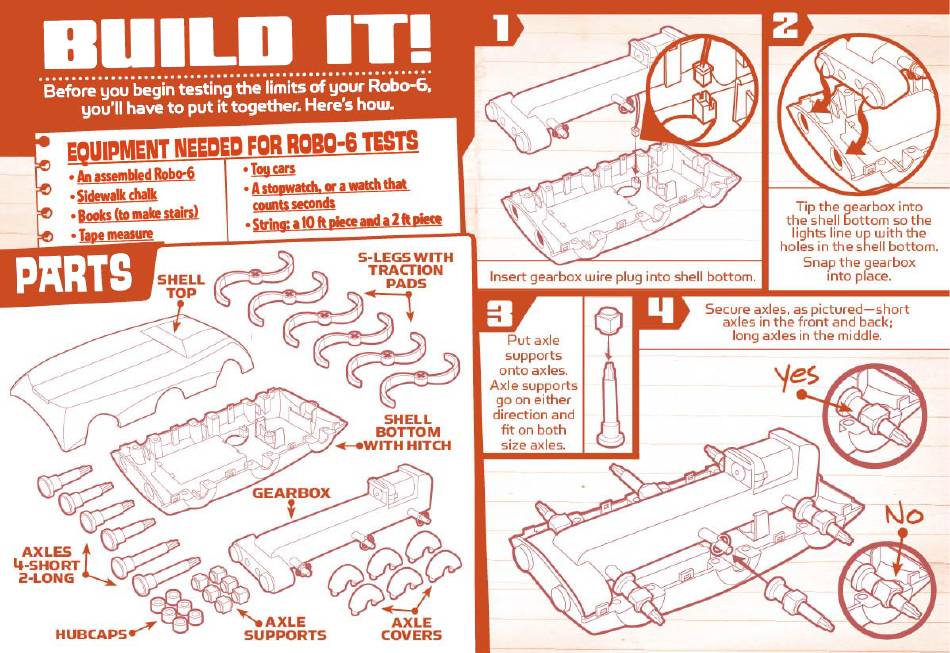

Tip the gearbox into
the shell bottom so the
lights line up with the
holes in the shell bottom.
S-legS with
Snap the gearbox
traction
into place.
Insert gearbox wire plug into shell bottom.
Shell
padS
top
4
3
Secure axles, as pictured—short
axles in the front and back;
long axles in the middle.
Put axle
supports
yes
onto axles.
Axle supports
go on either
direction and
Shell
fit on both
bottom
size axles.
with hitch
gearbox
No
axles
4-Short
2-long
axle
axle
hubcapS
SupportS
coverS
