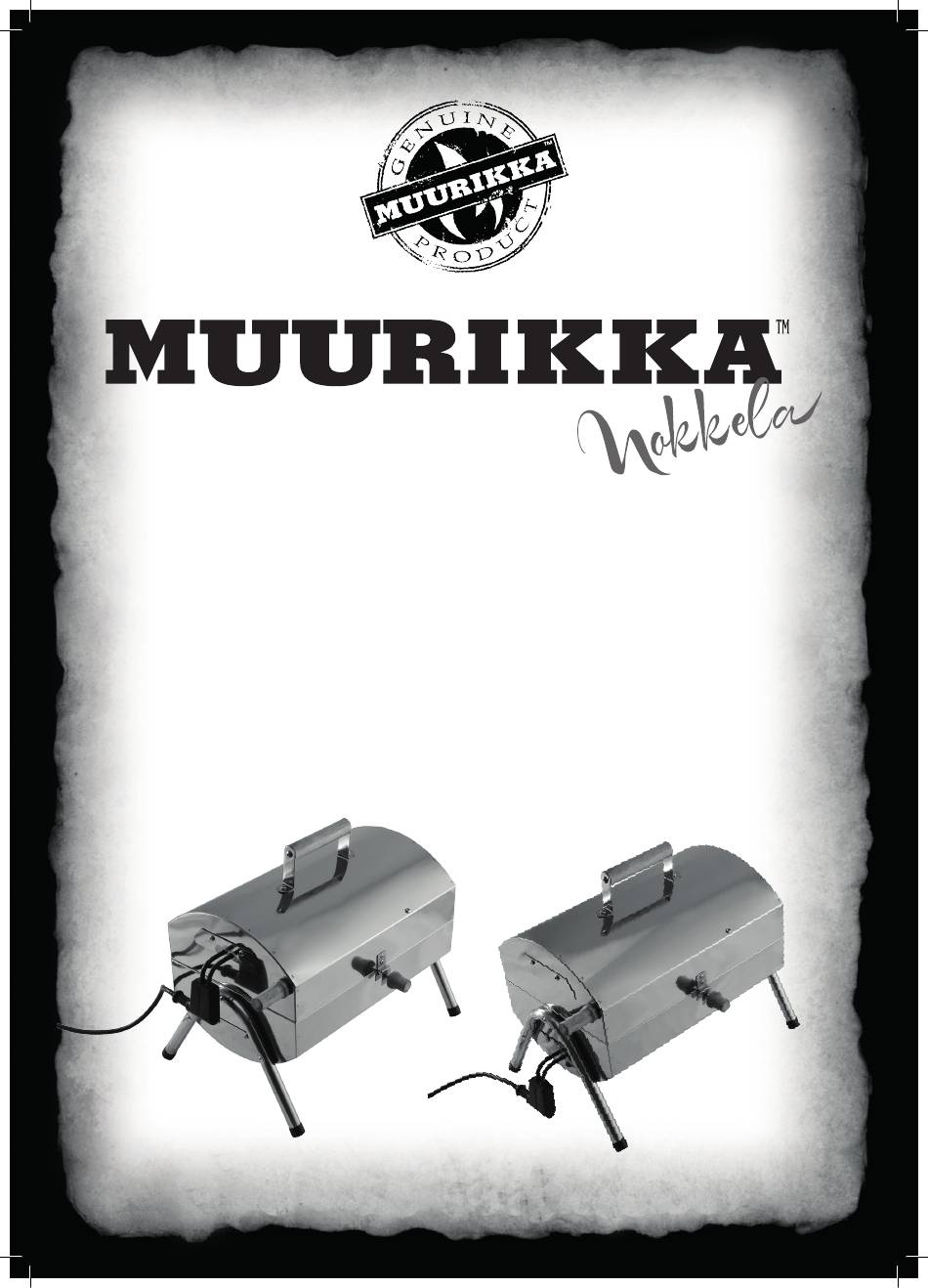

- Page 1 TO6841 Electric Grill / Smoking Oven 900 W Assembly instructions / Instructions Opa Muurikka Oy • Teollisuuskatu 8, 50130 Mikkeli, Finland • www.muurikka.fi...
-
Page 2: Assembly Instructions
Assembly instructions Parts Legs fastening Lower part Upper part Side knob fastening Heating element’s input hole Legs Fat plate Griddle Chip plate Resistor’s carrier Heat resistor’s supports Resistor support into the upper part (grilling position) Resistor supports into the lower part (smoking position) Chip plate carriers Lifting handle... - Page 3 Fasten the legs to the ends of the lower part with six screws so that the check nuts enter the lower part. Fasten the lifting handle and the side knob to the upper part. Fasten the lock knob by spinning it in place in the threaded hole in the plate in the side of the upper part.
- Page 4 Fastening the resistor First decide whether to use the device for smoking or grilling. B grilling A smoking thread the resistor in place through the resistor’s input hole into the thread the resistor in place through the resistor’s input hole into the upper part so that the resistor is left on the resistor’s support.
- Page 5 If you use the device for smoking, place the chip plate with chips onto the chip plate carriers and put the fat plate and the griddle in place. For grilling, use the fat plate and griddle only, not the chip plate. To make it easier to clean the fat plate, place a piece of aluminium foil on it.
- Page 6 Instructions Specifications: power: 900 W, 50 Hz moisture resistance: IPX4 electrical connection: 230 V, 50 Hz For outdoor use only. Connect to an earthed socket. Before first use: Wash the griddle, fat plate and chip plate. Dry carefully. Smoking: The electric resistor should be fit to the lower part of the device. Sprinkle 1-2 dl of moistened smoking chips on the chip plate and place the chip plate on the carriers.
- Page 7 ”Muurikka Nokkela is a line of products that you can easily put together and take with you. The Nokkela products are suitable for hiking or camping, in the boat or even on a balcony with not so much space. Nokkela products can be combined with other Muurikka products to build a comprehensive set of cooking supplies.
- Page 8 Screws Legs 6 x M5 x 24 Heat resistor’s supports 6 x M5 x 10 Heat resistor and fixed closing plate Closing plate 4 x M5 x 10...
