Veris HWL Series Installation Manuals

VERIS INDUSTRIES
HWL SerieS
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.

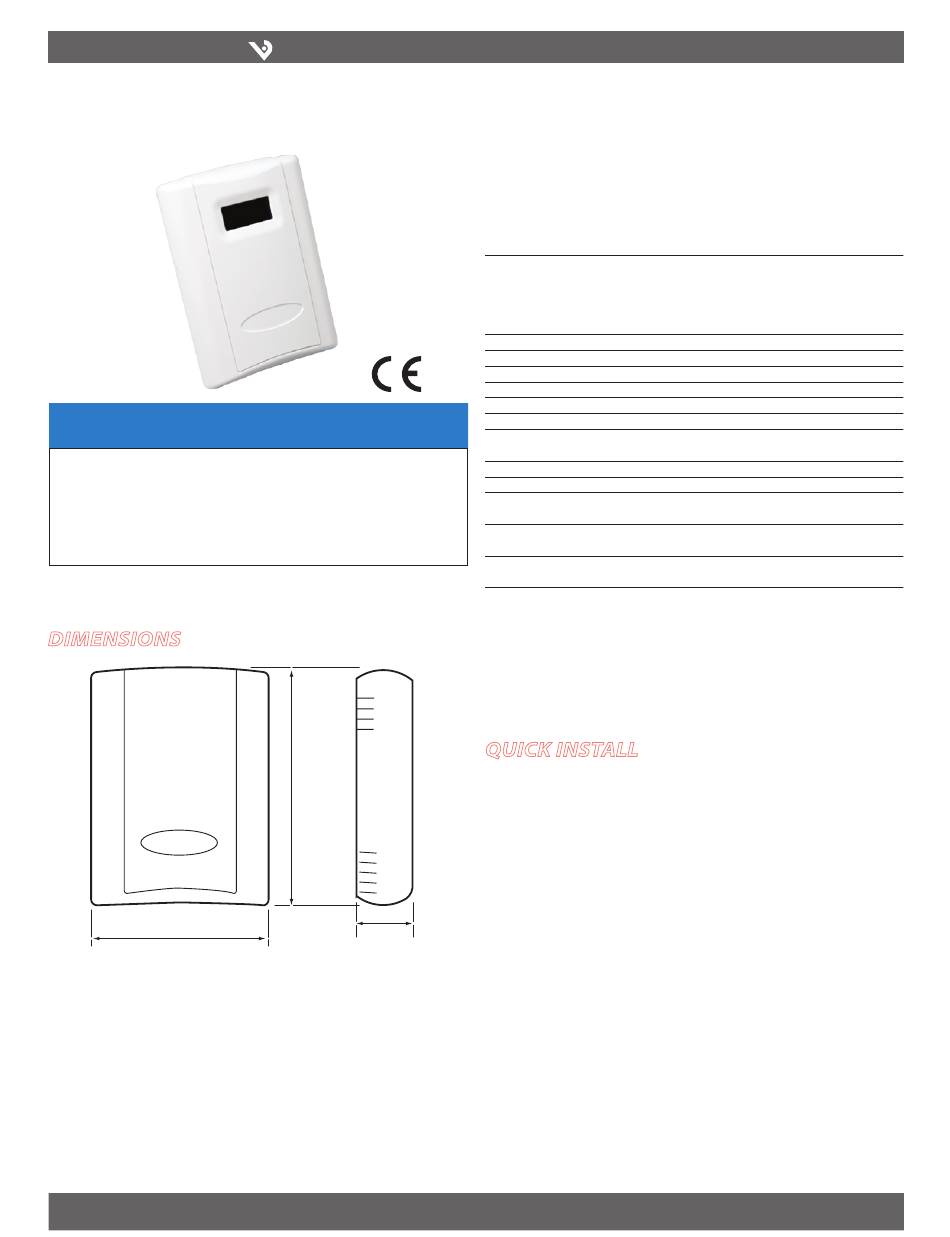

Dimensions
3.5"
(89 mm)
Z202637-0Y PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
environmental SenSorS
™
4.8"
(122 mm)
1.2"
(30 mm)
©2010 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
HWL SerieS
Wall Mount Humidity Sensor
Installer's Specifications
HS Element
Accuracy at 25°C from 10-80% RH*
Reset Rate**
Stability
Operating Humidity Range
Available
Hysteresis
Linearity
Temperature Coefficient
Analog Output
Scaling
Operating Temperature Range
Input Power***
Optional Temperature Transmitter Output
EMC Conformance – CE Option
*Specified accuracy with 24VDC supplied power with rising humidity. RTD/Thermistors are not
compensated for internal heating of product.
**Reset Rate is the time required to recover to 50% RH after exposure to 90% RH for 24 hours.
***One side of transformer secondary is connected to signal common, so an Isolation transformer
or dedicated power supply may be required.
Shielded cabling is required for conformance to EMC standards. Technical information is available
from factory upon request or is available on our website: www.veris.com
quick install
1. Select a mounting location away from ventilation sources. The sensor should be
mounted on a vertical wall, about 4 1/2 feet above the floor.
2. Affix the backplate to the wall.
3. Wire the device. Refer to wiring diagram.
4. Install Cover.
inStallation GUiDe
Digitally profiled thin-film capacitive (32 bit mathematics)
±1% at 12-60% RH in voltage output mode;
±1% at 12-60% RH in mA output mode with temp. transmitter;
±1% at 20-40% RH in mA output mode
(Multi-point calibration, NIST traceable)
±1% @ 20°C (68°F) annually, for two years
0 to 100% RH (non-condensing)
Included in Accuracy spec.
±0.1% RH/°C above or below 25°C (typical)
4-20mA version: 2-wire, polarity insensitive, (clipped and capped)
0-5V/0-10V versions: 3-wire, observe polarity
4-20mA version: loop powered 12-30VDC only, 30mA max.
0-5V/0-10V versions: 12-30VDC/24VAC, 15mA max.
Digital, 4-20mA, (clipped and capped) or
0-5V/0-10V output; accuracy ±0.5°C (±1°F) typical
EN 50081-1, EN 50082-1, EN 61000-4-4, EN 61000-4-5, EN
61000-4-3, ENV 50204, EN 61000-4-6
U.S. Patent 5,844,138
2%, 3%, or 5% models;
24 hours
1.5% typical
0-100% RH
10° to 35°C (50° to 95°F)
09101
