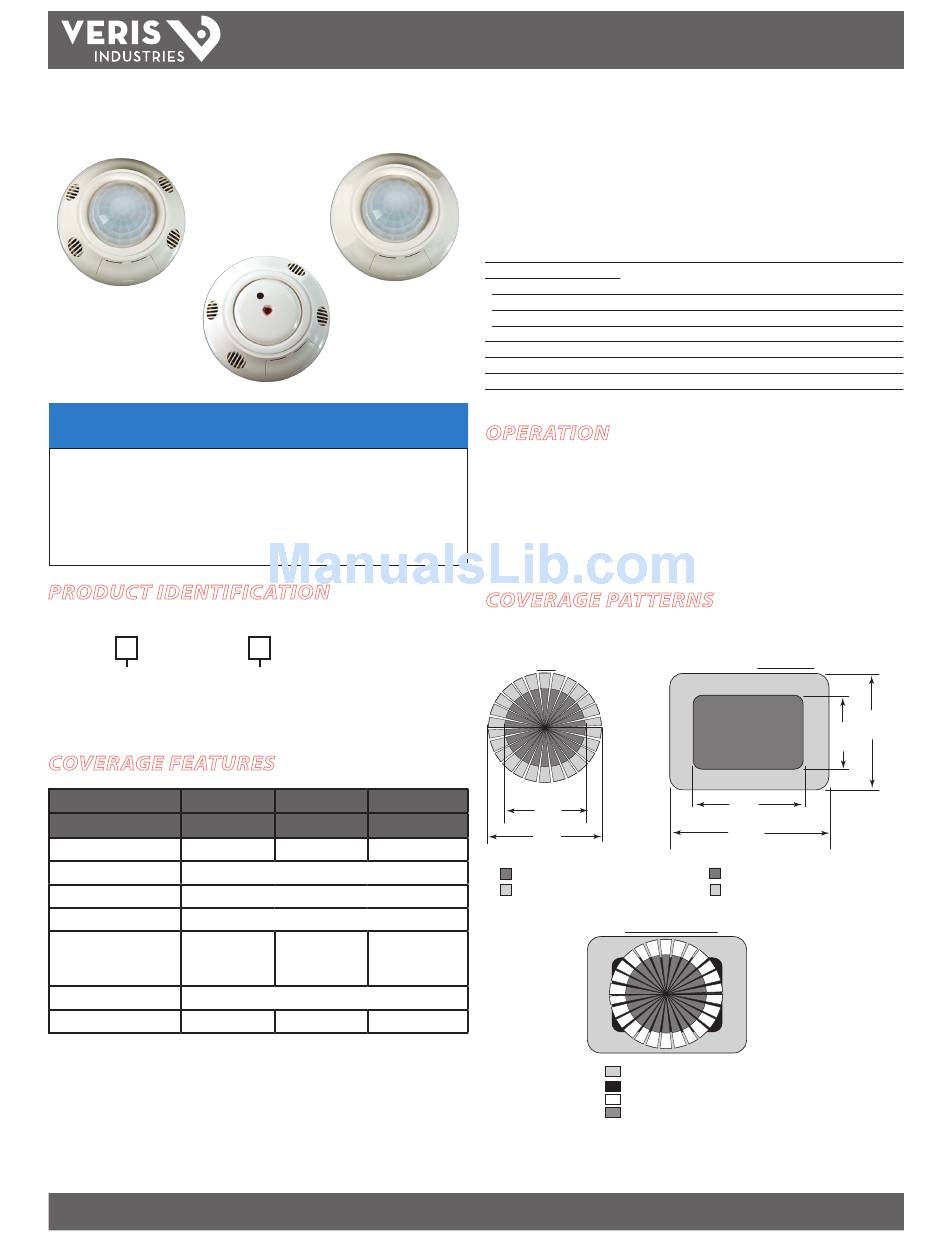

Veris MSCD2000D Installation Manual

TM
MSC SerieS
MSCD2000D
MSCU2000
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
PRODUCT IDENTIFICATION
Sensing Technology
MSC
U = Ultrasonic
D = Dual (PIR + Ultrasonic)
P= Passive Infrared (PIR)
COVERAGE FEATURES
Model MSCP1000
Technology PIR
Coverage area 1000 sq. ft.
Field of view
Ambient light level sensing
Adjustable time delay
Adjustable sensitivity 600 to 1000 sq. ft.
(60% to 100% of
max. coverage
Isolated relay
LED motion indicators 1 (red)
ZL0030-0C PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
OCCUPANCY SENSORS
MSCP1000
Coverage
1000 = 1000 Sq. Ft. (Passive Infared only)
2000 = 2000 Sq. Ft. (Ultrasonic or Dual technology only)
MSCU2000 MSCD2000
Ultrasonic Dual
2000 sq. ft. 2000 sq. ft.
360°
0.5 to 250 foot candles
15 sec. to 30 min.
200 to 2000 sq. ft. 200 to 2000 sq. ft.
(10% to 100% of (10% to 100% of
max. coverage) max. coverage)
Form C contacts for Class 2 signaling
1 (red) 2 (red/green)
©2012 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
INSTALLATION GUIDE
MSC SerieS
Ceiling Mounted Occupancy Sensors
Installer's Specifications
Input Voltage
Current Consumption @ 24 VDC:
PIR
Ultrasonic
Dual
Isolated Relay
Operating Temperature Range
Operating Humidity Range
Agency Approvals UL and cUL listed; FCC part 15 for home and office use (Class B)
OPERATION
MSC ceiling-mounted occupancy sensors are ideal for use in business and office
environments to accurately detect occupancy and automatically control lighting. The
ceiling-mount design allows the greatest possible motion sensitivity. An adjustment
panel is on the front of the sensor provides easy access to controls after the sensor is
installed.
COVERAGE PATTERNS
For a 9 ft. ceiling
PIR
25 ft
(7.7m)
32 ft
(9.8m)
Minor Motion
Major Motion
Dual Technology
Ultrasonic Major Motion
Ultrasonic Minor Motion
PIR Major Motion
PIR Minor Motion
24 VDC
21 mA nominal
34 mA nominal
37 mA nominal
Contact rating: 1A @ 24 VDC resistive
0° to 50°C (32° to 122°F)
Max. 90% RH non-condensing
Ultrasonic
42 ft
24 ft
(12.8m)
(7.4m)
30 ft
(9.2m)
48 ft
(14.7m)
Minor Motion
Major Motion
02121
