Hanna Instruments HI 775 User Manual

Dear Customer,
Thank you for choosing a Hanna Instruments Product.

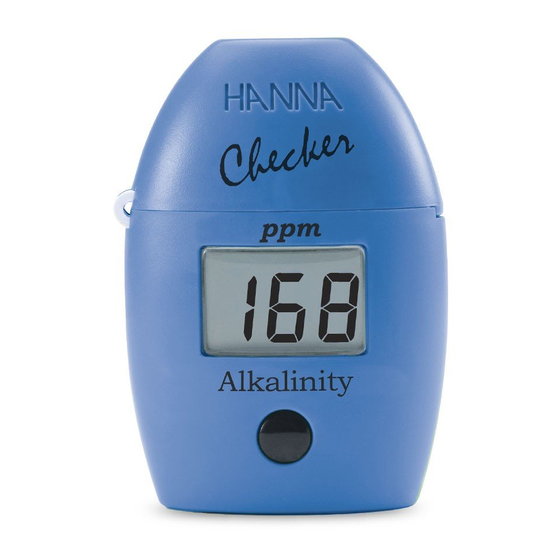

HI 775

Preliminary examination:

Alkalinity
Please examine this product carefully. Make sure that the instrument is not damaged. If
any damage occurred during shipment, please notify your Dealer.
Each HI 775 meter is supplied complete with:
• Two Sample Cuvettes and Caps
• 1 bottle of HI 775 Alkalinity Liquid Reagent
• 1 mL syringe with tip
• 1 x 1.5V AAA Battery
• Instruction Manual
For more details about spare parts and accessories
see "Accessories".
Range
Resolution
Accuracy
Typical EMC Dev.
Light Source
Light Detector
Method
Environment
Battery Type
Auto-Shut off
Dimensions
Weight
Functional description:

Errors and warnings:

Technical specifications:

0 to 500 ppm
1 ppm
±5% of reading ±5 ppm @ 25°C
±1 ppm
Light Emitting Diode @ 610 nm
Silicon Photocell
Colorimetric method. The reaction causes a distinctive
range of colors from yellow to blue to develop. This
meter has been developed to work with fresh water
samples.
0 to 50°C (32 to 122°F);
max 95% RH non-condensing
1 x 1.5V AAA
After 10 minutes of non-use
81.5 x 61 x 37.5 mm (3.2 x 2.4 x 1.5")
64 g (2.25 oz.)
1. Dust cover.
2. Cuvette with cap.
3. Cuvette holder.
4. Liquid Crystal Display.
5. Button
Light High: There is too much light to perform a measurement.
Please check the preparation of the zero cuvette.
Light Low: There is not enough light to perform a measurement.
Please check the preparation of the zero cuvette.
Inverted cuvettes: The sample and the zero cuvette are inverted.
Under range: A blinking "0" indicates that the sample absorbs less
light than the zero reference. Check the procedure and make sure you
use the same cuvette for reference (zero) and measurement.
Over Range: A flashing value of the maximum concentration indicates
the reading is over range. Dilute the sample and re-run the test.
Battery low: The battery must be replaced soon.
Dead battery: This indicates that the battery is dead and must be
replaced. Once this indication is displayed, normal operation of the
instrument will be interrupted. Change the battery and restart the
meter.
