Admiral RX600SP Quick Start Manual

Thank you for purchasing the Admiral RX600SP DSMX™ Compatible Receiver with 6-Axis Stabilizer from Motion RC! Here is a quick
guide to begin using your product. Visit
INSTALATION – The Admiral RX600SP must be installed on a surface that is horizontal when the model is in normal level
flight attitude. The long axis of the unit must be aligned with direction of flight and the servo connectors should be to
the rear of the aircraft. We highly recommend installation of the unit in the upright position. If an inverted installation is
chosen, you MUST recalibrate the orientation of the gyro. This must be done in recovery mode followed by normal
stabilization mode. See "pre-flight testing" below and watch the following video:
BINDING - Follow the process below to bind the Admiral RX600SP receiver to your radio transmitter:
1) Insert a bind plug into the port labeled "BIND/AUX2" and then apply power to your receiver.
2) Hold down the bind button on your radio transmitter, and power on the radio transmitter.
3) The red LED at the bottom of the receiver will change from quick strobe to slow strobe.
4) Release the bind button. After a moment, the red LED will turn solid. The receiver is now bound.
5) Remove power from your receiver. Turn off your radio transmitter.
6) Remove the bind plug from the "BIND/AUX2" port. This port can now be used as a fully functional 7
7) Completing this procedure will result in a 7 channel receiver, with all stabilization turned OFF.
ACTIVATING STABILIZATION (i.e. 7 channel receiver with "Stabilization Combo A" turned ON)

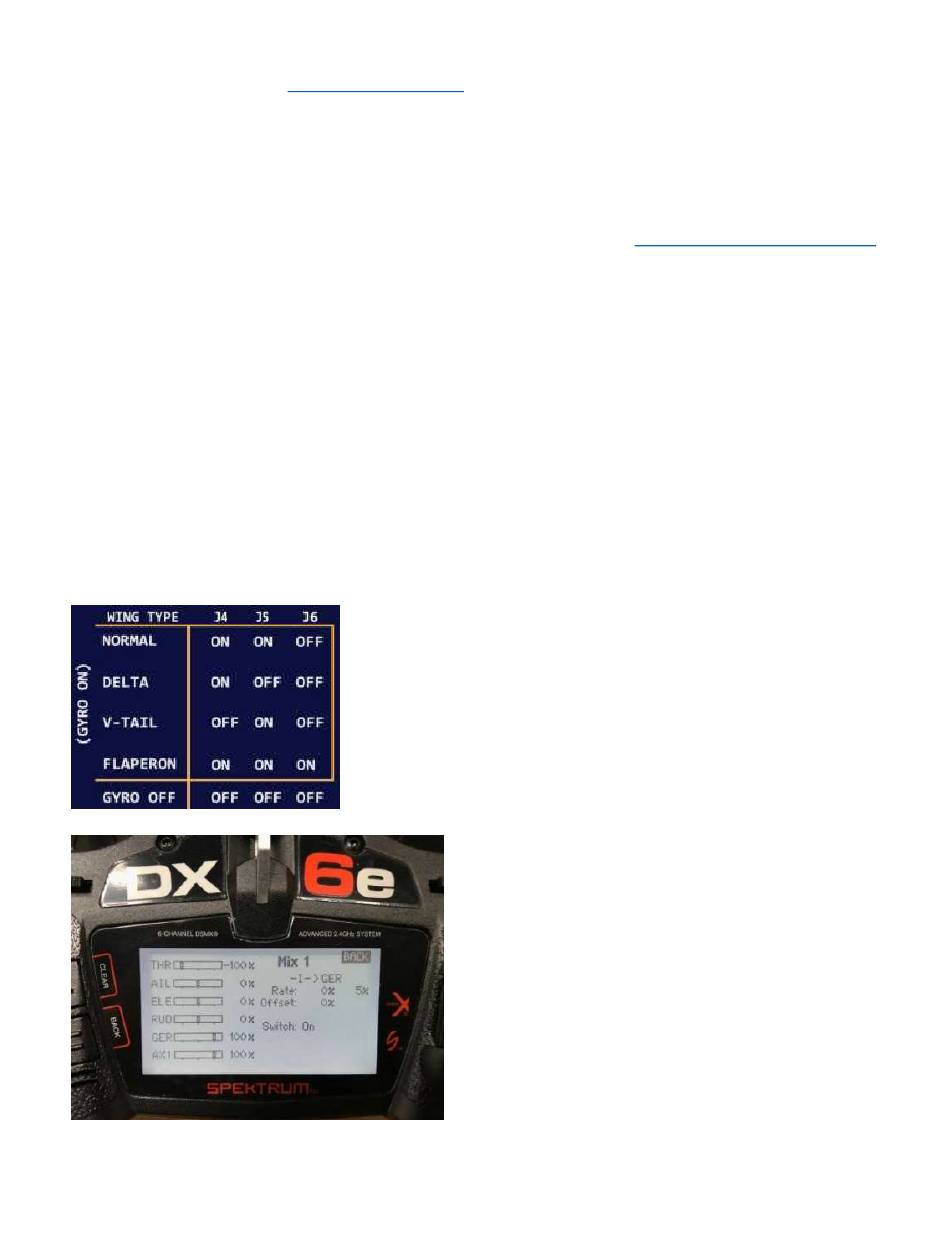

1) Move dip switches "J4" and "J5" to "ON", furthest from the servo ports. (v-tail should turn on J5 only and delta wing planes
should turn on J4 only ). See chart below:
2)
In your radio, navigate to "Mixes" and create a Mix as shown below. Mix I (bind) to GER. Rate 0% and 5%
Quick Start Guide for Admiral RX600SP Receiver
www.HobbySquawk.com for more information.
https://youtu.be/a6ZaxkxoGUg
th
channel (AUX2)
