Summary of Contents for Mono FG063

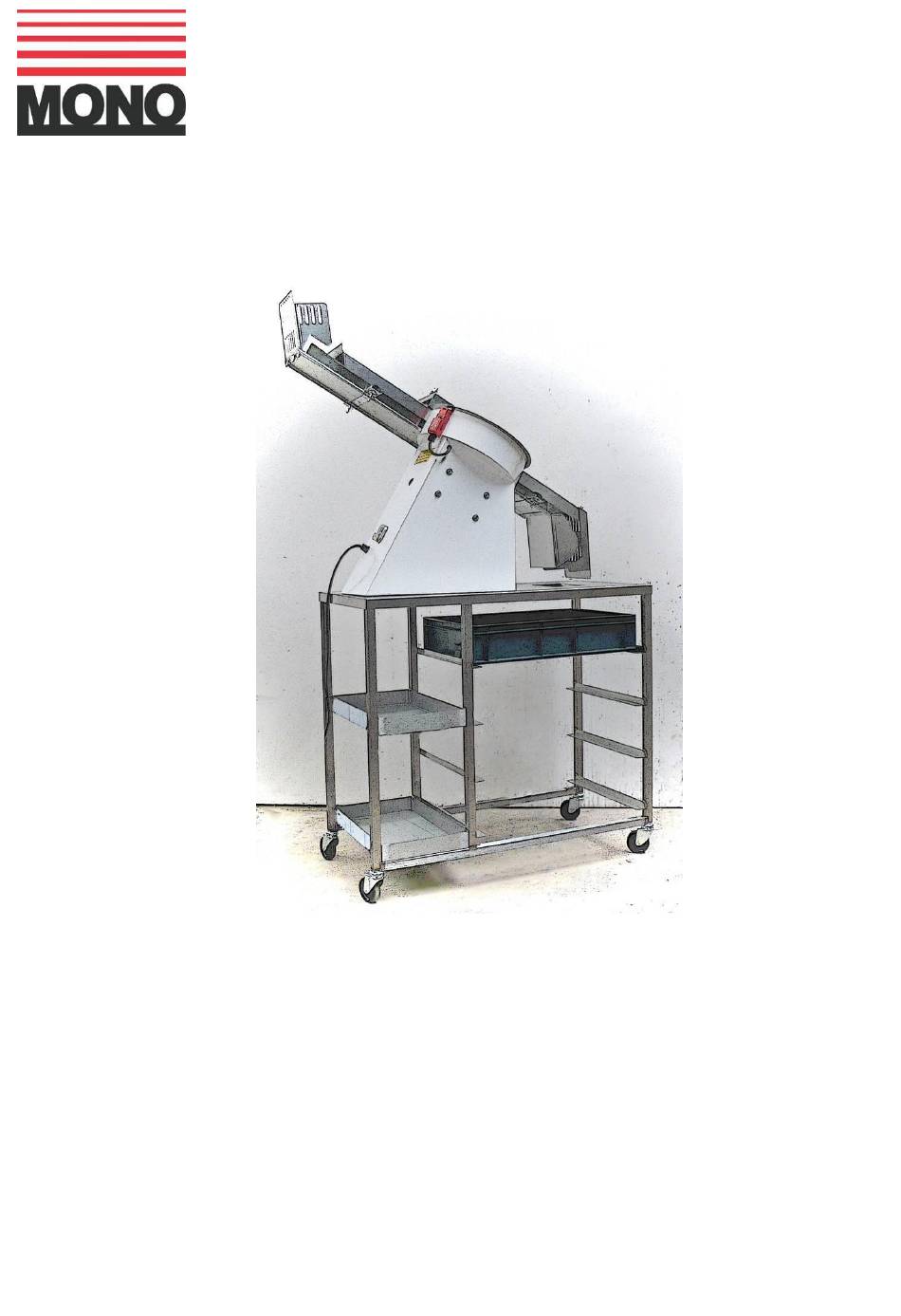

- Page 1 Enter Serial No. here.____________________________ In the event of an enquiry please quote this serial number. www.monoequip.com OPERATING AND MAINTENANCE MANUAL ROLL SLICER FG063 roll slicer RevB18 05-10-18...
- Page 2 FG063 roll slicer RevB18 05-10-18...
- Page 3 FG063 roll slicer RevB18 05-10-18...
- Page 4 IMPORTANT - FOR SAFETY REASONS THIS MACHINE MUST BE FITTED TO THE STAND BEFORE USE AND GUARDS SHOULD NOT BE MODIFIED IN ANYWAY DURING THE LIFE OF THE MACHINE. FG063 roll slicer RevB18 05-10-18...
-
Page 5: Table Of Contents
INDEX Introduction General Dimensions Specifications Safety Installation Isolation Cleaning Operating Instructions Machine Setting Roll Diameter Roll Height Cut Height Depth of cut Service & Spares 10.0 Electrical Information FG063 roll slicer RevB18 05-10-18... -
Page 6: General Dimensions
éclairs. The MONO roll slicer is easy to operate and by simple adjustment the position and depth of slice is variable. It is fitted with a circular, fully guarded, high tensile steel blade, ensuring years of trouble free service. -
Page 7: Specifications
0,37kW; Three phase; 415v / 50Hz 1.1amps per phase. SLICER STAND Weight: 35kg 20kg Noise Level: Less than 85dB Product size range : (2 ½”) Maximum Height 65mm (1 ½”) Minimum Height 38mm (5 ¼”) Maximum Width 135mm (1 ¾”) Minimum Width 45mm FG063 roll slicer RevB18 05-10-18... -
Page 8: Safety
SAFETY o The Bakery Manager or Bakery Supervisor must carry out daily safety checks. o The MONO slicer should only be used for slicing of bakery products. Do not insert anything hard e.g. knives or bakery implements etc. o All repairs and maintenance should only be carried out by authorised electricians. -
Page 9: Installation
5.0 INSTALLATION o The MONO roll slicer should be placed on a level, stable surface. o The blade should be cleaned ready for use by passing some stale rolls through the machine. Single phase electrical connection. Insert plug into a socket nearby so that the cable is not trailing across the floor. -
Page 10: Isolation
DO NOT TOUCH THE CUTTING EDGE OF THE BLADE AT ANYTIME IMPORTANT Before connecting the power. To ensure the machine is used with complete safety, always replace the three screws holding the cover on and make sure that the safety switch is engaged correctly. FG063 roll slicer RevB18 05-10-18... -
Page 11: Operating Instructions
DEPTH OF CUT Loosen thumb nuts (3) and (4) and slide guide to determine the depth of cut ‘C’ ROLL HEIGHT Adjust the roll height top guide by adjusting the top screws (5) and (6). FG063 roll slicer RevB18 05-10-18... -
Page 12: Service & Spares
MONO Queensway Swansea West Industrial Estate Swansea. SA5 4EB UK email:spares@monoequip.com Spares Tel. +44(0)1792 564039 Web site:www.monoequip.com Tel. 01792 561234 Fax. 01792 561016 FG063 roll slicer RevB18 05-10-18... - Page 13 BLADE RETAINING DISC M063-03D00400 BLADE M063K03D00500 FOOT A900-18-008 240 VOLT 1 PHASE 415 VOLT 3 PHASE MOTOR B809-74-086 MOTOR B809-74-028 SAFETY SWITCH B818-07-013 SAFETY SWITCH B818-07-013 START BUTTON B807-12-005 START BUTTON B807-12-005 CONTACTOR B801-08-033 CONTACTOR B801-08-036 FG063 roll slicer RevB18 05-10-18...
-
Page 14: Electrical Information
10.0 ELECTRICAL INFORMATION FG063 roll slicer RevB18 05-10-18... - Page 15 FG063 roll slicer RevB18 05-10-18...
- Page 16 FG063 roll slicer RevB18 05-10-18...
- Page 17 CARE SHOULD BE TAKEN WHEN THE MACHINE COMES TO THE END OF ITS WORKING LIFE. ALL PARTS SHOULD BE DISPOSED OF IN THE APPROPRIATE PLACE, EITHER BY RECYCLING OR OTHER MEANS OF DISPOSAL THAT COMPLIES WITH LOCAL REGULATIONS. (IN UK, ENVIRONMENTAL PROTECTION ACT 1990 APPLIES) FG063 roll slicer RevB18 05-10-18...
