Ohlins BM 504 Mounting Instructions

F1
R1
R2
Bike on a stand. Bike on the ground.
8
Let the hose run in soft turns and fix it with the
tie-raps (231-01) provided.
9
Refit the fairings, the carrier and the seat.
NOTE!
Make sure that all bolts are tightened to the correct
torque and that nothing fouls or restricts movement
of the shock absorber when the suspension is
being fully compressed or extended.
10
Continue your work according to the Owners
Manual, section Adjustments.
Setup data
Shock absorber length 376 mm
Shock absorber stroke 54 mm
Spring pre-load 15 mm
Rebound damping adjuster 16 clicks
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
F2
R3
Bike with rider on.
Checking sag and ride height
Front suspension
F1. Bike on a stand with the
suspension fully extended
F2. Bike on the ground without rider = ............
F3. Bike on the ground with rider
F1 - F2 = ............
Free sag
F1 - F3 = ............
Ride height
Rear suspension
R1.Bike on a stand with the
suspension fully extended
R2.Bike on the ground without rider = ........... .
R3.Bike on the ground with rider
R1 - R2 = ............
Free sag
R1 - R3 = ............
Ride height
www.ohlins.com
F3
= ............
= ............
= ............
= ............
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the

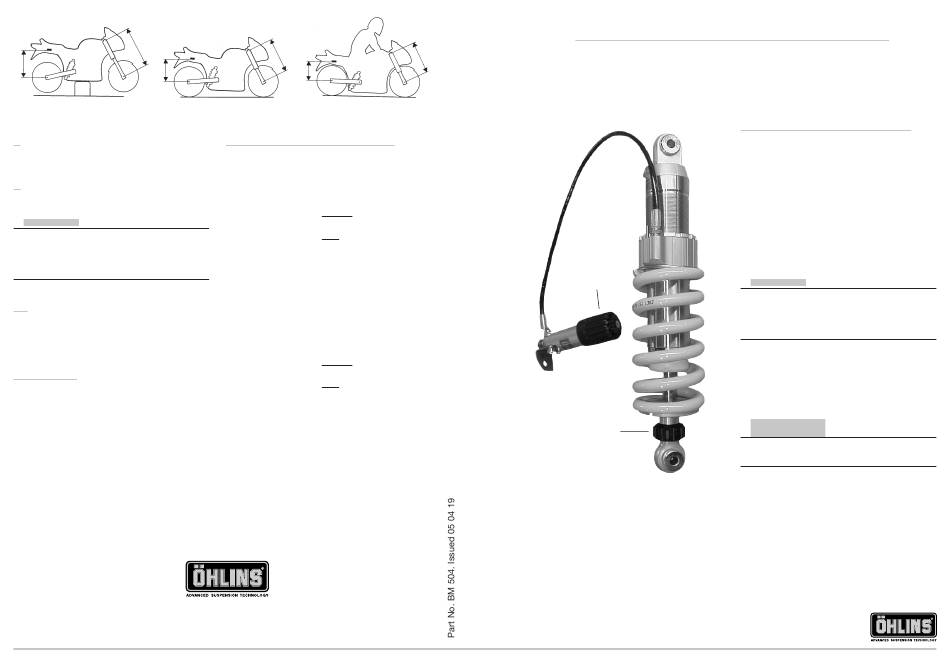

Mounting Instructions
Öhlins shock absorber kit BM 504
for BMW R 1200 RT, rear
Öhlins shock absorber 46 DRS
Your Öhlins shock absorber type 46 PRS features
the following adjusters:
Rebound damping adjuster
Adjuster wheel on the piston shaft above the end
bracket.
Spring pre-load adjuster
Adjustments are made by turning the knob on the
hydraulic adjuster. Clockwise for harder adjustment,
counter clockwise to release the pre-load.
Spring
pre-load
adjuster
When delivered the Öhlins shock absorber is
dialed to recommended settings for the specific
brand and make of the vehicle. If you have
changed the settings, check like this:
The adjusters have a normal right hand thread. Turn
the damping adjusters clockwise to fully closed (pos.
zero [0]). Turn counter clockwise to open and count
the clicks until you reach the recommended number
of clicks. See Setup data at last page.
Rebound
damping
adjuster
Do not use too much force, delicate sealing sur-
faces can be damaged.
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
NOTE!
CAUTION!
