Supplies Needed ..............................4 Steps to Come ................................5 Installation ..................................6 Overview of BinTrac Breeder Control System (Load Batch Method) ................6 Overview of BinTrac Breeder Control System (unLoad Batch Method) ..............6 Installation ..................................7 Mount the Bracket assembly ............................7 Lift the Bin ..................................

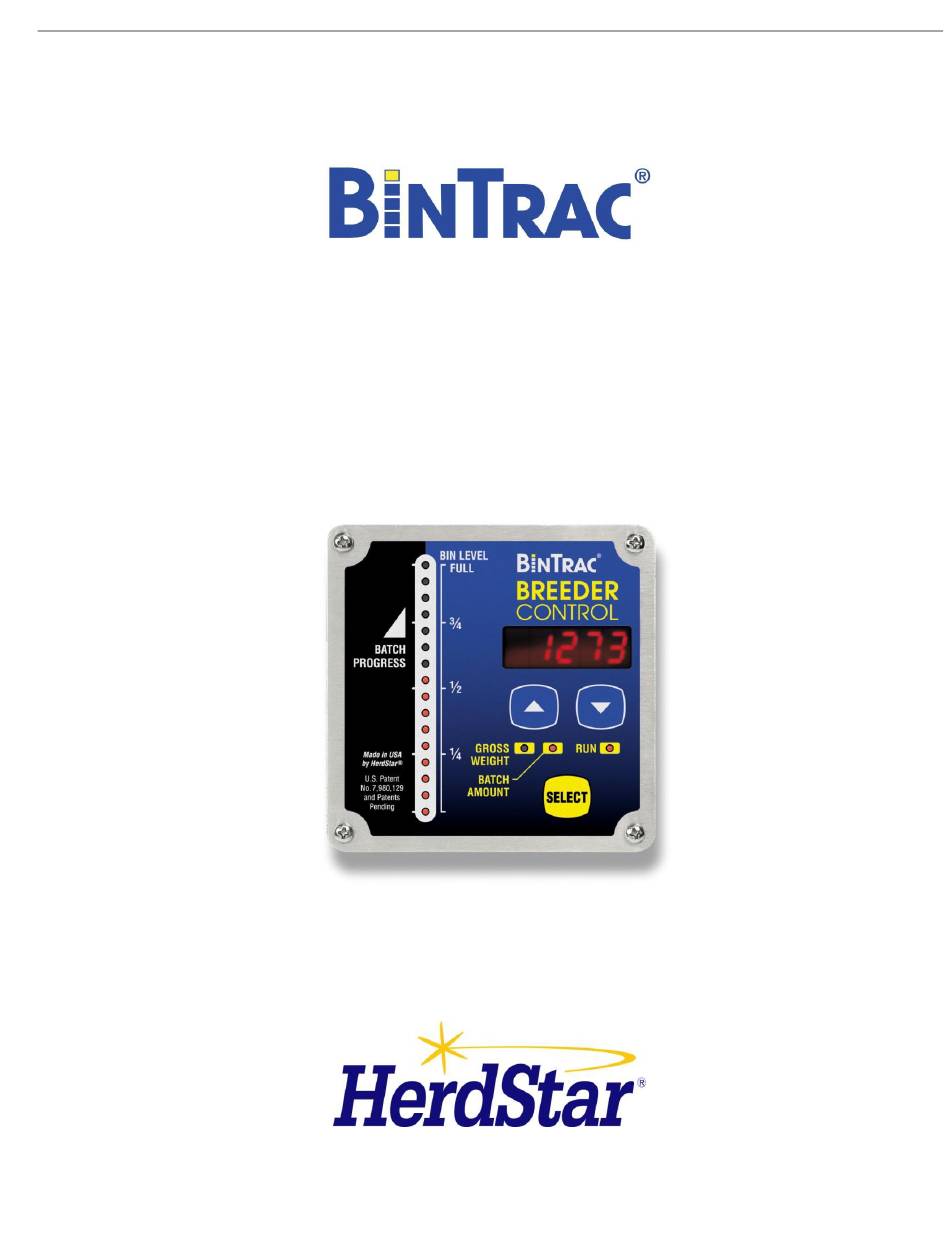

BinTrac Breeder Control This is the main unit of the BinTrac system. The BinTrac Breeder Control communicates with the Smart Summing Boxes to register the weight of feed in the bins. The feed level is computed and displayed on the LED bar graph. One bin Breeder Control can Breeder Control up to four feed bins.
• Center punch Supplies Needed • Tie Wraps (2 per leg) • Wire Nuts (blue or orange, 4 per bin) • Communication Wire (4 Cond. 20 – 22 awg, shielded) BinTrac Breeder Control Installation Manual Ver. 1.03 Part Number MAN-000015...
Installation Manual Steps to Come There are several steps to install the BinTrac Breeder Control system. To give an overview of the installation process, these steps are outlined below. • Mount the ‘A’ frame • Lifting the bin • Anchor the ‘A’ frame •...
Refer to the Operator’s Manual for further instructions for setting up the controller for either LOAD or unLOAD operation. Overview of BinTrac Breeder Control System (Load Batch Method) BinTrac Breeder Control System allows the user to select the amount of feed required for the day.
IMPORTANT: MOUNT THE BRACKET ASSEMBLY ONE (1) LEG AT A TIME! DETACHING MORE THAN ONE LEG AT A TIME COULD ALLOW THE BIN TO TIP OVER! INJURY OR DEATH COULD RESULT! BinTrac Breeder Control Installation Manual Ver. 1.03 Part Number MAN-000015...
16. Tighten the nuts of the anchor bolts using a socket or hammer drill to anchor the bracket assembly. Torque to 55 ft.-lbs. Repeat Steps 1 – 13 for all bin legs before continuing to the next step. BinTrac Breeder Control Installation Manual Ver. 1.03 Part Number MAN-000015...
Then tighten the dome nut until the cable cannot be pulled out of the box. 26. Set the bin to A using the dip switches inside the summing box. (Figure 8) B IN Figure 8: Set appropriate bin using dipswitch. BinTrac Breeder Control Installation Manual Ver. 1.03 Part Number MAN-000015...
Wiring the Bintrac Power Supply 27. The Power Supply can be mounted on the outside of the building near an outlet. If the BinTrac Breeder Control is installed in an office or building walkway, the Power Supply can be installed in the same area, near an outlet.
Installation Manual Addendum A Unload Wiring Diagram Below is a reference diagram for wiring up the Breeder Control for an Unload Batch Method: Please reference BINTRAC KIT P/N KIT-000028 BinTrac Breeder Control Installation Manual Ver. 1.03 Part Number MAN-000015...
Installation Manual Addendum B Load Wiring Diagram Below is a reference diagram for wiring up the Breeder Control for a Load Batch Method: Please reference BINTRAC KIT P/N KIT-000028 BinTrac Breeder Control Installation Manual Ver. 1.03 Part Number MAN-000015...
Herdstar LLC., although such parts may be covered by separate warranties of the respective manufacturers. This warranty set forth above does not apply if all components of a system are not supplied by Herdstar LLC. or if the goods are not purchased from and installed by an authorized distributor or company warehouse, or installed and operated in accordance with Herdstar LLC.’s specifications and instructions.
