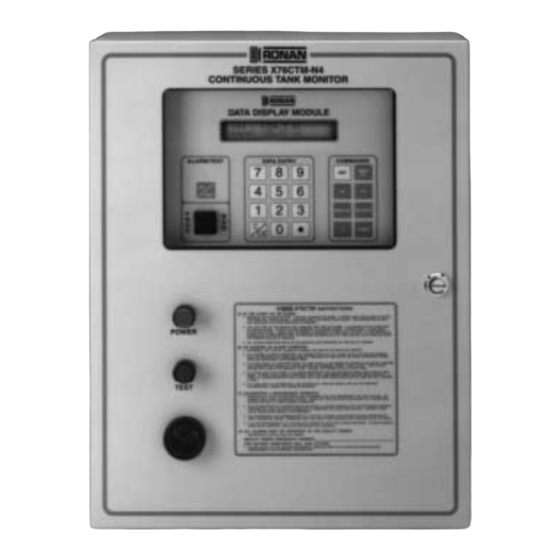

Ronan Engineering X76CTM series Instructions And Operating Manual

Continuous tank monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions
and
Operating Manual
SERIES X76CTM
CONTINUOUS TANK
MONITORING SYSTEM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X76CTM series and is the answer not in the manual?

Questions and answers

Related Manuals for Ronan Engineering X76CTM series

Summary of Contents for Ronan Engineering X76CTM series

  • Page 1 Instructions Operating Manual SERIES X76CTM CONTINUOUS TANK MONITORING SYSTEM...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1.0 Introduction ..............2.0 General Description .
  • Page 3 TABLE OF CONTENTS (CONT.) 12.0 Drawing (Cont.) Tank Leak Sensors, Models LS-3, LS-3s, and LS-3ss ....... . . Tank Leak Sensors, Models LS-7 and LS-7s .

  • Page 4: Introduction

    1.0 INTRODUCTION 3.0 SAFETY RULES The X76CTM Continuous Electronic Tank Moni- 3.1 Intrinsic Safety toring System is designed to tighten inventory con- Hazardous atmospheric mixtures include all trol of fuels and other liquids stored in underground explosive or ignitable air mixtures involving and aboveground tanks.

  • Page 5: General Safety

    LS-3s, LS-3ss, LS-7, LS-7s, LS-30, LS-100, tem specifications for further information or HVA; Pressure Switch JT-2P; and Vacuum call Ronan Engineering for assistance. Switch JT-2V), must be installed in a separate, dedicated conduit, to comply with intrinsically 6. All external equipment used with the sys- safe requirements.

  • Page 6: Tank Setup Warranty Registration And Checkout

    2. Repair any printer jam right away before forms must be completed and returned to moving to the next operation. Repair printer Ronan Engineering Company to validate the jams by removing all foreign objects from warranty. The Checkout Form, Part 1, includes the printer area.

  • Page 7: Keypad External Push-Button Functions

    Figure 1: Keypad Push-button Layout. 4.0 KEYPAD EXTERNAL PUSH- 4.3 Commands Keypad BUTTON FUNCTIONS Enter Key [ENT]. Used for data entry. Tank Number Key [TANK NO]. Prompts user A TEST push button and a green POWER indicator to select tanks 1 through 8. It can also be used are provided in the external layer of the panel.

  • Page 8: User Login/Logout

    4. Daily Sales Report. Prints the amount of nal Identification Number (PIN) for the other users. product sold per tank for the last 24 hours Any user can change their own PIN at any time. (from midnight to midnight) and includes The procedure for changing the PIN is described in the number of days of available inventory Section 10.

  • Page 9: Default Display

    Assigned on 5 4. Configure initial product levels. Assigned on 6 5. Configure tank-based alarms: low, low-low, Assigned on 7 high, high-high and maximum water level alarm. Assigned on 8 Configuration of the station’s name and address, the Press the [TANK NO] key to toggle letter case. contacts, relays, the annunciator, and the product information is order independent and can be done at any time.

  • Page 10: Function Codes

    The device is programmed at the factory with the Event Query Filter manufacturer’s name, address, and city. Print Report: [HI, LO] Station Name Low-Low Volume Alarm Ronan Engineering Company Disable Tank Enable Tank 95, Station Address Enable Theft Monitor Sets the station address.
  • Page 11 The X76CTM displays the following strap chart table. 46, Date & Time Format [HI, LO] (Y2K Compliant) User defined 0/C2 (4) 1000 Owens-Corning Use this function to set up the time and date for- 0/C2 (6) 2500 Owens-Corning mat. Use the [HI] and [LO] keys to scroll through 0/C2 (6) 4000 Owens-Corning the selections.
  • Page 12 7. Enter the dipstick level at the probe opening. iWARNING: The tank parameters are changed using Function 74. For the tank diameter, the length 8. Enter the dipstick level at the fill opening. of the probe will automatically recalculate to reflect the new diameter.
  • Page 13 Enter product expansion during transfer is not considered as delivery. To min- 0.00065 imize confusion, the user can set up a value that will eliminate the small levels. The default threshold Enter coefficient of expansion and press [ENT.]. is 200 gallons. Use Function 43 to change the Function 92 is used when the product name cannot delivery threshold and press [ENT.] to save.
  • Page 14 be conducted. The higher it is, the easier it is to 68, Manifolds to t# 12345678 enter a leak test, but the data could be noisier and The X76CTM allows for the combining of two or the results incorrect . more tanks to generate the combined product vol- Leak scatter ume of physically manifolded tanks.
  • Page 15 Edit the relay name, and press [ENT.]. (By default, Leak Detected. This event is made active when a test with a maximal duration was ended, the proba- the relays are named RELAY1-4). bility of leak detection is higher than 95%, and the Enter relay name leak detected was higher than the threshold (typi- Relay 1...
  • Page 16 Setup contact (HI,LO)_1 62, Enter Current Code For: Input01 To make a change to the PIN code, use Function Use [HI] and [LO] keys to scroll through the avail- 62. For security purposes, the X76CTM is designed able contact listings. Press [ENT.] at the selected so that only the administrator can change user contact and start editing.
  • Page 17 100, Browse Events 103, Print Report [HI, LO] This function is used for uncondition- Function 103 prints a hard copy of the following report selections: al and unfiltered display of the events 1. Active Alarms Report. Prints all alarms that are currently from the event log, always beginning active (all active contacts and tank level limit set points).
  • Page 18 9. Contacts Settings. Prints the contact settings: type (normally open/normally closed), current state alarm/ normal), and the relay to be activated depending on the Report 3: Shift Report. Report 5: CSLD Report. Report 4: Daily Sales Report.
  • Page 19 Ronan Engineering LDM gauge probe inputs. 21200 Oxnard Street Woodland Hills CA 91367 10. Relays Settings. Prints the current settings for the Annunciator settings 76CTM relays. For each relay ** 08/06/99 10:29:08 **...

  • Page 20: Setting The User Pin Number

    (alarm/normal), and for remote alarm indication Ronan Engineering LDM the relay to be activated 21200 Oxnard Street of multiple alarms (reflash). Woodland Hills CA 91367 depending on the contact state. This report prints the...

  • Page 21: Modbus Support

    system will prompt again for the new user 4 trator can access and alter the user codes. PIN number. Enter the new code. Function 62 is used to change the PIN codes. During new code entry, the numbers are sub- 10.2 Modbus Support ™...

  • Page 22: Specifications

    factory for other material types). support the floating point format. Although the Modbus™ register in the Read Multiple Float Material: Ceon-D, X95040XB; 316SS, Registers Command (03) is 16 bit wide, 95140XB. each floating point or unsigned long number Repeatability: .02% or full range. will occupy 2 registers.

  • Page 23: Tank Leak Sensor Models Jt-2P And 2V

    Switch: Classification: Class I, Groups A, B, C, and Type: DPDT, N.C. top, N.O. bottom. D; Class II, Groups E, F, and G. Rating: 10 VA. Switch: Float Material: Polysulfone. Type: SPDT, N.O. (shelf condition). Pressure: 50 psi maximum. Rating: 10 VA. Leads: 20 AWG.

  • Page 24: Drawings

    X76CTM INTERNAL WIRING DIAGRAM...
  • Page 25 0.312” Dia. 5.625” Dia. (7.67 mm) 4 Plcs. (142.88 mm) DATA DISPLAY MODULE ALARM/TEST DATA ENTRY COMMANDS 13.500” (342.90 mm) 15.500” (397.70 mm) SECT A-A 1.000” 8.000” (203.00 mm) (25.40 mm) 12.000” (304.80 mm) MODEM PORT (COM 1) SERIAL PORT (COM 2) AC POWER INPUT I.S.

  • Page 26: X76Ctm Assembly Drawing

    Enclosure Cover #4 Intertooth Lockwasher X76B469 Washer, Horn NOTES: X76B653 Modem Mounting Plate 1. For wiring diagram reference Ronan Engineering Drawing X76B663 Clamp, Right Number X76D655. X76B664 Clamp, Left 2. For sub assembly drawings reference Ronan Engineering Drawing Numbers X76D48 and X76C650.

  • Page 27: X76Ctm Typical Installation Drawing

    BUSHING INSIDE WALL WIRE FROM PROBE WATERTIGHT PRODUCT WIRE JUNCTION BOX CONNECTOR (COVER REMOVED) WATER SHIELD GROUND OPTIONAL WIRE TANK TO NEXT PROBE WIRE CONDUIT "WATERPROOF JUNCTION" DETAIL A NOTE: Reference Ronan Engineering Drawing Number X76D510. X76CTM TYPICAL INSTALLATION DRAWING...

  • Page 28: X76Ctm System Wiring Information

    X76CTM TANK MONITOR NOTE: Reference Ronan Engineering Drawing Number X76D515. X76CTM SYSTEM WIRING INFORMATION...

  • Page 29: X76Ctm Modem And Serial Cable Assemblies

    DDM090003BSK1 Back Shell with Hardware DDM250003SK1 Back Shell with Hardware BROWN NOTES: Unless otherwise specified. BLUE 1 Jacket strip Length is 1.000 inch. Reference Ronan Engineering Drawing Number X76C668. CABLE WIRING PART NUMBER PIN 1 TO J3 SERIAL CONTROLLER PORT...

  • Page 30: X76Ctm 9 Pin And 25 Pin Cable Assemblies To Host Rs232 Cable

    9 PIN CONNECTOR CABLE ASSEMBLY NOTE: Cable length per customer order. Maximum length 25 ft. X76CTM HOST 6282-6PG-3XX DE9S 9 Pin Cable Assembly Item Model No. Description 9536 Cable 6282-6PG-3XX Connector DE9S Connector, 9 Pin (Female) DDM090003BSKI Back Shell DB110963-1 Cover 25 PIN CONNECTOR CABLE ASSEMBLY DE25P...

  • Page 31: Tank Leak Sensors, Models Ls-3, Ls-3S, And Ls-3Ss

    High level alarm for overfill prevention in the tank sump leak sensor. Piping sump leak sensor. Secondary containment liquid level monitor. Pump start/pump stop level sensor. NOTE: Reference Ronan Engineering Drawing Number X76B545 TANK LEAK SENSORS MODEL LS-3, LS-3S, AND LS-3SS...

  • Page 32: Tank Leak Sensors, Models Ls-7 And Ls-7S

    TYPICAL INSTALLATION 6. Match tag mark on signal cable and pull string. IN DOUBLE WALL TANK 7. LS-7 (LS-7s) is now positioned at the tank bottom, centerline. NOTE: Reference Ronan Engineering Drawing Number X76B546 TANK LEAK SENSOR MODEL LS-7 AND LS-7S...

  • Page 33: Tank Leak Sensor Model

    GREEN WHITE BLACK 1/2 NPT 0.875 in. CONNECTION ® SWITCH LISTED 48RO FLOAT TO CONTROL PANEL RISER CAP 7.750 in. RISER INTERSTICE RESERVOIR LIQUID TANK WALL TYPICAL LS-30 POSITIONING FLOAT 1.310 in. INSTALLATION INSTRUCTIONS LS-30 FOR DOUBLE WALL FIBERGLASS TANKS WITH INTEGRAL RESERVOIR Lower sensor on cable until half* of sensor is submerged in liquid.

  • Page 34: Tank Leak Sensors, Models Jt-2P And Jt-2V

    Vac or other wiring is allowed in the same conduit. capped off to prevent a short circuit to ground. Pressurize the tank interstice with compressed air NOTE: Reference Ronan Engineering Drawing Number X76B556 TANK LEAK SENSORS MODELS JT-2P & JT-2V...

  • Page 35: X76Ctm Ribbon And Paper Replacement

    3. Gently feed paper into the feed slot while depressing the feed button, until paper begins to feed through. 4. Close the printer and tighten captive screws. NOTE: Reference Ronan Engineering Drawing Number X76C712 X76CTM PRINTER RIBBON AND PAPER REPLACEMENT...

  • Page 36: Checkout Form, Part 1

    Leak Detect Stop Time (Lines) Relay #1 Relay #2 Relay #3 Relay #4 Contact Inputs To validate warranty, return one copy of Part 1 and one copy of WARRANTY REGISTRATION (Part 2) to: RONAN ENGINEERING COMPANY, 21200 Oxnard Street, Woodland Hills, CA 91367...

  • Page 37: Warranty Registration Form, Part 2

    ______________________________________________________________________________________________ ______________________________________________________________________________________________ WARRANTY: Ronan Engineering warrants equipment of its own manufacturing to be free from defects in material and workmanship under normal conditions of use and service, and will repair any component found to be defective, on its return, transportation charges prepaid, within one year of its original purchase. This warranty carries no liability, either expressed or implied, beyond our obligation to replace the unit which carries the warranty.
  • Page 38 RONAN ENGINEERING COMPANY RONAN ENGINEERING LIMITED U.K. RONAN ENGINEERING LIMITED 21200 Oxnard Street 1 Tilley Road 32 Bermondsey Road Woodland Hills, CA 91367 U.S.A. Crowther Industrial Estate Toronto, Ontario, Canada M4B1Z5 (800) 327-6626 w FAX (818) 992-6435 Washington, Tyne and Wear (416) 752-0310 w FAX (416) 752-8072 E-mail: info@ronan.com...
