Summary of Contents for JOHNY VAC JVBP6

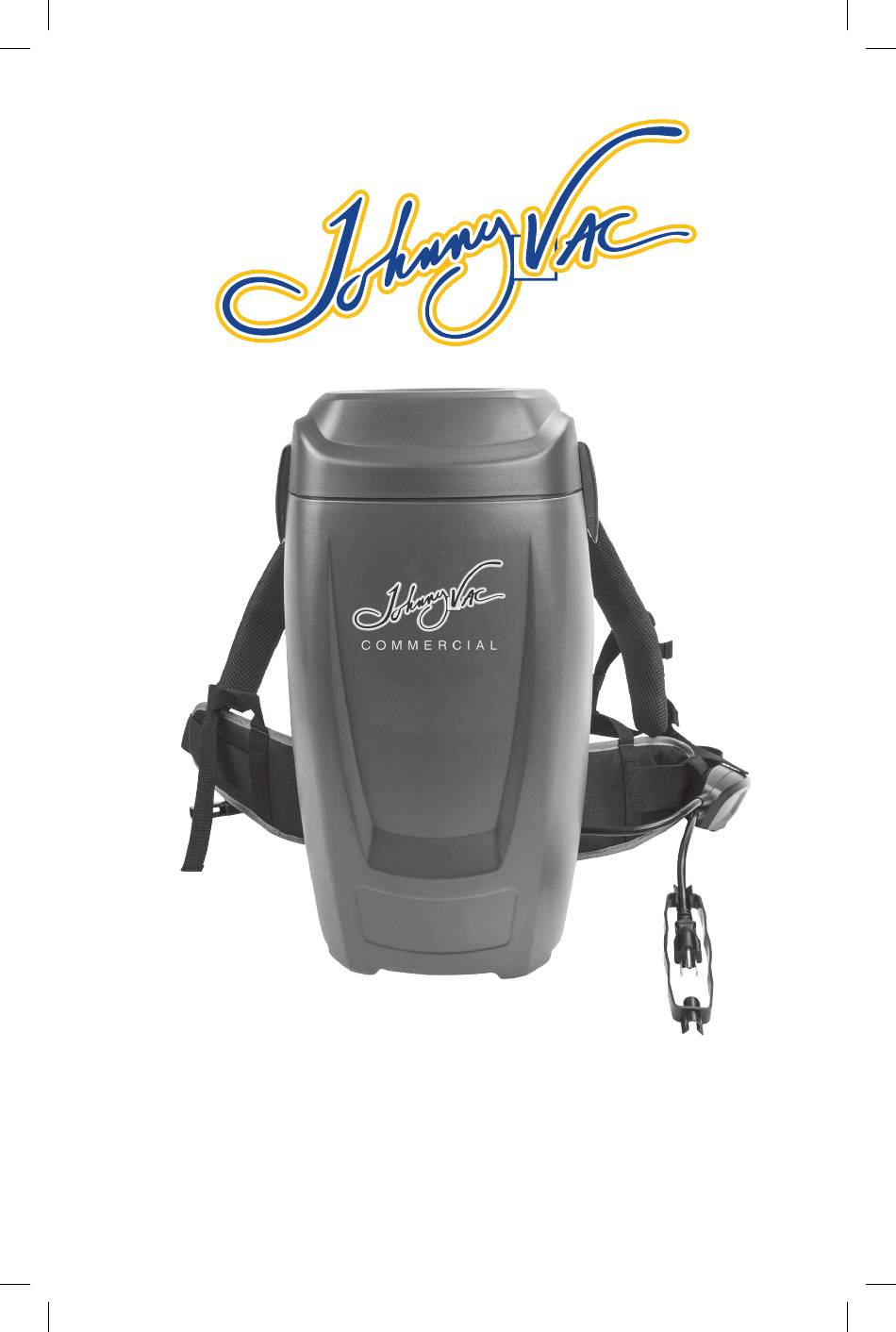

- Page 1 U S E R G U I D E JVBP6 Backpack Vacuum Cleaner...
-
Page 2: Table Of Contents
JVBP6 User Manual Table of contents: 1- Backpack Vacuum Cleaner Overview ..3 2- Important Safety Instructions ...... 4 3- Operations ........... 6 4- Maintenance and Care ........ 7 5- Troubleshooting .......... 8 6- Parts List ..........10 JVBP6 User Guide... -
Page 3: 1- Backpack Vacuum Cleaner Overview
1. Backpack Vacuum Cleaner Overview 1. LID LATCH 2. SHOULDER STRAP 3. ADJUSTABLE WAIST BELT 4. SWITCH BOX 5. HOSE INLET 6. WAND EXTENSION CORD 8. RUG BRUSHES 9. CREVICE TOOL 10. DUST & UPHOLSTERY BRUSHES User Guide JVBP6... -
Page 4: 2- Important Safety Instructions
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving part. • Turn off all controls before plugging or unplugging vacuum cleaner. • Use extra care when cleaning on stairs. JVBP6 User Guide... - Page 5 This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. User Guide JVBP6...
-
Page 6: 3- Operations
Tighten nut until tools in place. Tools will swivel when using side to side motion. Note: never take note off wand or risk losing metal ring inside nuts. The metal ring holds tools in place in its slotted groove. JVBP6 User Guide... -
Page 7: 4- Maintenance And Care
Clean or change it as necessary. Clean the cloth bag by simple shake it well. Note: very fine powders and substances may clog the bag. Please remember to empty bag often so that vacuum cleaner can efficiently operate. User Guide JVBP6... -
Page 8: 5- Troubleshooting
REPLACE WITH NEW WAND IS NOT PROBABLY INSTALLED SECURE PROPERLY TO ENSURE NO AIR LEAKS TOOL NOT WORKING PROPERLY MAKE SURE TOOL IS ON THE WAND PROPERLY AND TIGHTLY AIR PATH OBSTRUCTED CHECK FOR ANY AIRFLOW OBSTRUCTIONS JVBP6 User Guide... - Page 9 WORKING MOTOR THERMAL PROTECTOR ALLOW CLEANER TO COOL DOWN, AND ACTIVATED DUE TO BLOCKAGE CHECK THE VACUUM DUCTS AND FILTER FOR BLOCKAGE ON/OFF SWITCH FAULT CONTACT AN AUTHORIZED SERVICE CENTER MOTOR DEFECTIVE CONTACT AN AUTHORIZED SERVICE CENTER User Guide JVBP6...
-
Page 10: 6- Parts List
BX-35 Rug brush BX-8 Bag support screw BX-18 Thermal baffle BX-27 Carry handle screw BX-36 Dusting brush BX-9 Bag support BX-19 Motor seal BX-28 Carry handle BX-10 Motor shroud seal BX-20 Noise muffle sponge BX-29 Shoulder strap screw JVBP6 User Guide... - Page 12 Residential and commercial vacuum cleaner specialist PARTS, ACCESSORIES & VACUUM BAGS VISIT OUR WEBSITE AT WWW.JOHNNYVAC.COM...
