Summary of Contents for JOHNY VAC JV222

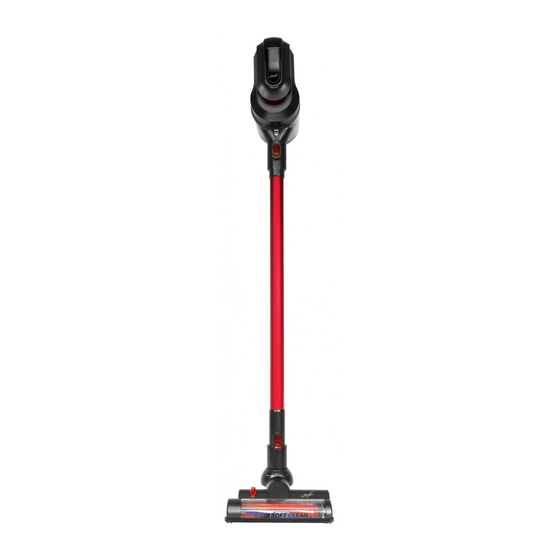

- Page 1 USER GUIDE Cordless Vacuum Cleaner A powerful vacuum cleaner, light and manoeuvrable...
- Page 2 JV222 ASSEMBLY - 2 -...
-
Page 3: Safety Precaution
SAFETY PRECAUTION 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experi- ence and knowledge if they have been given supervision or instruction concern- ing use of the appliance in a safe way and understand the hazards involved. - Page 4 COMPONENTS 1. 3 in 1 accessories 12. Dust cup 2. Charging Station 13. Li-ion battery pack 3. Tube set 14. Release button of battery 4. Electric brush assembly 15. Wall mounted tool charging station 5. Brush Release button 6. HEPA Filter 7.
-
Page 5: Technical Data
TECHNICAL DATA Model JV222 Rated voltage 22.2V d.c. Unpacking and assembling Check that all the parts in the box. (See page. 4) Step 1. Install the battery as below picture. Step 2. Install the electrical brush by inserting it into tube carefully... - Page 6 Step 3. Install the tube with brush by inserting it into the vacuum suction tube. Step 4. Install the 3 in 1 accessories to suction tube or tube of vacuum cleaner as below drawings. Vacuuming floors and carpets You should regularly check that the nozzle cushions and the brush roller are clean in order to avoid scratching sensitive floors.
- Page 7 CHARGING Insert the adaptor into the mains socket (Note: Always make sure that the device is turned off) and then connect to the device. The indicator light will flash once the device has made contact with the adaptor. It takes 3 hours or so to fully charge the batteries before the first use, the light will turn off on once it is full charged.
- Page 8 HOW EMPTYING / CLEANING 1. Remove the accessories from the body by pressing the release button 2. Press the release button to open the dust cup cover, drop out the trash into the dustbin. 3. Remove the dust cup by pressing the release button, clean the cyclone part by toothbrush, Make sure that the parts are dry before they are assembled back for next using.
- Page 9 FOR CLEAN OR REPLACE THE HEPA FILTER 4. Press the button to open the front cover, take out the HEPA filter to wash it under flowing water, Dry it in air naturally before next time using (Make sure the HEPA is dry before next time using). Or open the front cover of vacuum cleaner to replace a new HEPA filter.
- Page 10 HOW TO CLEAN THE ROLLER BRUSH If the roller brush becomes blocked or jammed for any reason, the vacuum will be lower down. The roller brush may then need to be cleaned. Switch off the device firstly, and then carefully use a pair of scissors or a sharp knife to remove any items such as threads that may have become entangled.
- Page 11 If your vacuum cleaner is with charging station, install the handheld vacuum cleaner into the station, put the aluminum tube by insert it into hook as picture. Basic Technical Data BATTERY: 22.2 V 2200 mah Li-ion ADAPTER: Input 100~240V 50Hz OUTPUT:27V 800 mah CHARGE TIME: 3 hours DISPOSAL...
- Page 12 PARTS, ACCESSORIES & VACUUM BAGS VISIT OUR WEBSITE AT WWW.JOHNNYVAC.COM...
