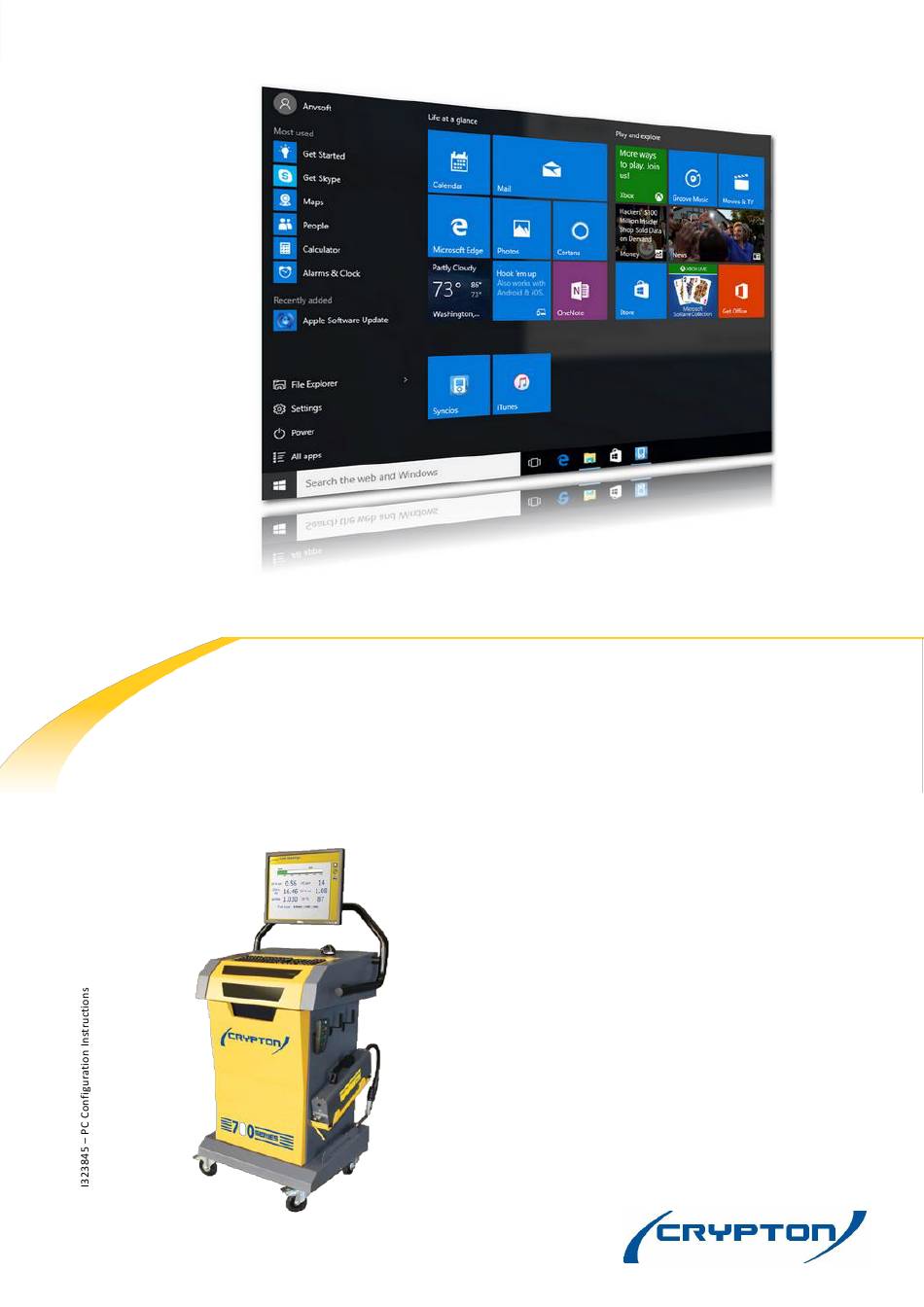

- Page 1 Installing HP Windows 10 PC CCP700-B-EN560 & CCP700-C-EN560...
- Page 2 Please take a few moments to read these instructions. The process of installing the PC is split into stages. Dependant on if you have Bluetooth (Wireless) or a cabled unit, the process is different, so please select the correct guidance section. Important Note for Brake Tester If your brake tester is connected to your CCP700, ensure Installations...
- Page 3 Once activated, your PC does not need to remain connected to the internet. However, internet connection is recommended for support. Make sure the PC is turned off Install the new PC into the cabinet and carefully reconnect the cables for monitor, keyboard and mouse ...
- Page 4 680 Gas Analyser Configuration 1) Open “Control Panel” 2) Open “Hardware and Sound” and then “Device Manager”...
- Page 5 4) Connect the Gas analyser USB cable and note which COM port it uses 5) Enter “Program Configuration Utility” 6) Click the “Start” button 7) Scroll and click on the “Crypton” folder 8) Click on the “Platform Configuration” folder 9) Click on “Platform Configuration Utility”...
- Page 6 Click on the “Gas analyser” tab and set the com port to match that shown on the device manager: Select “Gas Analyser” Click “Save” Select “Wired” Enter the COM port identified in device manager...
- Page 7 Configure DX.260 Smoke Meter, Oil Temperature Probe & Tachometer Bluetooth Click “Save” Select “Battery Tach” Select “Wireless” Enter the “Bluetooth Address” found on the white label under the barcode next to “BTID” on the CDSS6 Battery Tach casing Configure DX260 Smokemeter...
- Page 8 Click “Save” Select “Oil Temp” then “Exit” Select “Wireless” Enter the “Bluetooth Address” that is found on the white label under the barcode next to “BTID” on the DAS00401 Oil Temp Probe DAS00401 Oil Temp Probe...
- Page 9 Cabled Connect each device in turn and note in device manager the com port allocated. Click “Save” Select “Smokemeter” Select “Wired” Enter the COM port identified in device manager...
- Page 10 Click “Save” Select “Battery Tach” Select “Wired” Enter the COM port identified in device manager Click “Save” then “Exit” Select “Oil Temp” Select “Wired” Enter the COM port identified in device manager Shutdown the PC via “shutdown” button Start the PC again, open the required program and check the equipment is communicating by running a test.
- Page 11 Loading Garage Name & Address into the Gas Analyser & DX.260 Program From the main gas screen, select the additional menu. Then select “VTS entry” (Fig 1) under the tools and setup option of the Petrol emissions analyser program. Change and save by clicking forward arrow (Fig 2). Fig 1.
-
Page 12: Printer Installation
Printer Installation Open “Control Panel” Go to “Devices and printers” Click “Add a device” and follow the on screen instructions. You may need to download a driver from your printer manufacturer’s website. - Page 13 Crypton – A Brand of the Continental Corporation With all the quality, service and backup you would expect from a UK company with a long standing history like Crypton. E & O.E. The Company reserves the right to introduce improvements in design or specifications without prior notice.
