I
DENTIFYING
Front Panel

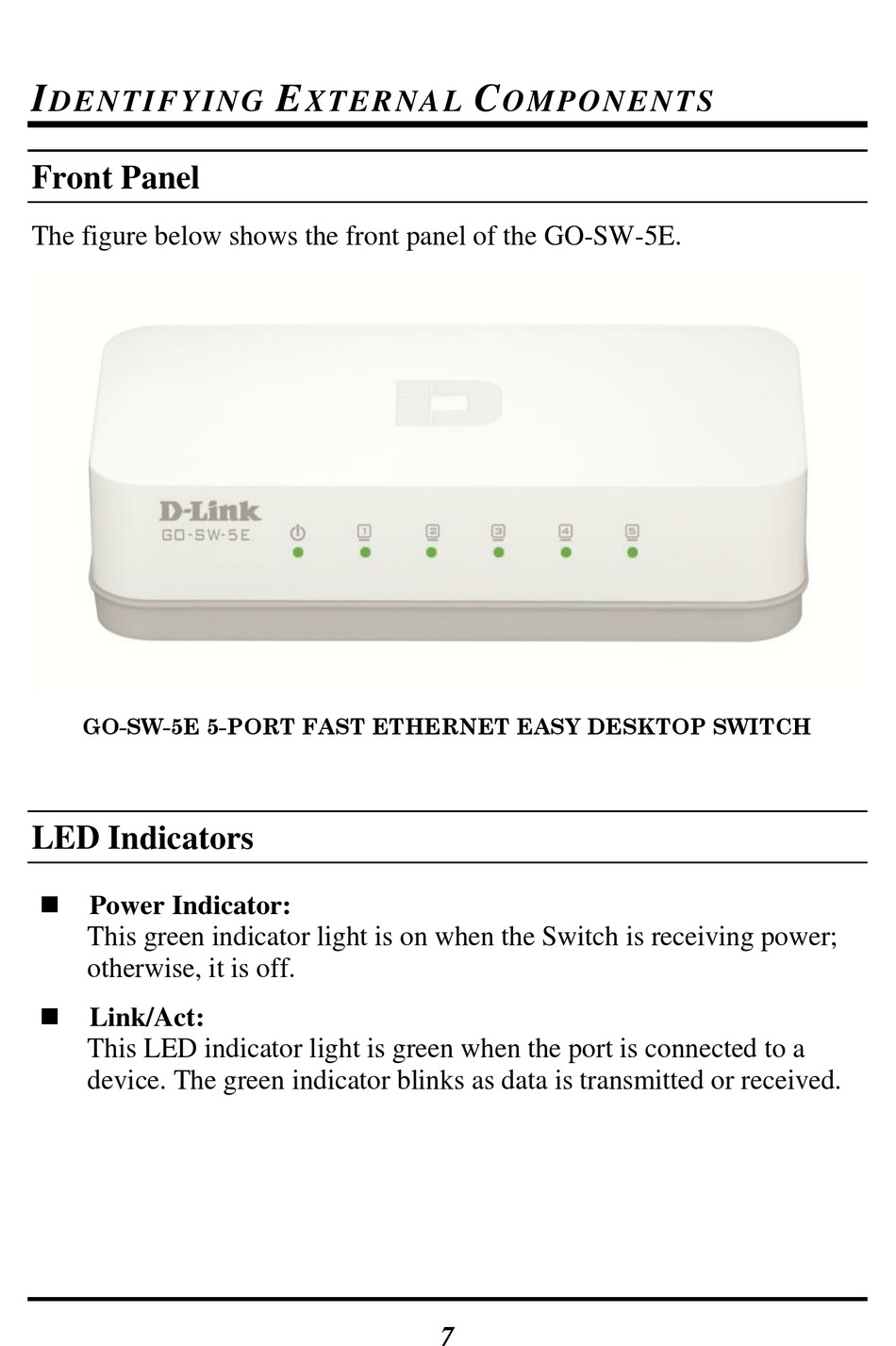

The figure below shows the front panel of the GO-SW-5E.
GO-SW-5E 5-PORT FAST ETHERNET EASY DESKTOP SWITCH
LED Indicators
Power Indicator:
This green indicator light is on when the Switch is receiving power;
otherwise, it is off.
Link/Act:
This LED indicator light is green when the port is connected to a
device. The green indicator blinks as data is transmitted or received.
E
XTERNAL
7
C
OMPONENTS
