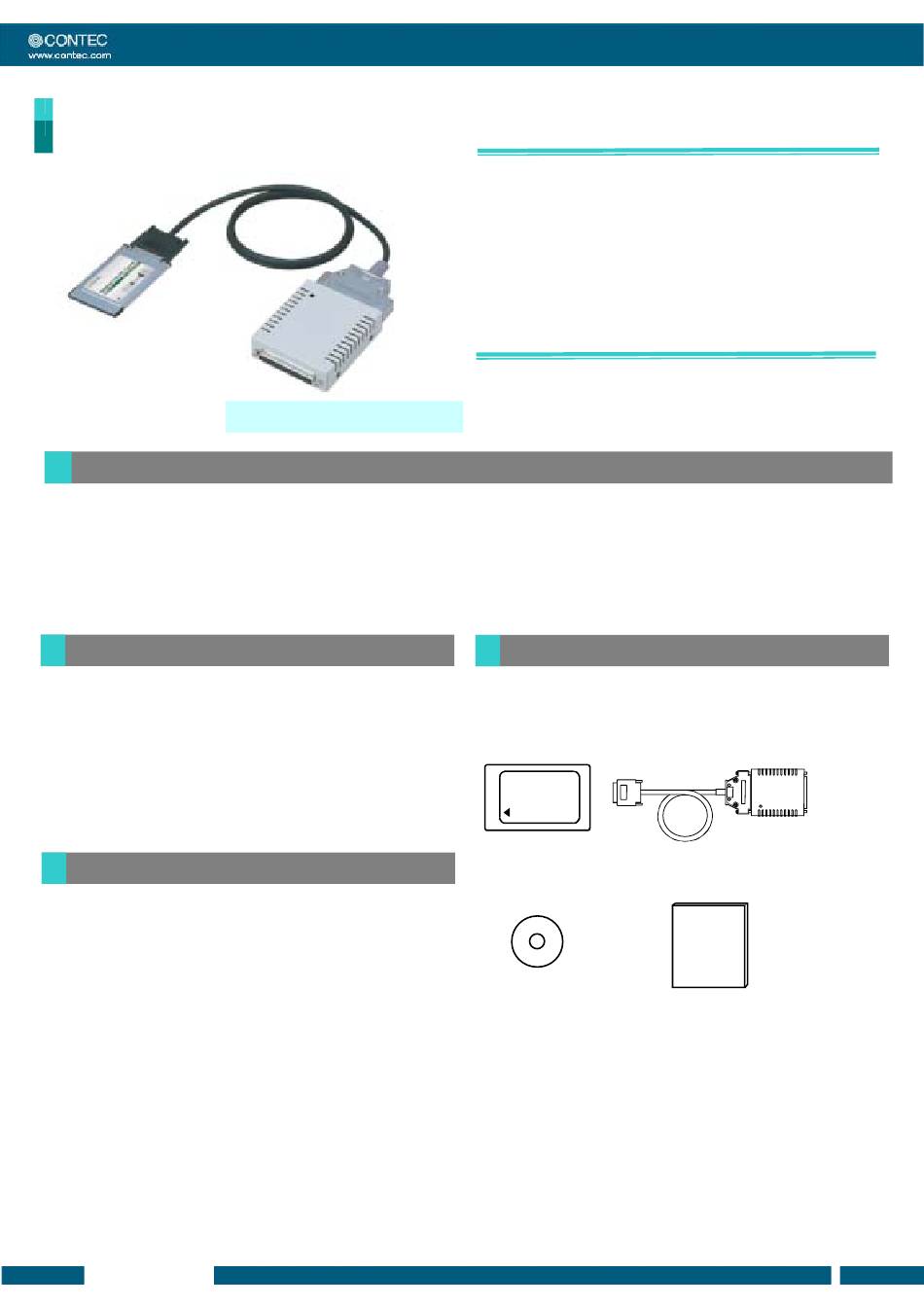

Contec PIO-16/16L(PM) Manual

PC Card-compliant Opto-Isolated Digital I/O
PIO-16/16L(PM)

Features

- Individual external power supplies can be used for each common pin as it is shared by 16 signal points.
- The PC card slot side and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity.
- Users can use all of the input signals as interrupt inputs and select the interrupt trigger edge of the input signal.
- The PC card has a digital filter feature to prevent noise or chatter from causing erroneous inputs.
- Up to 35VDC, 100mA per signal, max. output.
- The output transistor has a surge absorber connected to protect the PC card from surge voltages.

Accessories

Screw Terminal :EPD-37A *1
Screw Terminal :EPD-37 *1
Termination Panel (M3) :DTP-3(PC)
Termination Panel :DTP-4(PC)
Signal Monitor for Digital I/O:CM-32(PC)E *1
*1 A PCB37PS or PCB37PS optional cable is required separately.
* Check the CONTEC Web site for more information on these options.
Optional Cable & Connector
Flat Cable with a 37-Pin D-type Connectors on 2Ends:
PCB37P-1.5(1.5m), PCB37P-3 (3m), PCB37P-5 (5m)
Shielded cable with two 37-pin D-Type connectors:
PCB37PS-0.5P(0.5m), PCB37PS-1.5P (1.5m), PCB37PS-3P (3m),
PCB37PS-5P (5m)
Flat Cable with a 37-pin D-type Connector:
PCA37P-1.5 (1.5m), PCA37P-3 (3m), PCA37P-5 (5m)
Shielded Cable with Two 37-pin D-Type Connectors:
PCA37PS-0.5P (0.5m), PCA37PS-1.5P (1.5m), PCA37PS-3P (3m)
PCA37PS-5P (5m)
D-SUB37P Male Connector Set (5 Pieces):
CN5-D37M
PIO-16/16L(PM)
Drive Library [API-PAC]: Included
PIO-16/16L(PM) is a PC Card Standard compliant product for
input/output of digital signals. Users can use the card in PC
card slots that support the PCMCIA 2.1/JEIDA 4.2 or later.
The PC can be used to input the on/off state of a switch and to
control a relay.
The PC card can input and output up to 16 channels.
With the included Driver library [API-PAC(W32)], users can
configure Windows application software for this PC card in your
favorite programming language supporting Win32 API functions,
such as Visual Basic or Visual C/C++.
Components in your package
- PC Card [PIO-16/16L(PM)] ...1
- Cable with isolation unit[PIO-16/16L(PM)-BOX and CB-PM68/37] ...1
- User's Guide...1
- CD-ROM [API-PAC(W32)] ...1
PC card
CD-ROM
[API-PAC(W32)]
Ver.3.11
Cable with isolation unit
Guide
Guide
