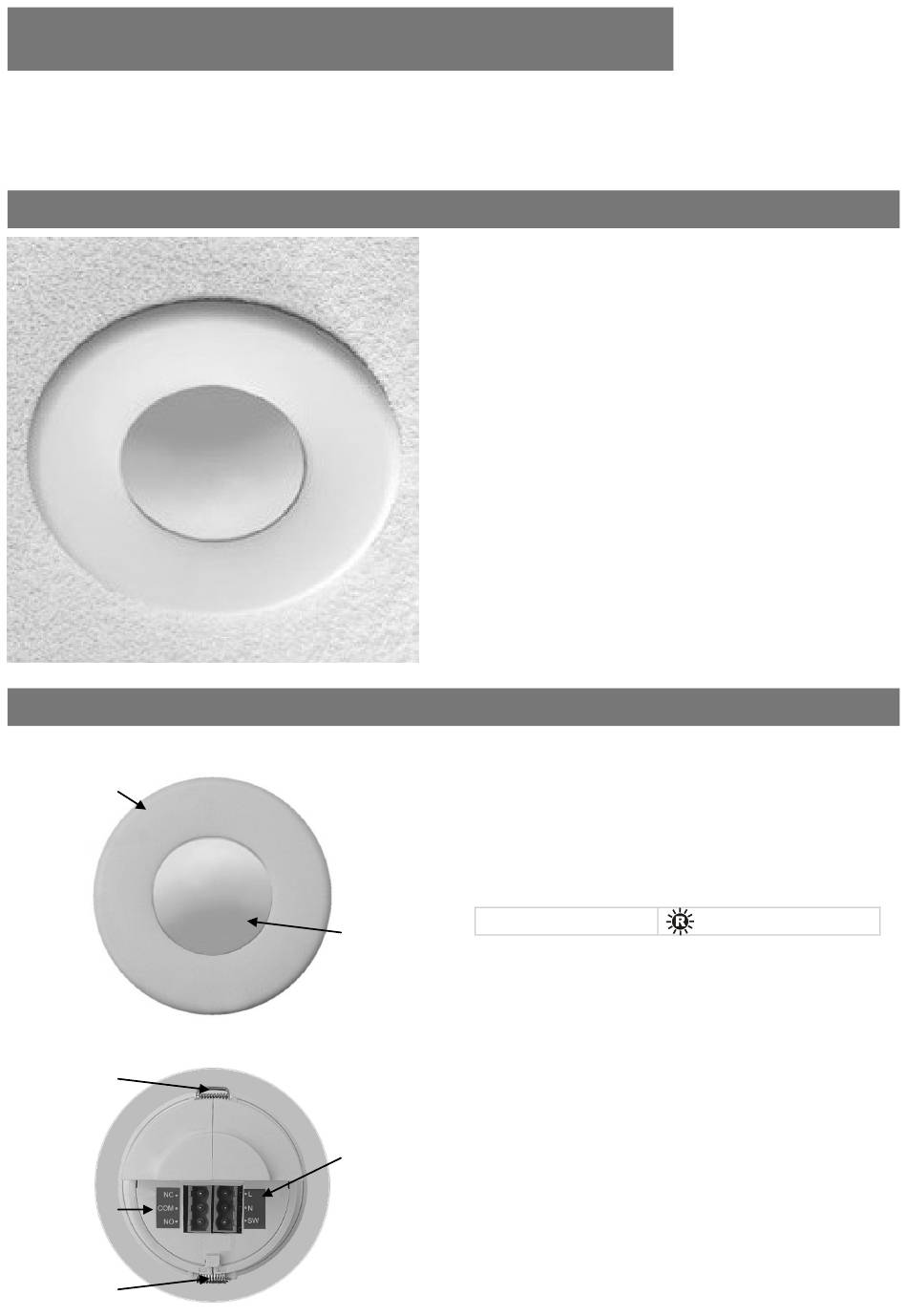

ALC-PRM-VFC
Ceiling Mounted Photocell
Front features
Mounting Bezel
Back features
Retaining Spring
Switched
Output Connector
Retaining Spring
Product Guide
The ALC-PRM-VFC photocell will turn lighting on when the
ambient light falls below a preset level. The lighting will
then be turned off when the total light level rises above a
separate preset level. The unit also has a switch input for
manual override.
An integral, adjustable time delay prevents nuisance
switching caused by, for example, dark clouds.
The unit has a voltage free changeover output which can
be used to switch, a BMS or lighting control system as well
as switching a load directly.
All functionality is fully programmable using an IR handset.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
The LED flashes Red to indicate the following:
Valid setting received
Sensor Lens
which covers...
Power Connector
IR Receiver
Used to connect mains power to the unit.
Light Level Sensor
Status LEDs
Switched Output Connector
Used to connect a switched load.
Power Input
Connector
Overview
Features

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALC-PRM-VFC and is the answer not in the manual?

Questions and answers

Summary of Contents for CP Electronics ALC-PRM-VFC

  • Page 1 ALC-PRM-VFC Ceiling Mounted Photocell Overview The ALC-PRM-VFC photocell will turn lighting on when the ambient light falls below a preset level. The lighting will then be turned off when the total light level rises above a separate preset level. The unit also has a switch input for manual override.
  • Page 2: Installation

    Installation Choosing a Suitable Location The ALC-PRM-VFC is designed to be ceiling mounted and must satisfy the following criteria: Avoid positioning the unit where direct sunlight may enter the sensor element. Wiring Diagram - Mains load Wiring Diagram - Volt Free Contact...
  • Page 3 Installation The ALC-PRM-VFC is designed to be mounted using either: Flush fixing, or Surface fixing, using the optional Surface Mounting Box (part no. DBB). Both methods are illustrated below. Flush Fixing Hole Ø64mm Warning - be careful bending springs when mounting unit.
  • Page 4: Basic Programming

    Basic programming The functionality of the ALC-PRM-VFC is controlled by a number of parameters which can be changed or programmed by any of the following devices: UHS5 Infrared Handset. See below for programmable functions. UNLCDHS Infrared Handset (with LCD). See user guide for full programming details.
  • Page 5: Advanced Programming

    Advanced programming UHS5 UNLCDHS Parameter Name Default Value Range / Options Description Detector Parameters   Lux time 0 (disabled) To prevent nuisance switching, an adjustable time delay can be set. This requires the light level to be maintained for the set time before changing from on to off, or 1-99 minutes off to on.
  • Page 6 This page intentionally left blank...
  • Page 7 This page intentionally left blank...
  • Page 8: Technical Data

    Technical data Dimensions See diagrams opposite ALC-PRM-VFC Weight 0.1kg Supply Voltage 230VAC +/- 10% Frequency 50Hz Maximum Load 10 Amp resistive and incandescent lighting 6 Amp fluorescent lighting and resistive 3 Amp compact fluorescent lighting 3 Amp low energy lighting...
