CP Electronics EBDHS-MB-DNET1 Product Manual

EBDHS-MB-DNET1
Luminaire mount high bay PIR DALI network

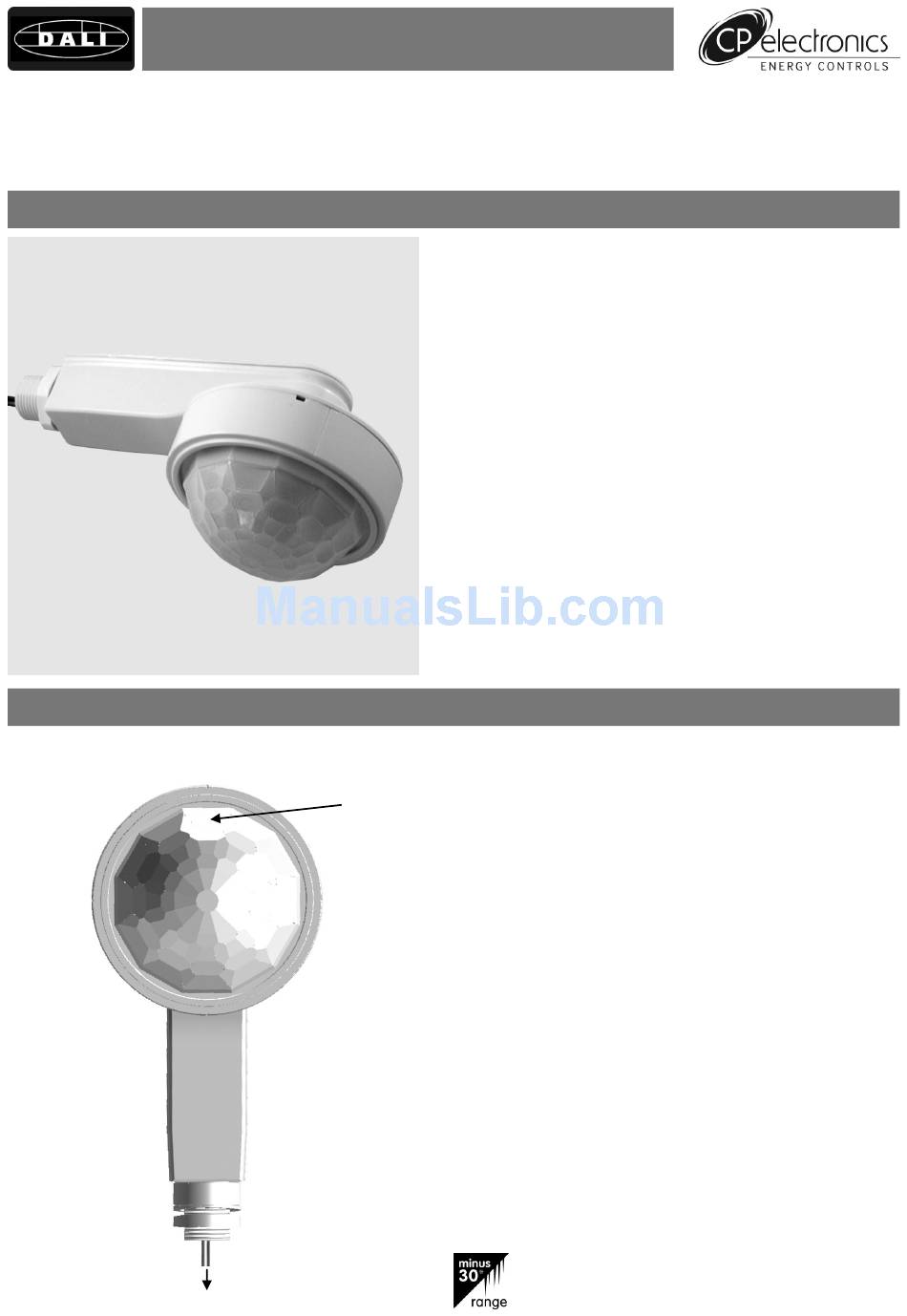

Front view
Cables to luminaire DALI network
Product Guide
The EBDHS-MB-DNET1 is a combined passive infrared
(PIR) motion sensor and photocell designed to be part of a
DALI network. The EBDHS-MB-DNET1 is a high sensitivity
PIR detector suitable for high bay applications, such as
warehouses and factories, and where high detection sensi-
tivity is needed. It is specifically designed for mounting onto
a batten style luminaire.
Functioning as a presence detector, the unit returns occu-
pancy data to the DALI network.
The photocell provides a lux level measurement value to
the DALI network.
The units are IP65 rated as standard and are therefore suit-
able for outdoor use as well as wet and wash-down areas.
A selection of fixing washers are supplied to aid fixing to a
variety of luminaires.
For a copy of the DALI 'Command set', contact CP Elec-
tronics' technical support.
PIR Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
PIR lens
IR Receiver
which covers...
Receives control and programming commands from an
IR Receiver
IR (infrared) handset.
Light Level Sensor
Status LED
Light Level Sensor
Measures the overall light level in the detection area
EBDHS-MB-DNET1-LT30
Special order version that can be used down to -30ºC

Overview

Features
