YEARS: 2013-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
RATCHET
WRENCH
DRILL BIT
15/32"
DIE GRINDER
11/16"
13mm
SAFETY
GLASSES
SOCKET
11431

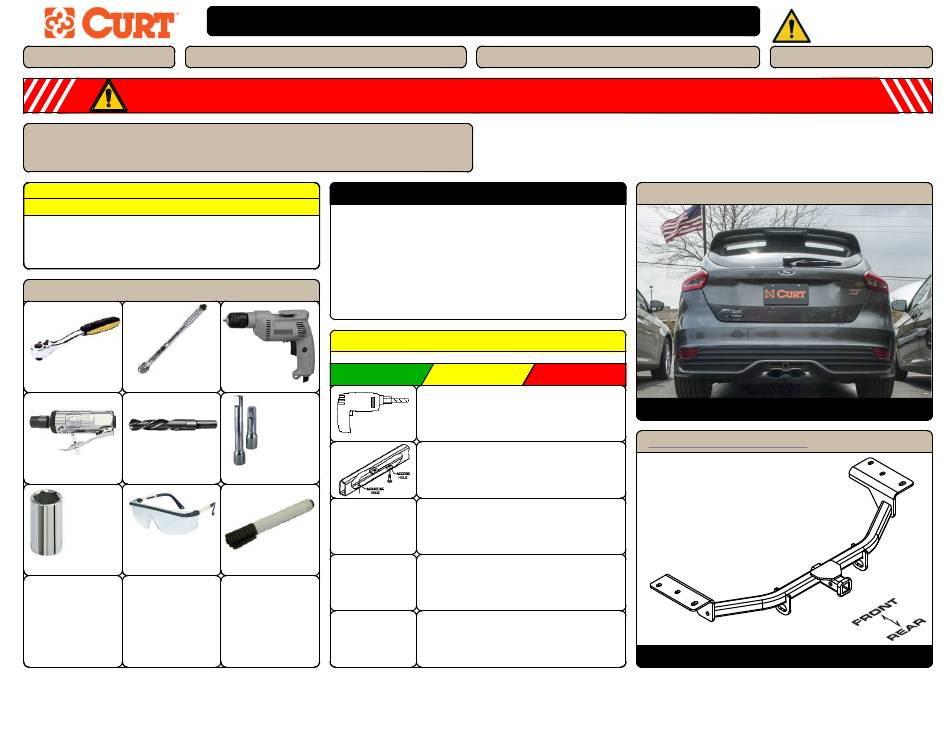

INSTALLATION INSTRUCTIONS
FORD
TRAILER WEIGHT:
2,000
LBS.
TONGUE WEIGHT:
200
LBS.
30
MIN.
INSTALLATION TIPS:
60 MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE THE
QUALITY OF THE INSTALL AND REDUCE THE TIME
REQUIRED.
LEVEL OF DIFFICULTY:
POWER
DRILL
EASY
6"
SOCKET
EXTENSION
MARKER
MODEL: FOCUS ST
MODERATE
MODERATE
CHALLENGING
DRILLING REQUIRED
FISHWIRE REQUIRED
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO
HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
HATCHBACK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curt Manufacturing 11431
Summary of Contents for Curt Manufacturing 11431
- Page 1 Safety glasses should be 11431 INSTALLATION INSTRUCTIONS worn at all times while installing this product . YEARS: 2013-PRESENT MAKE: FORD MODEL: FOCUS ST STYLE: HATCHBACK WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY WEIGHT CARRYING: TRAILER WEIGHT: 2,000 LBS.
-
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: 1. Remove (4) bolts and lower the (2) rear exhaust brackets, Parts List ITEM PART NUMBER DESCRIPTION return bolts to owner. CM-SP7 .250 x 1.00 x 2.00" SQUARE HOLE SPACER 7/16-14 x 1 1/2 CARRIAGE BOLT 7/16-14 HEX FLANGE NUT 3/8"... - Page 3 INSTALLATION WALKTHROUGH: 3. Enlarge access holes to allow 7/16"-14 carriage bolts and 5. Torque all M8 hardware to 23 ft-lbs. Torque all 7/16" SP7 spacers to pass through. Fishwire 7/16"-14 carriage hardware to 70 ft-lbs. bolts and SP7 spacers through the enlarged access holes CAUTION: BALLMOUNT MAY BECOME HOT DUE TO and out the holes drilled in Step (2).
-
Page 5: Installation Steps
11431 FORD FOCUS ST 5/5/2016 GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: 2,000 LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT. WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRO DUCT MUST BE SUPPORTED BY 18050 STABILIZING STRAPS. WARNING:...
