YEARS: 2014-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
22mm
RATCHET
SOCKET
WIRE PIPE
TORQUE
BRUSH
WRENCH
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace
the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement
of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
13146
INSTALLATION INSTRUCTIONS
ACURA; HONDA
TRAILER WEIGHT:
LBS.
6000
TONGUE WEIGHT:
900
LBS.
20
MIN.
INSTALLATION TIPS:
40
MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
6"
LEVEL OF DIFFICULTY:
SOCKET
EASY
EXTENSION
SAFETY
GLASSES
MODEL: MDX; PILOT
WEIGHT DISTRIBUTION:
EASY
MODERATE
CHALLENGING
- TEMPORARILY LOWER
SPARE TIRE
- NO DRILLING REQUIRED
-WELDNUT CLEANING
MAYBE REQUIRED
Safety glasses should be
worn at all times while
installing this product .
STYLE:
TRAILER WEIGHT:
8000
LBS.
TONGUE WEIGHT:
900
LBS.
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

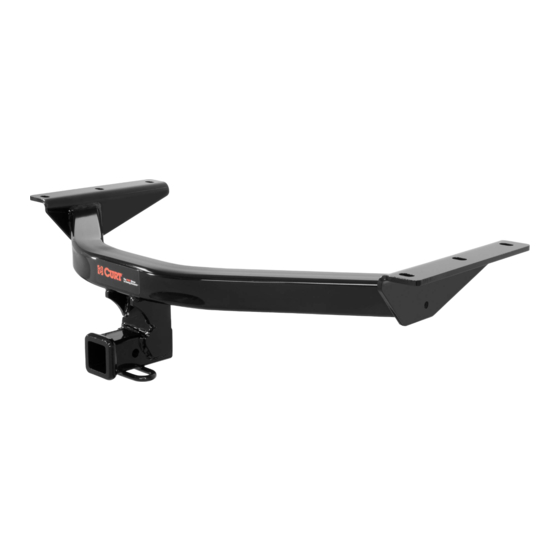

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
SUV
6/24/2015
Advertisement
Table of Contents
Related Manuals for Curt Manufacturing 13146
Summary of Contents for Curt Manufacturing 13146
- Page 1 CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace...
- Page 2 INSTALLATION WALKTHROUGH: Parts List 2. Weldnut cleaning may be required. Raise hitch into ITEM PART NUMBER DESCRIPTION position and secure with the M14 hardware provided. M14 - 1.5 x 40 HEX HEX BOLT Torque M14 bolts to 139 lb-ft. 9/16" CONICAL WASHER CONICAL TOOTHED WASHER PASSENGER SIDE FRAME...
- Page 4 ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND. Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase.
