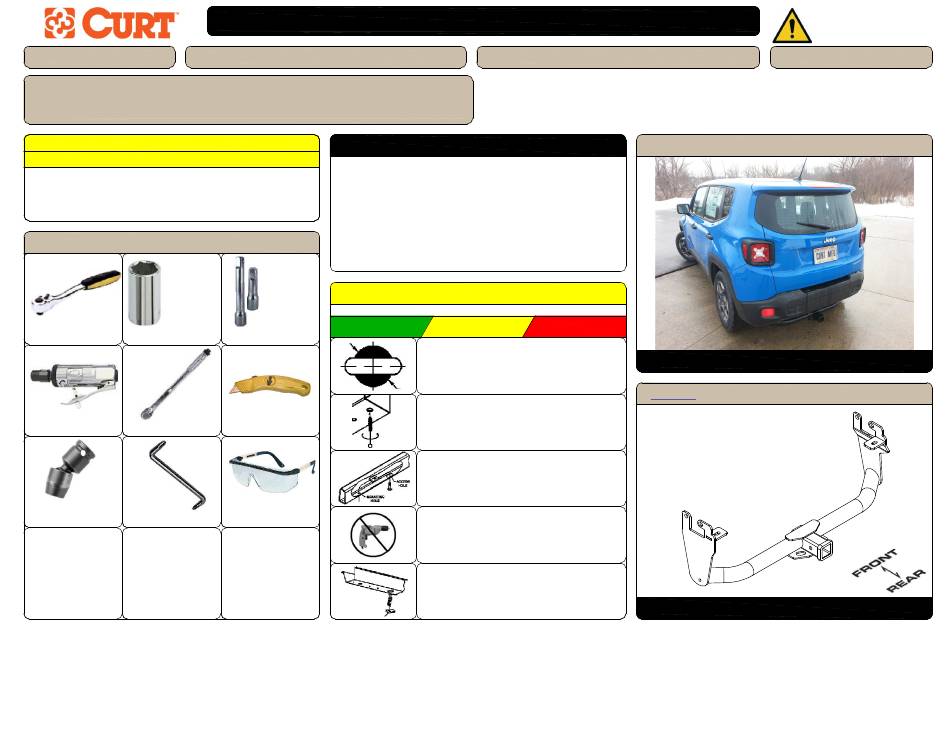

YEARS: 2015-PRESENT
MAKE:
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
3/4"
21mm
RATCHET
SOCKET
TORQUE
DIE GRINDER
WRENCH
OFFSET
UNIVERSAL
SCREWDRIVER
JOINT SOCKET
13269
INSTALLATION INSTRUCTIONS
JEEP
TRAILER WEIGHT:
3,500
LBS.
TONGUE WEIGHT:
525
LBS.
30
MIN.
INSTALLATION TIPS:
60 MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
8"
LEVEL OF DIFFICULTY:
SOCKET
EASY
EXTENSION
UTILITY
KNIFE
SAFETY
GLASSES
MODEL: RENEGADE
MODERATE
MODERATE
CHALLENGING
HOLE ENLARGEMENT
REQUIRED
WELDNUT CLEANING
FISHWIRE
NO DRILL
REVERSE FISHWIRE
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO
HITCH
ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
SUV
Advertisement
Related Manuals for Curt Manufacturing 13269
Summary of Contents for Curt Manufacturing 13269
- Page 1 Safety glasses should be 13269 INSTALLATION INSTRUCTIONS worn at all times while installing this product . YEARS: 2015-PRESENT MAKE: JEEP MODEL: RENEGADE STYLE: WEIGHT CARRYING: TRAILER WEIGHT: 3,500 LBS. TONGUE WEIGHT: LBS. PRO INSTALL TIME: MIN. INSTALLATION TIPS: VEHICLE PHOTO: NOVICE INSTALL TIME: 60 MIN.
-
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: 1. Remove (1) rubber plug on the bottom of each frame rail. Parts List ITEM PART NUMBER DESCRIPTION Remove (2) rubber plugs on the outside of each frame rail. 1_2 FISHWIRE 1/2" FISHWIRE HFN 1213, GR8 HEX FLANGE NUT Trailhawk Models: Remove (3) M14 bolts on each frame rail 1/2-13 x 1 3/4, GR8 CARRIAGE BOLT... - Page 3 INSTALLATION WALKTHROUGH: 3. Clear away caulk as necessary near mounting holes using 5. Raise the hitch into position, thread the fishwires into the a utility knife. On the passenger side, remove (2) plastic mounting holes. On the bottom attachments, place a screws retaining an access panel located in the wheel well CM-SP10 spacer on the bolt and loosely install all 1/2"...
-
Page 5: Installation Steps
13269 JEEP RENEGADE GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: 3,500 LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT. WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY 18050 STABILIZING STRAPS. WARNING: ** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY **...
