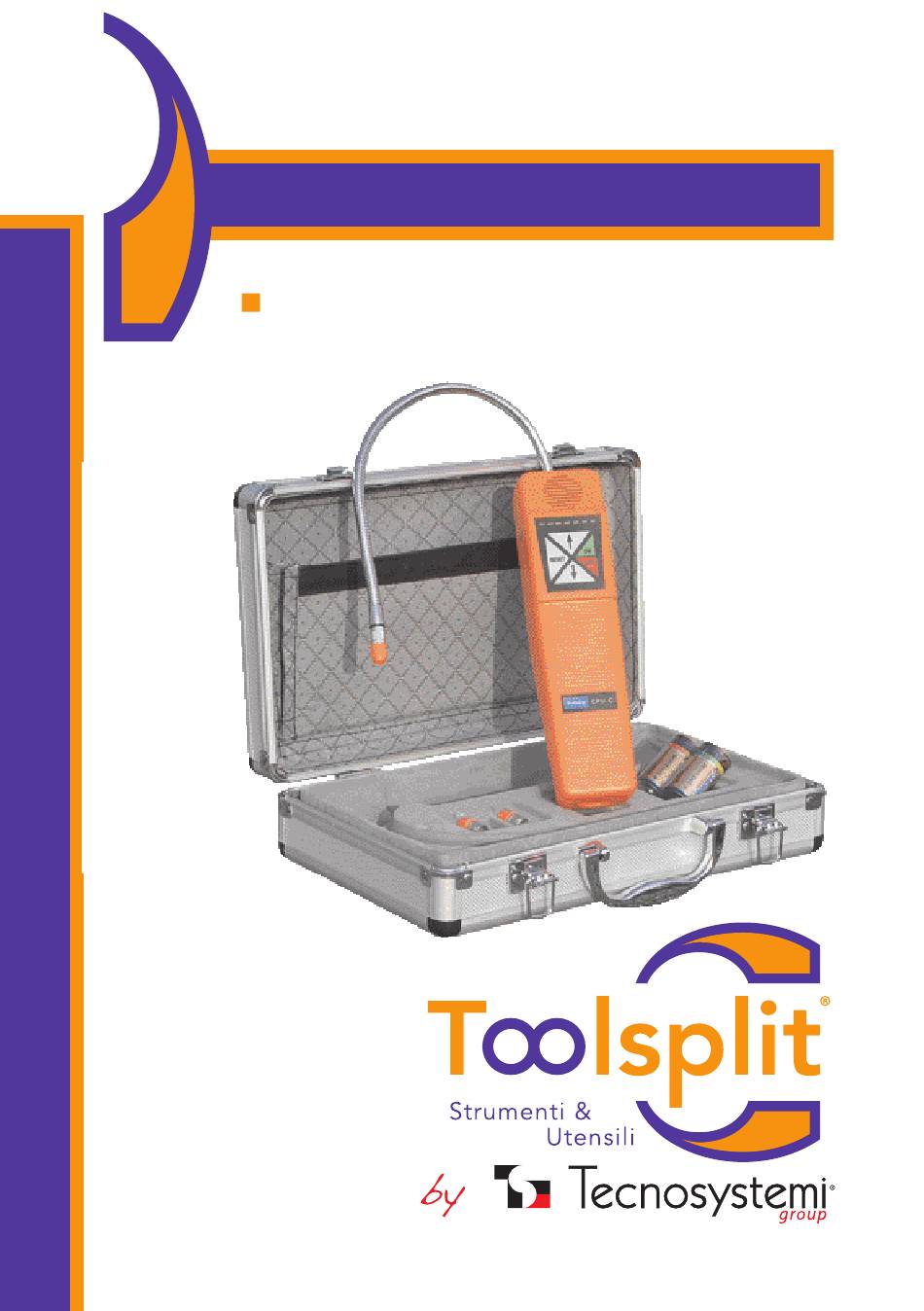

- Page 1 Rev.01/2013 Owner’s Manual AUTOMATIC REFRIGERANT LEAK DETECTOR TSCE-J1 COD. 11132033...
-
Page 2: Table Of Contents
INDEX General information......................3 Features..........................3 Parts & Controls........................4 Getting Started........................5 Installing Batteries........................5 Operating Features........................6 Operating Instructions......................7 Operating Features........................8 Applications..........................9 Maintenance.........................9 Specifications........................10... -
Page 3: General Information
Please take a few minutes to read through the following pages, in order to under-stand and benefit from all the capabilities of your new TSCE-J1. We trust that you will be 100% satisfied with your new purchase. If you have any questions or comments after reviewing the manual, please feel free to contact us. -
Page 4: Parts & Controls
PARTS & CONTROLS 1. SensingTip 2. TipProtector 3. PowerON/OFF 4. ResetButton 5. SensitivityUp 6. SensitivityDown 7. LED Leak Indicators 8. FlexibleProbe... -
Page 5: Getting Started
Install batteries,Postive Polarity outwards (towards battery door ).(See fig 2). OPERATING FEATURES Power Indication/ Battery Test The TSCE-J1 :provides two indications of battery voltage status; a Con- stant Power indicator (leftmost LED )and a Battery Test function. The Constant Power indicator allows the user to see the battery level at all times. -
Page 6: Operating Features
64 times ! Alarm indications The TSCE-J1 features 18 alarm levels. This permits a clear indi- cation of relative leak size and strength. The progressive indicators can be used to home-in on a leak as the increasing alarm levels indicate that the source (highest concentration) is being approached. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS OPERATION: 1. Switch the unit on by pressing the ON/OFF key .The display will illuminate with the reset indication (Left LED green,all others Red)for 3 seconds. 2. Verify the battery level by observing the constant power indicator (see above). 3. -
Page 8: Operating Features
OPERATING FEATURES HI300 TSCE-J1 Recommended Procedure NOTE:On Automotive NC Systems leak test with the engine not in operation. 1. The air conditioning or refrigeration system should be charged with sufficient refrigerant to have a gauge ,pressure of at least 340 kpa(50 psi) when not in operation.At temperatures below 15°C(59°F), leaks may not be measurable, since this pressure may not be reached. -
Page 9: Applications
APPLICATIONS The TSCE-J1 leak Detector may also be used to: • Detect leaks in other systems and storage/recovery containers. It will respond toALL halogenated(contains Chlorine of Fluorine) refrigerants. This includes, but is not limited to: CFCs e.g.R12,R1 1 ,R500,R503 etc... e.g.R22,R123,R124,R502 etc... e.g.R134a,R404a,R125 etc... HCFCs HFCs Blends such as AZ-50.HP62.MP39 etc... -
Page 10: Specifications
SPECIFICATIONS Power Supply: 3V DC: two cell Alkaline batteries Maximum Sensitivity: Per Delicacy Rating Criteria; Certified for R12, R22 and R134a @0,5 oz/yr. (14gr/yr) Ultimate sensitivity: less than 0,1 oz/yr. (3gr/yr) for all Halogen based refrigerant. Sensing Tip Life: Approx. 20 hours Operating Temperatur: 30°...
