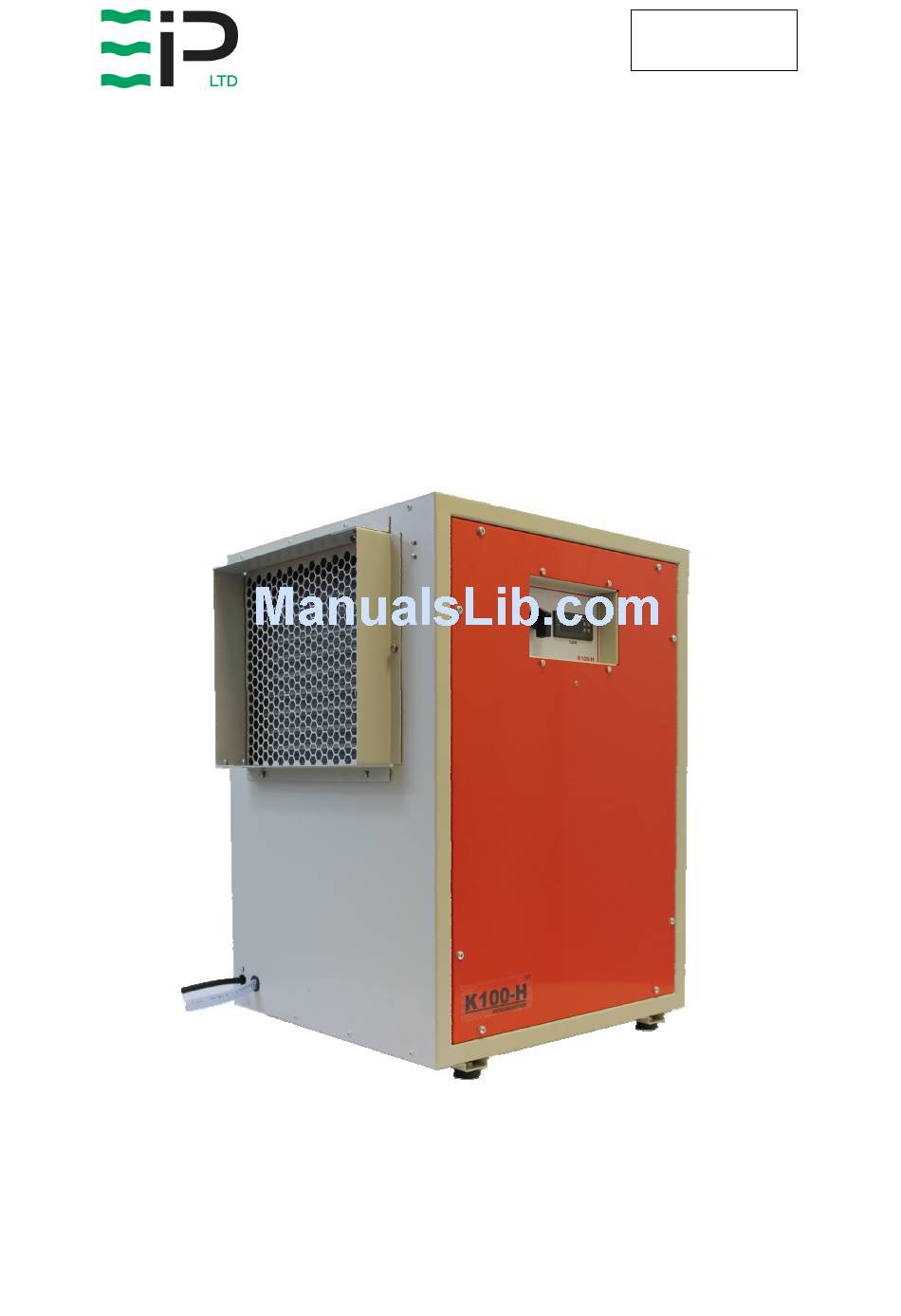

- Page 1 Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 K100H DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 16...
-
Page 2: Package Contents
Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 K100H PACKAGE CONTENTS Item Description Quantity 10185GH-US Dehumidifier 1 off 3086144 Quick release hose coupling 1 off 3944110 PVC Tube – 3/8” I/D 7.8M TPC450 Manual 1 off... - Page 3 A digital Humidistat is included which allows for precise humidity control. A programmable display lets you set a specific desired humidity level. The K100H dehumidifier is a rugged reliable drying unit designed to operate effectively over a broad range of temperature and humidity conditions. A...
-
Page 4: Specifications
Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 SPECIFICATIONS : 10185GH-US ODEL : 27.2” (692mm) EIGHT : 22.8” (580mm) IDTH : 18.3” (464mm) EPTH : 117 Lbs (53Kg) EIGHT : 300 CFM (510 M3/Hr) IRFLOW : 110V 1Ph 60Hz OWER UPPLY 1500 W (max) -
Page 5: Installation
Earth (ground) DRAINAGE: The K100H has a water pump fitted as standard which is capable of discharging the condensate water 20ft vertical lift away from the unit & 100ft horizontal. The water can, therefore, be discharged into a drain some distance away. -
Page 6: Operation
: - 1 Date : - 18/01/16 OPERATION The following procedures should be followed to test the K100H for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded electrical outlet. - Page 7 Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 i. If the air temperature is below 80° F, an even coating of frost should cover the entire evaporator coil ii. If the air temperature is above 80° F, frost and/or droplets condensed water should...
-
Page 8: Routine Maintenance
Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTENACE ON ITEMS 1, 2, 3, AND 4. To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: 1. - Page 9 Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the correct replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 10: Troubleshooting
Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Tighten fan 1. Loose fan on shaft 2. Replace the fan motor 2. Fan motor burnt out 3. See Routine Maintenance Little or no airflow 3. -
Page 11: Defrost Timer
Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 K100H SPARE PARTS LIST UMBER ESCRIPTION UANTITY UMBER DEFROST TIMER 1619508 48” x2 CAPILLIARY TUBE .047 2pcs. 3014251 COMPRESSOR (R407c) 3944915 CONDENSER COIL 3020727 EVAPORATOR COIL 3020732 DEFROST VALVE... -
Page 12: Limited Warranty
Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit. - Page 13 Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 Page 13 of 16...
- Page 14 Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 Page 14 of 16...
- Page 15 Drawing : - TPC450 Issue : - 1 Date : - 18/01/16 Page 15 of 16...
- Page 16 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 16 of 16...
