Lumikit PRO X4 User Manual

Hide thumbs Also See for PRO X4:
Table of Contents

Advertisement

Quick Links

READ THE MANUAL BEFORE USE THE PRODUCT!
READ THE MANUAL BEFORE USE THE PRODUCT!
READ THE MANUAL BEFORE USE THE PRODUCT!
READ THE MANUAL BEFORE USE THE PRODUCT!

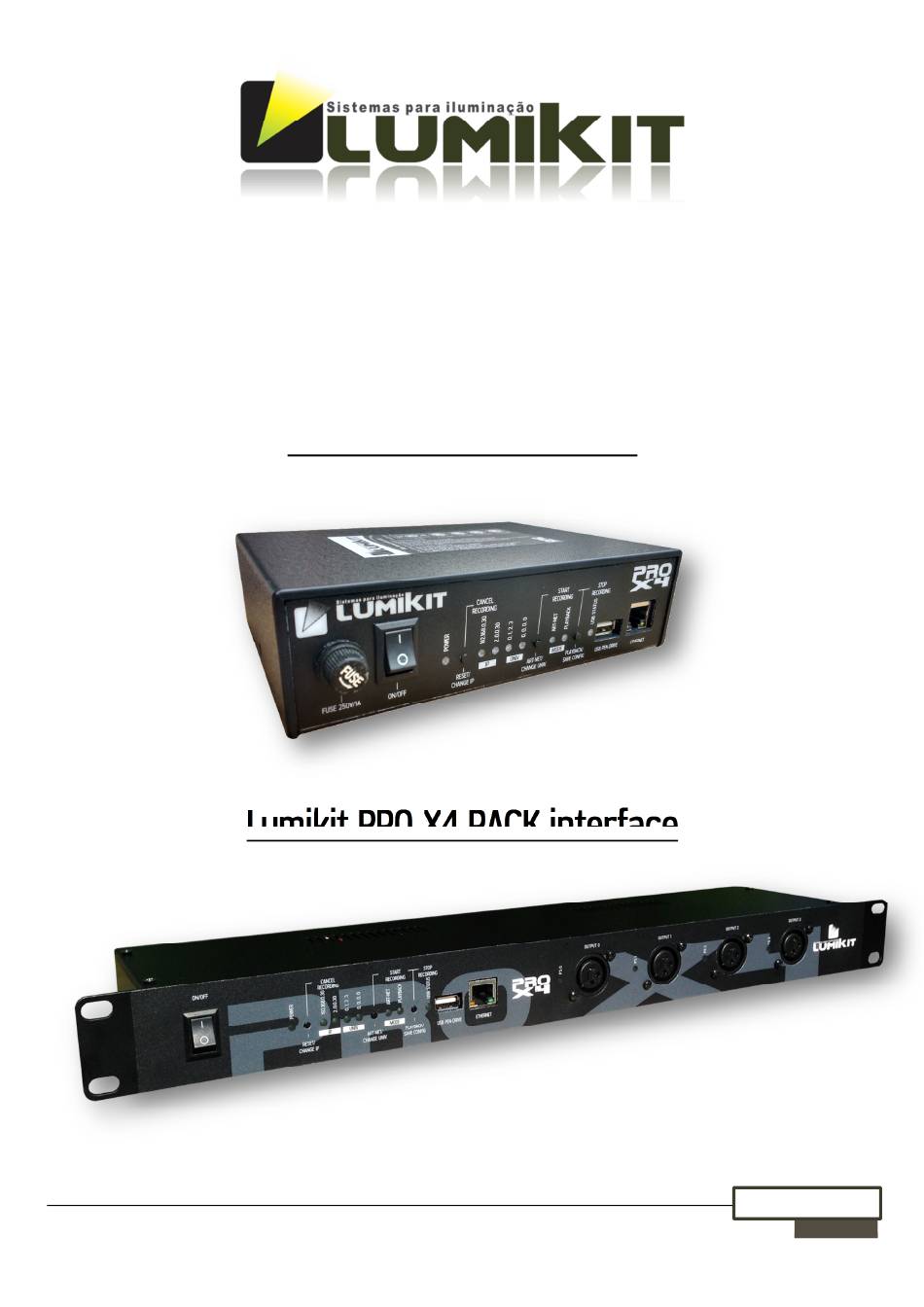

Lumikit PRO X4 interface
Lumikit PRO X4 interface
Lumikit PRO X4 interface
Lumikit PRO X4 interface
Lumikit PRO X4 RACK interface
Lumikit PRO X4 RACK interface
Lumikit PRO X4 RACK interface
Lumikit PRO X4 RACK interface
User manual
User manual
User manual
User manual
© 2015 Lumikit Sistemas para Iluminação
Lumikit Sistemas para Iluminação | www.lumikit.com.br
Lumikit Sistemas para Iluminação
Lumikit Sistemas para Iluminação
Lumikit Sistemas para Iluminação
rev.1 – 01/25/2015
1 1 1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO X4 and is the answer not in the manual?

Questions and answers

Related Manuals for Lumikit PRO X4

Summary of Contents for Lumikit PRO X4

  • Page 1 Lumikit PRO X4 interface Lumikit PRO X4 interface Lumikit PRO X4 interface Lumikit PRO X4 interface Lumikit PRO X4 RACK interface Lumikit PRO X4 RACK interface Lumikit PRO X4 RACK interface Lumikit PRO X4 RACK interface © 2015 Lumikit Sistemas para Iluminação rev.1 –...
  • Page 2 • The difference between the Lumikit PRO X4 and difference between the Lumikit PRO X4 and Lumikit PRO X4 RACK interface is the cabinet Lumikit PRO X4 RACK interface is the cabinet difference between the Lumikit PRO X4 and...

  • Page 3: Table Of Contents

    ..................................................6 6 6 6 3. 3. 3. 3. CONFIGURING LUMIKIT CONFIGURING LUMIKIT PRO X4 INTERFACE PRO X4 INTERFACE ............................................................ 7 7 7 7 CONFIGURING LUMIKIT CONFIGURING LUMIKIT...
  • Page 4 Art-Net universe, this way, the interface can work as a buffer or splitter. The lightener can also configure the DMX 0 output to be used by Lumikit SHOW software and the DMX 1, 2 and 3 outputs to be used by Lumikit LED, only by configuring the Art-Net universes inside the software or any other combination that is more suitable.
  • Page 5 • Plastic box with plugs for power supply cables connection, DMX signal and Ethernet network; • Lumikit PRO X4 RACK specific features: 1500Vrms insulation between the network input and the logic circuit, 2500Vrms between the logic • circuit and the outputs and 1000Vrms between output 0,1, 2 and 3 (individual supply for each DMX output);...
  • Page 6 • Lumikit PRO X4 interface: 250V / 1A; Lumikit PRO X4 interface: 250V / 3A (located in back panel); b: ON/OFF key and LED on the right indicates if it is on; • c: “RESET/CHANGE IP” button for resetting, see chapter 5;...

  • Page 7: Pro X4 Interface

    The interface comes with the following original factory settings: • IP Address: 192.168.0.30 – Netmask: 255.255.255,0; (this IP is compatible with all Lumikit’s software); • DMX Output 0=Art-Net Universe 0;Output 1=Art-Net Univ. 1; Output 2= Art-Net Univ. 2; Output 3= Art-Net Univ.

  • Page 8: Configure The Interface In Software

    (same (same procedure for Lumikit LED), the interface is compatible with other software and drivers since these are also procedure for Lumikit LED), the interface is compatible with other software and drivers since these are also procedure for Lumikit LED), the interface is compatible with other software and drivers since these are also procedure for Lumikit LED), the interface is compatible with other software and drivers since these are also Lumikit Sistemas para Iluminação...

  • Page 9: Broadcast Mode

    IP address of the interface. By default the interface comes standard with the IP 192.168.0.30, which is the IP compatible with all software from Lumikit. There are two ways of configure the interface inside your software or controller:...
  • Page 10 In field “number of universes”, select 4, because the PRO X4 interface has 4 universes, if other setting is used, for example, if interface is configured for only 1 universe, fill 1 in this field; g) In field “DMX Universe”, fill 0,unless another initial DMX universe is used, anyway it also can be adjusted again in window “Interface settings”;...

  • Page 11: Unicast Mode

    In case the net is properly configured and the PING answering, the setting of the interfaces inside the software is simple, in software Lumikit SHOW (or Lumikit LED), do the following procedure: a) Click in the button “Interfaces”, at the top right side;...

  • Page 12: Network Speed (10M Pbs /100M Bps (Fast Ethernet ))

    For each universe an Art-Net server will be created, see in the example above the list (1), when clicking “OK” and returning to Lumikit SHOW or Lumikit LED main window the interface Art-Net LED must be on without blink, with this the configuration is finished.

  • Page 13: Interface Reset Interface Reset

    5. 5. 5. 5. Interface connection Interface connection Interface connection Interface connection The Lumikit PRO X4 and Lumikit PRO X4 RACK interface connection is simple: Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação | www.lumikit.com.br...

  • Page 14: The Pen Drive

    Drive In the Lumikit PRO X4 interface it is possible to connect a Pen Drive in the USB port, this Pen Drive can be used to record up to 20 programs, each program can have at most 30 minutes of Art-Net signal at 25 FPS.

  • Page 15: Considerations On Pen Drivers

    When connecting a Pen Drive to the interface, it will be checked if the file system is valid (FAT or FAT32), after the verification and if the folder does not already exists, a new folder named LUMIKIT will be created. In this folder all the programs recorded by the interface will be stored.

  • Page 16: Recording A Program In The Pen Drive

    The recording can also be made through the interface’s remote control app, check the next chapters of this manual. Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação | www.lumikit.com.br 16 16 16 16...

  • Page 17: Reproducing Programs From The Pen Drive

    It is not possible to delete a program directly through the interface, only by using the remote control app or by disconnecting the Pen Drive from the interface e connecting to a computer; the program can be deleted through Windows Explorer or MAC’s Finder directly from the LUMIKIT folder inside the Pen Drive. Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação...

  • Page 18: Firmware Update Firmware Update

    Remote control for Android and iOS Through the Lumikit PRO X4 RC app, available on the App Store (for iOS 8 or superior) and Google Play (for Android 4.0 or superior) it is possible to control remotely the Lumikit PRO X4 interface, as long as the interface and the cellphone or tablet are connected to the same Wi-Fi network as the interface.
  • Page 19 Pen Drive will be shown, when selecting a program, it will be deleted permanently from the Pen Drive. Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação | www.lumikit.com.br 19 19 19 19...

  • Page 20: Identification Label Identification Label

    Identification label The interface comes with an identification label, below is a copy in case the label is illegible or has worn off. 9 9 9 9 .1 .1 .1 .1 Lumikit PRO X4 Lumikit PRO X4 Lumikit PRO X4 Lumikit PRO X4 Lumikit Sistemas para Iluminação...

  • Page 21: Lumikit Pro X4 Rack

    All Lumikit interfaces have iso so so solation with All Lumikit interfaces have i lation with an opto an opto- - - - coupler coupler in in in in the logic circuit output.

  • Page 22: Grounding

    LOW SECURITY TO THE OPERATOR: RISK OF ELETRIC SHOCK! • See more about grounding on the internet: http://pt.wikipedia.org/wiki/Terra_(eletricidade) Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação | www.lumikit.com.br 22 22 22 22...

  • Page 23: Warranty

    Warranty Warranty The Lumikit PRO X4 and PRO X4 RACK interface has a 12 month warranty. The network cable and the integrated output circuits are not covered by the warranty, since they depend on client’s installation. An overload on the electrical system (lightning, short-circuits and other issues) that may damage the interface is not covered by the warranty as well.
  • Page 24 When in “Network Connection”, deactivate all the other connections so the software does not try to connect through another door the interface is not physically connected to. Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação | www.lumikit.com.br 24 24 24 24...

  • Page 25: Ess / Macosx

    Type “ping 192.168.0.30” in the Terminal to check if the communication is working, Turn off the Air-Port if a communication with the interface is not established. Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação Lumikit Sistemas para Iluminação | www.lumikit.com.br 25 25 25 25...

  • Page 26: Problems And Solutio

    Q: The interface does not turn on. A: In case the interface does not turn on, check the fuse, it should be a 250V / 1A fuse for Lumikit PRO X4 and 250V / 3A for Lumikit PRO X4 RACK, disconnect the interface from the electric network to avoid electric shocks while the fuse is being verified.
