3. Attach the bottom bracket to the enclosure by inserting bolts through the flange of the enclosure and into the
bracket, tightening bolts with a 7/16" hex socket (Fig. 3, pg. 3).
4. Thread the second wormgear quick release strap through the slots on the back of the bottom mounting
bracket (Fig. 4, pg. 3).
5. Mount enclosure onto the top bracket by inserting bolts through flange of the enclosure and into the bracket,
tightening bolts with a 7/16" hex socket (Fig. 3, pg. 3).

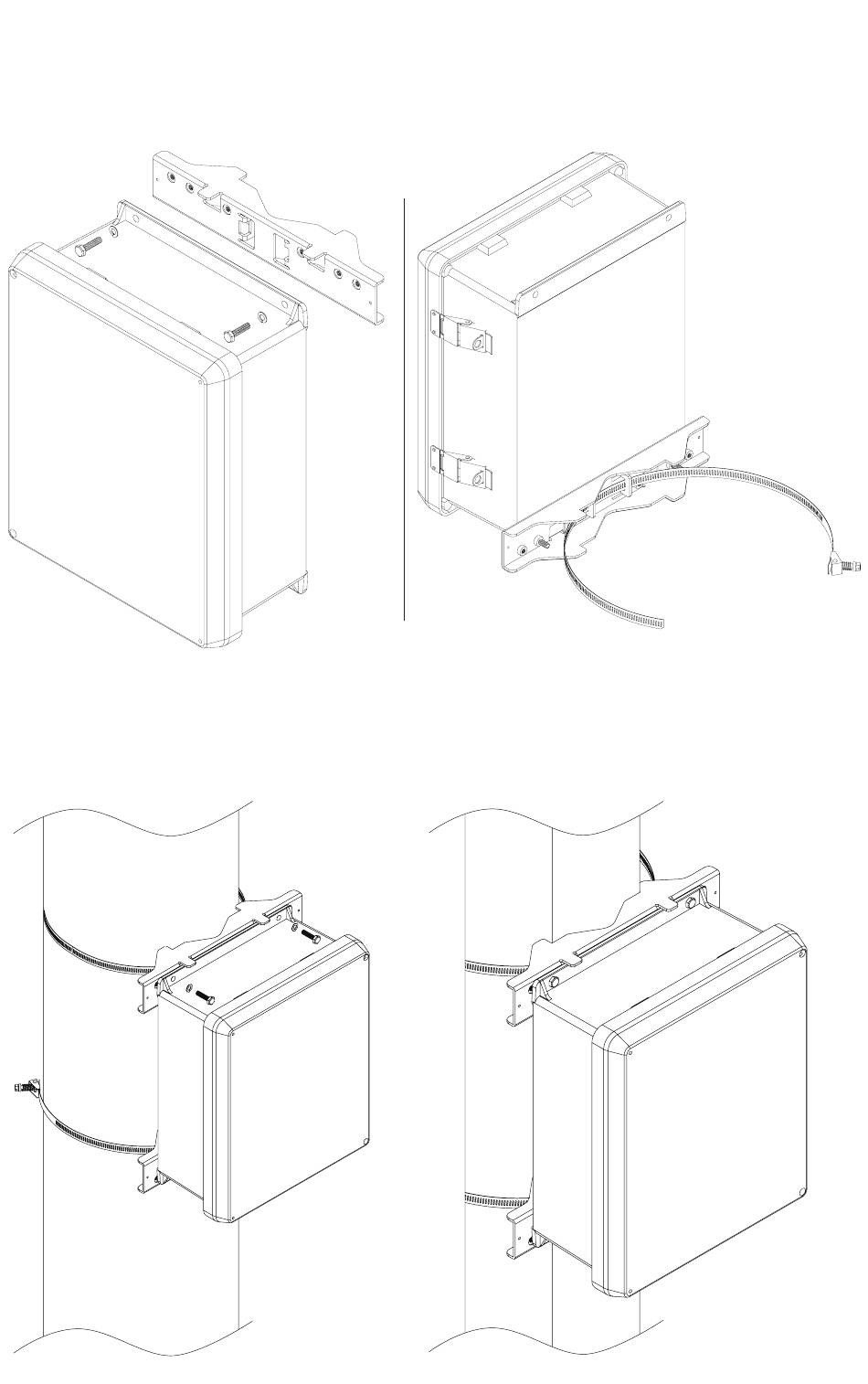

Fig. 3
6. Tighten the straps of the bottom bracket down by sliding the open end of the strap through the locking mechanism
on the strap, then tighten screw with flat head screwdriver or 5/16" hex socket driver (Fig. 5, pg. 3).
7. Clip excess straps.
Fig. 5 - 2" to 8"(50.8mm to 203.2mm)
diameter round pole
Pole Mount Kits
Fig. 5a - 5" (127mm) square pole
Fig. 4
